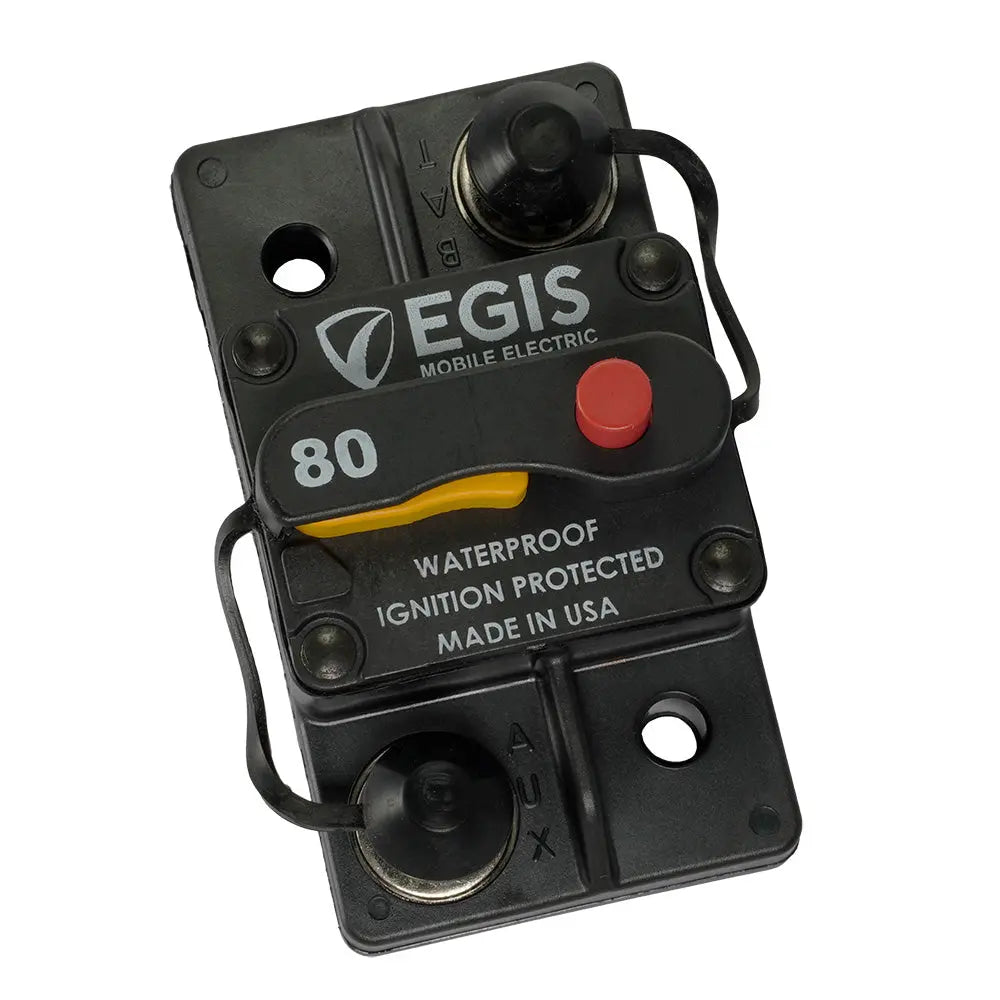

Egis Mobile Electric 80A Surface Mount Circuit Breaker - 285 Series

80A Surface Mount Circuit Breaker - 285 Series

This 80A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 80
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 80A Surface Mount Circuit Breaker from the 285 Series offers reliable protection for electrical circuits in demanding environments. Designed to prevent damage caused by short circuits and over-current loads, this circuit breaker ensures the safety and longevity of your wiring and connected components. Its compact form factor allows for easy installation in tight spaces, making it ideal for applications near battery systems regardless of location. The dual functionality of automatic circuit protection combined with manual on/off switching provides a versatile solution for both maintenance and operational needs.
Constructed to withstand harsh conditions, this breaker is sealed against dust and water ingress, rated at IP67, ensuring dependable performance over the lifespan of your electrical system. It supports high voltage DC applications up to 48V, with the capability to handle 12V and 24V systems while offering advanced protection for 36V and 48V configurations. The high electrical and manual switching endurance of 6,000 cycles at full current guarantees durability and reliable operation over time. With a maximum interrupt current of 5,000 amps at 16VDC and 3,000 amps at 28VDC, this breaker safeguards large battery banks and high-power circuits effectively.
Manufactured in the USA, the Egis 80A Surface Mount Circuit Breaker features integrated terminal insulators to prevent accidental shorts, stainless steel hardware and serrated flange nuts for corrosion and vibration resistance, and high-temperature rated components suitable for various installation environments. The product is backed by a 4-year warranty, reflecting Egis Mobile Electric's confidence in its quality and performance. Whether used for automotive, marine, or renewable energy systems, this circuit breaker offers a durable, high-performance solution designed to meet rigorous safety standards and operational demands.

Features:

• Sealed against dust and water intrusion for reliable long-term protection

• Supports high voltage DC applications up to 48V with advanced circuit protection

• High switching endurance of 6,000 cycles at full current ensures durability

• Provides high interrupt current capacity to safeguard large battery banks

• High visibility ON/OFF controls for easy operation

• Integrated terminal insulators prevent accidental shorts

• Corrosion-resistant stainless steel hardware and serrated flange nuts for harsh environments

• Made in the USA with high-quality components
