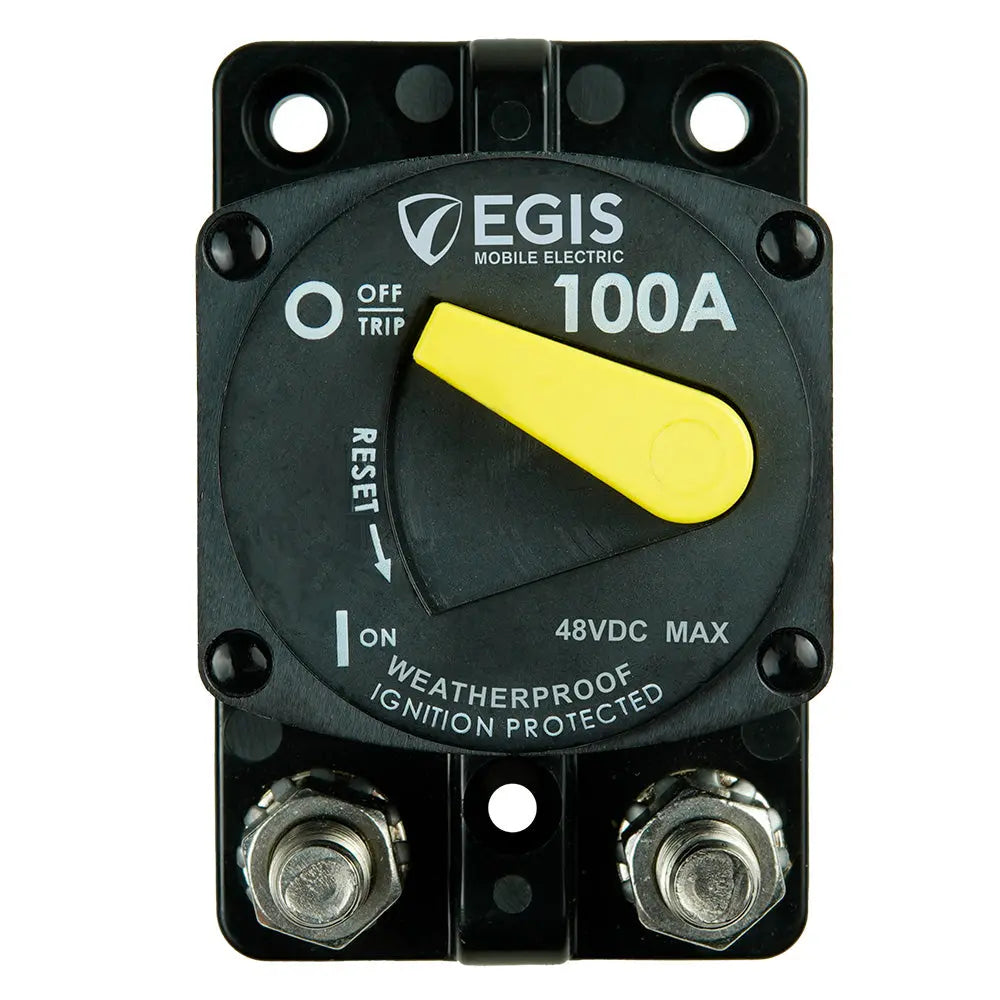

Egis Mobile Electric 87 Series 100A Surface Mount Circuit Breaker with IP66 Sealing

100A Surface Mount 87 Series Circuit Breaker

This 100A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 87 Series 100A Surface Mount Circuit Breaker is a reliable solution designed to protect electrical systems from short circuits and over-current conditions. Suitable for a variety of applications, this circuit breaker combines automatic circuit protection with manual on/off switching, providing a compact and versatile device for load circuit management. Its ability to mount adjacent to battery systems regardless of location makes it ideal for vehicular, marine, and remote power setups, ensuring easy maintenance and circuit isolation when needed. Constructed with high-quality components, it offers long-lasting performance and peace of mind for users managing complex electrical configurations.

This circuit breaker features an IP66 rating, sealing it against dust and water intrusion for dependable operation in harsh environments. Its high voltage rating of 48 Vdc supports 12, 24, 36, and 48 Vdc applications, making it suitable for a wide range of power systems. The high electrical and manual switching endurance of 2,000 cycles at full current ensures durability over extended use. Additionally, its high interrupt current capacity—5,000 amps at 14 VDC and 3,000 amps at 28 VDC—provides robust safety measures for large battery banks with substantial power availability. The Egis 87 Series is backed by a 4-year warranty, reflecting its quality and reliability in demanding conditions.

Designed for easy operation, the circuit breaker includes high visibility ON/OFF controls, allowing quick status assessment. Reinforced mounting tabs provide structural integrity, capable of withstanding vibrations and mechanical stresses common in mobile and industrial applications. The stainless steel hardware and serrated flange nuts offer corrosion and vibration resistance, ensuring long-term performance in challenging environments. Proudly manufactured in the USA, this circuit breaker meets high standards of quality and durability. Whether used for automotive, marine, or renewable energy systems, the Egis 100A Surface Mount 87 Series Circuit Breaker delivers dependable circuit protection with advanced features and rugged construction.

Features:

• Sealed IP66 enclosure protects against dust and water intrusion for reliable operation in harsh environments

• Supports 48 Vdc high voltage applications, suitable for 12, 24, 36, and 48 VDC systems

• High manual and electrical switching endurance with 2,000 cycles at full current

• High interrupt capacity of 5,000 amps at 14 VDC and 3,000 amps at 28 VDC for large battery banks

• Reinforced mounting tabs for secure installation in vibration-prone environments

• Stainless steel hardware and serrated flange nuts resist corrosion and vibration

• High-visibility ON/OFF controls for quick status checks

• Made in the USA with durable, high-quality components
