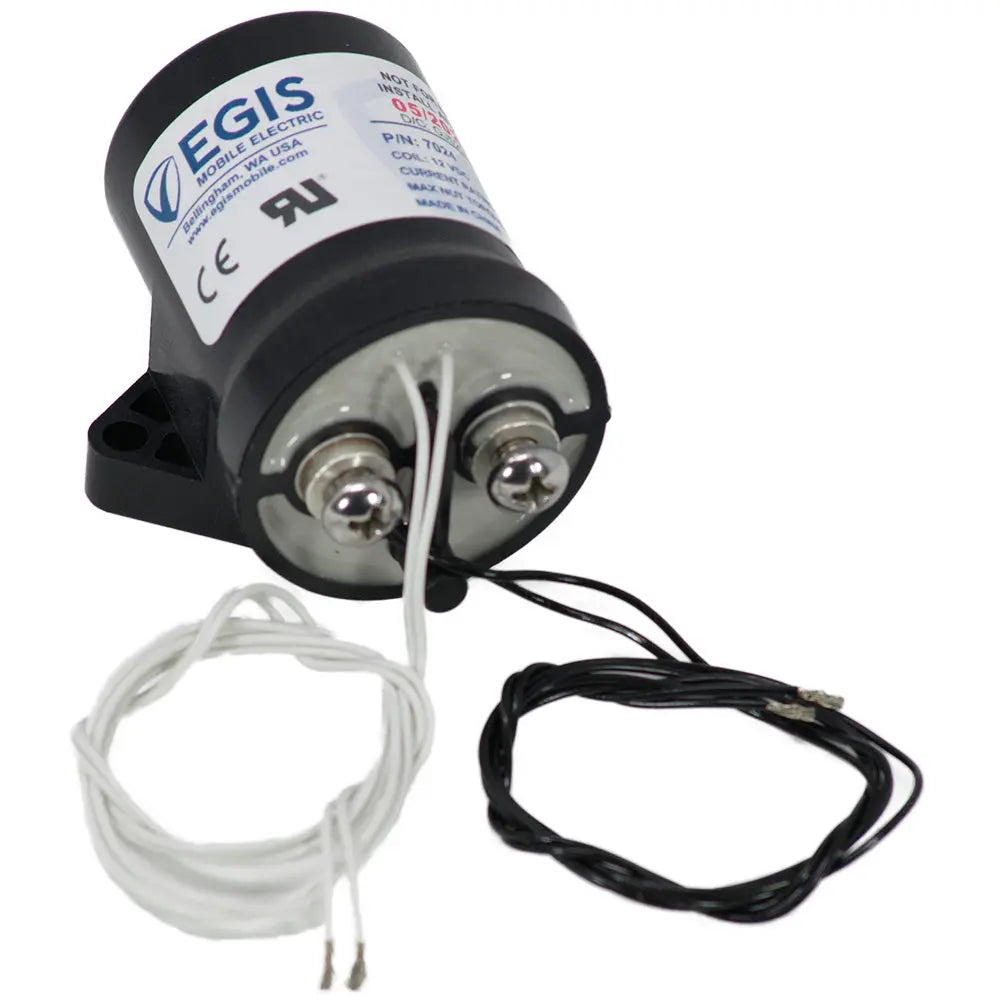

Egis Mobile Electric Contactor 100A, 12V with Auxiliary Contacts

Contactor 100A, 12V with Aux Contacts

This 100A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.

Applications:

• Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust moisture Intrusion.
• High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.
• Get positive confirmation of the relay on/off state with optional auxiliary contacts that support remote status indication.

Features:

• Ignition is protected and safe for installation in closed compartments with potential explosive gases
• High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V and 100,000 cycles at 100A / 14V
• High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
• Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
• 4 Year Industry Leading Warranty

Specifications:

• Continuous Current (Amps): 100
• Operation Control Voltage: 8-16 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Minimum Operate Temp. (Deg C): -40 C
• Max Operate Temp. (Deg C): 85

Focal Features:

Sealed Enclosure

Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.

18-8 Stainless Steel Self-Locking Hardware

It resists corrosion and ensures long-term connection reliability with premium hardware.

Easy Mounting

Reinforced mounting holes provide secure installation and easy attachment for the installer.

Remote Status Support

Optional auxiliary contacts that support remote status indication.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric Contactor Part Number 7024 is a robust 100-ampere switch designed for reliable remote control of high-current loads in various applications. Engineered with a hermetically sealed enclosure, this contactor provides excellent protection against dust, moisture, and other environmental factors, ensuring long-lasting performance. Its high-temperature resistant materials and stainless steel hardware make it suitable for installation in engine compartments and other demanding environments. The contactor supports control voltages of 8-16 VDC, making it compatible with 12V and 24V systems, while also supporting higher switching voltages up to 48V and beyond. It features a side mount design for straightforward installation and reinforced mounting holes for added security. This device's high electrical switching endurance—up to 6,000 cycles at 100A / 350V and 100,000 cycles at 100A / 14V—ensures dependable operation over extended use. Additionally, it possesses a high interrupt current capability, safely breaking in situations with locked starters up to 1,250A at 14VDC. The Egis contactor includes optional auxiliary contacts for remote status indication, providing positive confirmation of the on/off state to enhance system monitoring. Its ignition protection compliance (ISO-8846 / UL 1500) and ingress protection ratings (IP67/IP69K) make it suitable for challenging environments, including applications with potential explosive gases. A four-year industry-leading warranty underscores its durability and manufacturer confidence. Whether used in vehicle, industrial, or marine systems, this contactor's sealed design, corrosion-resistant hardware, and reliable performance make it an essential component for high-current switching needs.

Features:

• Hermetically sealed enclosure protects against dust and moisture intrusion

• High-temperature resistant materials suitable for engine compartments

• Stainless steel self-locking hardware resists corrosion and ensures long-term reliability

• Reinforced mounting holes facilitate secure and easy installation

• Optional auxiliary contacts support remote status indication

• Supports control voltages of 8-16 VDC for versatile system integration

• High electrical switching endurance up to 6,000 cycles at 100A / 350V

• Exceptional interrupt current capacity up to 1,250A at 14VDC for safety in locked starter situations

• Certified ignition protection (ISO-8846 / UL 1500) and ingress protection ratings (IP67/IP69K)

• Designed for demanding environments with a temperature range from -40°C to 85°C
