Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.
Applications:
Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables..
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

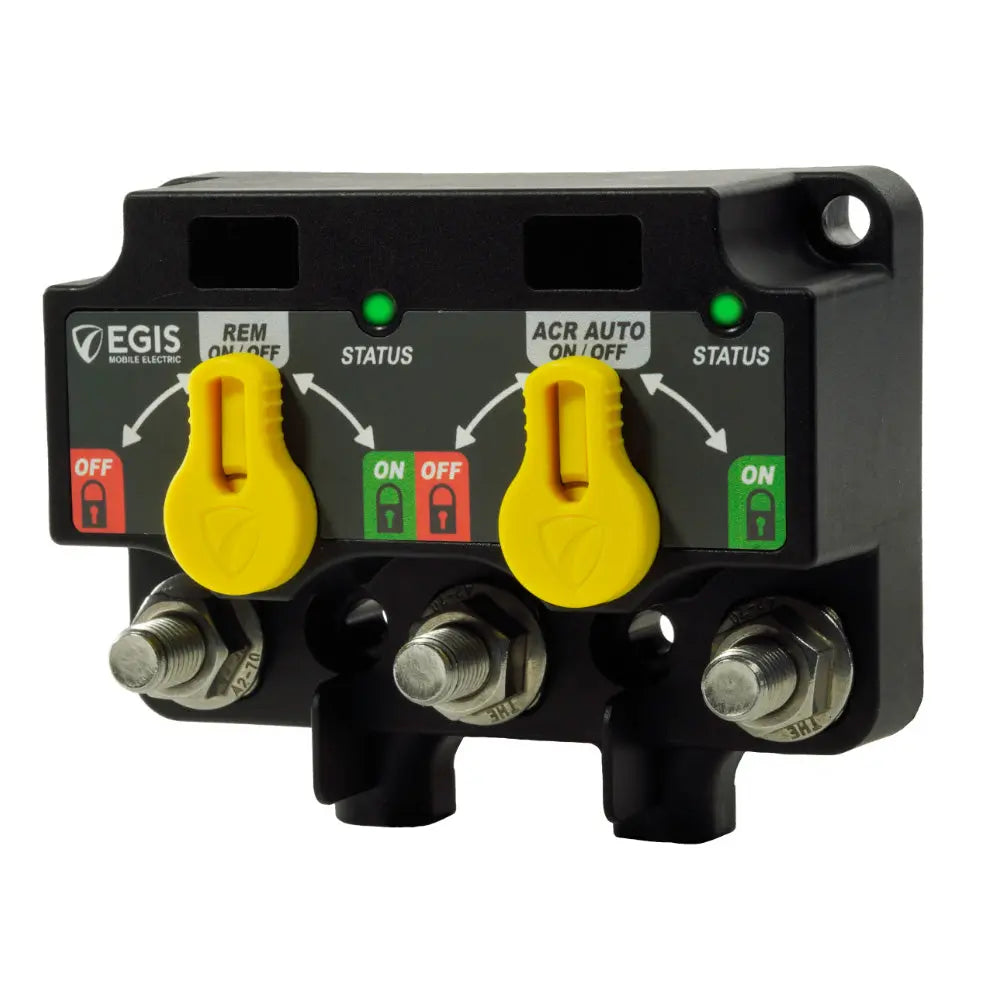

The Egis Mobile Electric Dual XD Flex 2 relay with knobs offers a robust and versatile solution for high-current switching and charge management applications. Designed with an IP67/IP6K9K sealing, this relay is built to withstand harsh environments, making it suitable for installation in challenging conditions. Its high-temperature electronics and stainless steel cable lug studs ensure durability and reliable performance in demanding automotive and industrial settings. The large mounting holes support various hardware configurations, facilitating straightforward installation across a range of systems.
The relay features an intuitive manual control option, allowing operators to easily override automatic functions and clearly identify the relay's current state—whether locked off or locked on—an advantage not commonly found in competitive products. Its simple dip switch programmability enables customization for specific OEM or installer requirements, providing flexibility without adding complexity. By incorporating advanced bi-stable solenoid technology and multiple solenoid assemblies, the Egis Dual XD Flex 2 reduces mounting space and weight by up to 75%, optimizing vehicle or system layouts while maintaining high power handling capacity.
Compatibility with legacy systems is ensured through plug-and-play design, with options for single, dual, or triple relays featuring DTM/ATM connectors that are pin-for-pin compatible with ML Series bi-stable relays. The relay's low off-state current—up to 95% less than comparable solutions—reduces power consumption and heat generation, contributing to overall system efficiency. This device effectively replaces multiple high-current relays, consolidating functions such as multi-battery switching and charge sharing into a single, space-saving module. Its expandable design supports link and cross-link busbars, enabling seamless integration with additional dual, triple, or single relays to accommodate complex multi-battery systems, making it ideal for fleet, RV, and off-road applications.
Features:
Bullet-proof construction: Sealed to IP67/IP6K9K with high-temperature electronics and stainless steel cable lug studs
Intuitive manual control: Simplifies operation with clear manual override states
Simple programmability: Dip switches allow for flexible relay configuration
Space and weight reduction: Advanced bi-stable solenoid design cuts mounting space and weight by up to 75%
Plug and play compatibility: Supports legacy systems with DTM/ATM connectors, pin-for-pin with ML Series relays
Low off-state current: Reduces power draw by up to 95% compared to similar products
Multi-function replacement: Consolidates multi-battery switching and charge management into a single module
Expandable design: Supports link and cross-link busbars for additional relays and larger systems
