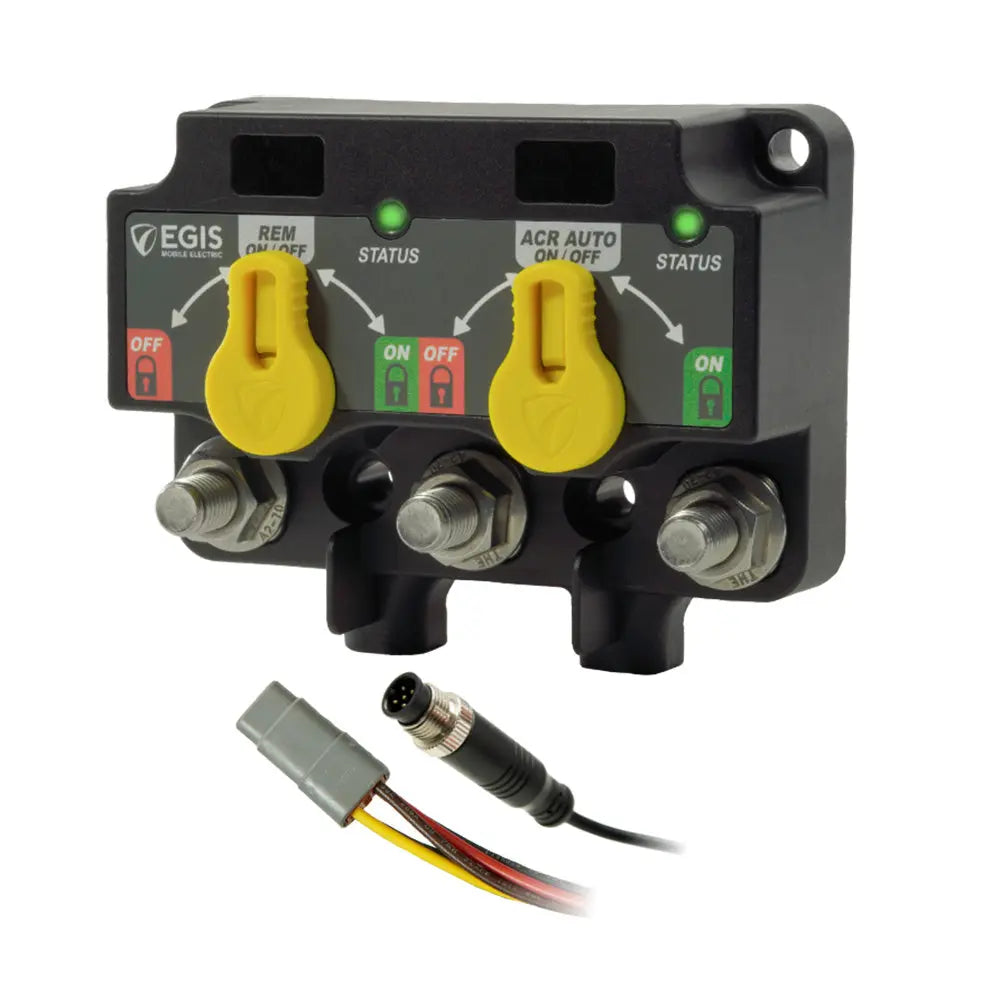

Egis Mobile Electric Dual XD NMEA 2000 Relay with Knobs - 8 Position DT

Dual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
• Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

The Egis Mobile Electric Dual XD NMEA 2000 relay is designed for robust marine electrical systems, offering seamless integration and reliable performance. Its bullet-proof construction features a sealed IP67/IP6K9K rating, allowing it to withstand harsh environmental conditions. High-temperature electronics and stainless steel cable lug studs facilitate mounting in any location, while large mounting holes support standard hardware such as 1/4-20 or M6 bolts. This durable design ensures long-term operation in demanding marine applications. The relay supports up to 500 amps of continuous current and 1,600 amps of cranking capacity per switch, making it suitable for all standard marine electrical systems. Its advanced bi-stable solenoid design and multiple assemblies reduce overall system space requirements by 35-75%, and the lightweight construction minimizes installation weight. The device also features a simple dip switch programming interface, providing significant flexibility for OEMs and installers to configure relay functions easily. Additionally, it offers an intuitive manual control option, allowing operators to override automatic functions and monitor the relay's state—an exclusive feature not typically found in competing products. The Egis Dual XD relay supports NMEA 2000 integration, enabling control and monitoring of switch status and battery voltage directly through marine communication networks. It offers flexible control options, including discrete analog inputs, for added versatility in system design. The relay's design helps eliminate dead start batteries by sharing charging between two batteries and isolating them when no charge sources are available. Expandability is straightforward with link and cross-link busbars, supporting configurations for two or three battery systems with standard interconnect accessories. This relay is ideal for marine applications requiring high current capacity, space-efficient design, and reliable network integration, making it a versatile and essential component for advanced marine electrical systems.

Features:

• Bullet-proof construction with IP67/IP6K9K sealing, high-temperature electronics, and stainless steel cable lug studs.

• Supports up to 500A continuous current and 1,600A cranking capacity per switch.

• Intuitive manual control with state monitoring and override functions.

• Simple dip switch programming for flexible relay configuration.

• High efficiency with 90-95% less off-state current compared to competitors.

• Seamless NMEA 2000 integration for switch control, status monitoring, and battery voltage reading.

• Flexible control options via NMEA 2000 or discrete analog inputs.

• Compact design reduces mounting space by up to 75% and minimizes weight.

• Eliminates dead start batteries by sharing charging and isolating batteries when needed.

• Expandable with link and cross-link busbars for multi-battery system configurations.
