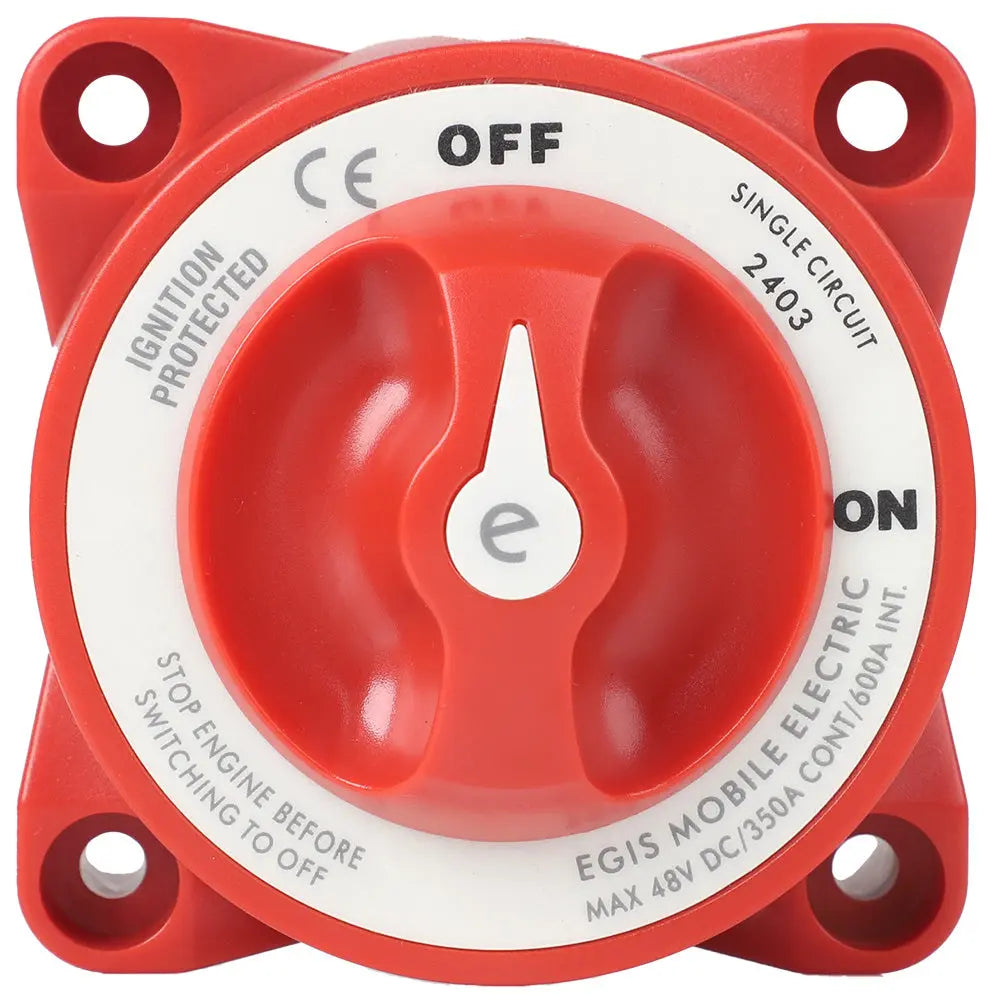

Egis Mobile Electric E-Series 350A Battery Switch Off/On for Reliable Circuit Control

E-Series 350A Battery Switch Off/On

Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8 (M10)
• Mounting Holes: #1/4 (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 3-5/8 Diameter
• Cable Size to Meet Rating: 4/0 AWG

The Egis Mobile Electric E-Series 350A Battery Switch Off/On is designed for durable and reliable circuit management in demanding environments. Featuring a sealed construction, this switch provides protection against dust and water intrusion, ensuring consistent performance over the lifespan of your electrical system. Its ignition-protected design makes it safe for installation within closed compartments containing potentially explosive gases, adhering to SAE J1171 and ISO 8846 standards. The switch's robust stainless steel hardware, serrated flange lock nuts, and high-temperature materials enable it to withstand harsh conditions, including high vibrations and extreme environments.

Flexible mounting options allow for versatile installation configurations, accommodating various setup requirements. The switch supports a maximum voltage of 48 VDC for single circuits and 32 VDC for selector or dual circuits, with a live switching rating of 25 amps. The stud size is 3/8-16 with a terminal stud torque of 140 in-lbs to ensure secure connections. It accepts 3/8-inch (M10) ring terminals and is compatible with mounting holes measuring approximately 3-5/8 inches in diameter, with mounting screw sizes of #1/4 inch (M6). Designed to handle heavy-duty applications, the Egis E-Series switch is ideal for marine, industrial, and RV electrical systems requiring high current management.

Constructed with high-quality, corrosion-resistant materials, this switch's rugged design guarantees long-term performance in challenging environments. Its compact size and versatile mounting options make it suitable for installation in various vehicle or equipment compartments, providing a reliable on/off control for essential electrical circuits. Whether used in marine vessels, industrial machinery, or recreational vehicles, the Egis E-Series 350A Battery Switch ensures safety, durability, and efficient circuit management across multiple industries.

Features:

• Sealed against dust and water intrusion for reliable operation in harsh environments

• Ignition protected design compliant with SAE J1171 and ISO 8846 standards

• Robust stainless steel hardware and serrated flange lock nuts resist loosening in high-vibration settings

• Flexible mounting options support various installation configurations

• High-temperature resistant construction suitable for demanding applications

• Maximum voltage of 48 VDC for single circuits and 32 VDC for dual circuits

• Supports 25-amp live switching for high-current applications

• Accepts 3/8-inch (M10) ring terminals with a torque of 140 in-lbs

• Designed for easy installation with 3-5/8-inch mounting holes and #1/4-inch mounting screws

• Built for heavy-duty use in marine, industrial, and recreational vehicle systems
