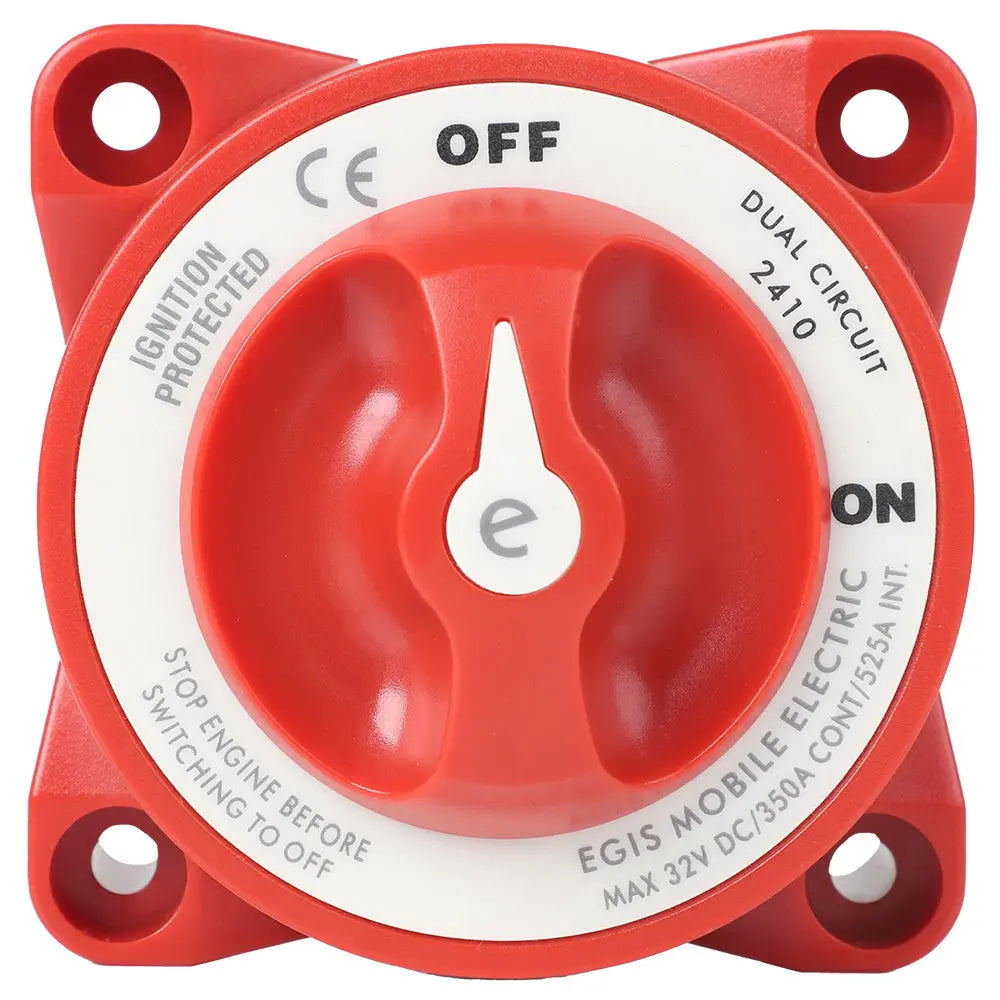

Egis Mobile Electric E-Series 350A Dual Circuit Battery Switch Off/On

E-Series 350A Dual Circuit Battery Switch Off/On

Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8 (M10)
• Mounting Holes: #1/4 (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 3-5/8 Diameter
• Cable Size to Meet Rating: 4/0 AWG

The Egis Mobile Electric E-Series 350A Dual Circuit Battery Switch Off/On is designed to provide reliable and secure electrical system control in demanding environments. Its sealed construction offers superior protection against dust and water intrusion, ensuring long-term durability and consistent performance. This feature makes it suitable for marine, automotive, and industrial applications where environmental resistance is critical. The switch is ignition protected, meeting SAE J1171 and ISO 8846 standards, enabling safe installation in compartments with potentially explosive gases without compromising safety or functionality. Its robust construction includes stainless steel hardware and serrated flange lock nuts, which enhance resistance to cable terminal loosening, especially in high-vibration conditions. The flexible mounting options allow for various installation configurations, simplifying integration into diverse systems and spaces. Designed for harsh environments, this battery switch features high-temperature materials to withstand extreme conditions, ensuring reliable operation over time. The switch supports a maximum voltage of 48 Vdc for single circuit applications and 32 Vdc for dual circuit or selector configurations, with a rated live switching capacity of 25 amps. Its stud size and thread of 3/8-16, along with terminal acceptance for 3/8-inch (M10) ring terminals, facilitate secure and straightforward wiring. The mounting holes are compatible with #1/4-inch (M6) screws for versatile installation. Overall, the Egis E-Series 350A Battery Switch is an essential component for professionals seeking a durable, safe, and efficient power control solution for demanding applications.

Features:

• Sealed against dust and water intrusion for reliable long-term performance

• Ignition protected, compliant with SAE J1171 and ISO 8846 standards, safe for explosive atmospheres

• Stainless steel hardware and serrated flange lock nuts for high-vibration environments

• Flexible mounting options for various installation configurations

• High-temperature resistant materials suitable for harsh environments

• Maximum voltage of 48 Vdc for single circuit applications

• Maximum voltage of 32 Vdc for dual circuit or selector configurations

• Stud size and thread of 3/8-16 for secure connections

• Terminal stud torque of 140 in-lbs (15.8 N-m)

• Accepts 3/8-inch (M10) ring terminals for wiring ease

• Mounting holes compatible with #1/4-inch (M6) screws

• Live switching capacity rated at 25 amps
