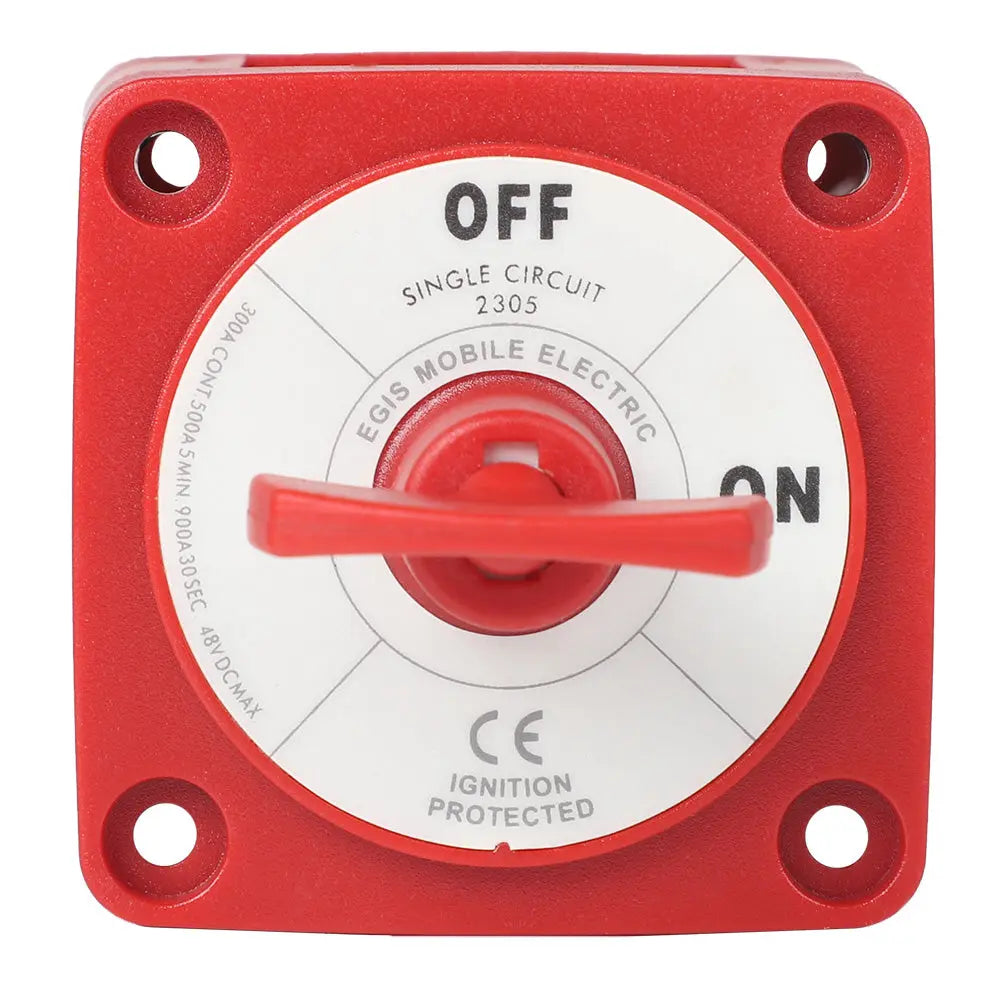

Egis Mobile Electric M-Series 300A Battery Switch Off/On Key Actuator

M-Series 300A Battery Switch Off/On Key Actuator

Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8-16
• Terminal Stud Torque: 120 in-lbs (13.6 N-m)
• Ring Terminal Size Acceptance: 3/8 (M10)
• Mounting Holes: #10 Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 2-5/8 / 2-5/16
• Cable Size to Meet Rating: 4/0 AWG

The Egis Mobile Electric M-Series 300A Battery Switch Off/On Key Actuator is designed for reliable circuit control in demanding environments. Featuring a sealed construction, it offers protection against dust and water intrusion, ensuring long-term durability and consistent performance in harsh conditions. Its ignition-protected design makes it safe for installation in closed compartments containing potentially explosive gases, providing peace of mind for critical applications. The switch's serrated flange lock nuts enhance resistance to cable terminal loosening, especially in high-vibration environments, maintaining secure connections during operation. Its flexible mounting options allow for various configurations, simplifying installation across a range of vehicle or equipment setups. Built with stainless steel hardware and high-temperature materials, the switch is engineered to withstand extreme environmental conditions, from exposure to moisture to temperature fluctuations. This switch features a maximum voltage of 48 Vdc for single-circuit configurations and 32 Vdc for dual or selector circuits, with a robust 25 Amp live switching rating. The stud size is 3/8-16 with a terminal stud torque of 120 in-lbs, accommodating 3/8 (M10) ring terminals. Mounting is straightforward with #10 screw holes, and the panel or bulkhead mounting holes measure 2-5/8 and 2-5/16 inches respectively. Designed to handle cables up to 4/0 AWG, this switch ensures a secure and efficient electrical connection, making it ideal for marine, industrial, or heavy-duty vehicle applications. Overall, the Egis M-Series 300A Battery Switch combines safety, durability, and versatile installation options to meet the demanding needs of professional and recreational vehicle systems alike.

Features:

• Sealed against dust and water intrusion for reliable long-term operation

• Ignition protected design suitable for explosive gas environments

• Serrated flange lock nuts improve resistance to terminal loosening in high-vibration settings

• Flexible mounting options for various installation configurations

• Constructed with stainless steel hardware and high-temperature materials for harsh environments

• Maximum voltage: 48 Vdc (single circuit), 32 Vdc (dual/selector circuit)

• Stud size and thread: 3/8-16 with 120 in-lbs terminal torque

• Compatible with 3/8 (M10) ring terminals

• Mounting holes designed for #10 screws and panel/bulkhead mounting

• Live switching rated at 25 Amps for reliable circuit control
