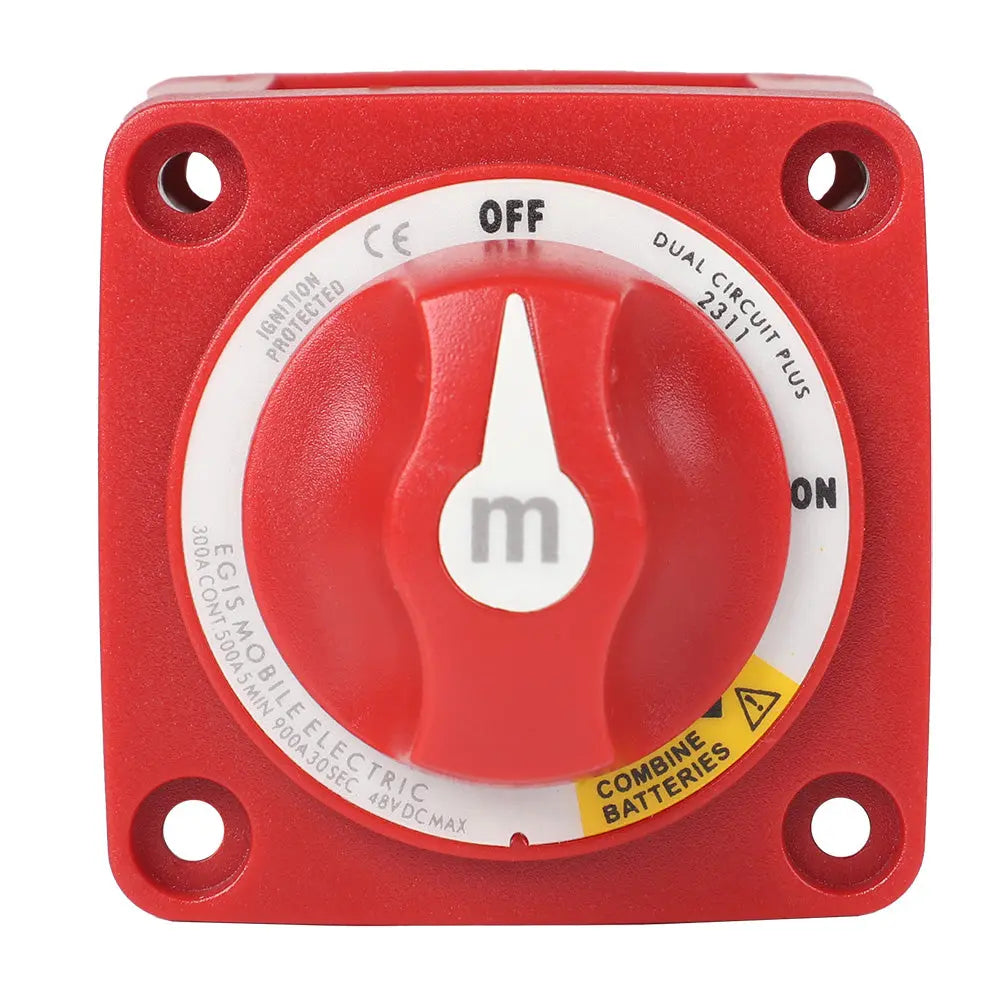

Egis Mobile Electric M-Series 300A Dual Circuit Battery Switch with Combine Battery Switch

M-Series 300A Dual Circuit Battery Switch with Combine Battery Switch

Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8-16
• Terminal Stud Torque: 120 in-lbs (13.6 N-m)
• Ring Terminal Size Acceptance: 3/8 (M10)
• Mounting Holes: #10 Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 2-5/8 / 2-5/16
• Cable Size to Meet Rating: 4/0 AWG

The Egis Mobile Electric M-Series 300A Dual Circuit Battery Switch with Combine Battery Switch provides reliable and flexible battery management for demanding vehicle applications. Designed for durability, this switch is sealed against dust and water intrusion, ensuring long-term performance even in harsh environments. Its robust construction makes it suitable for installation in closed compartments containing potentially explosive gases, thanks to its ignition protection rating compliant with SAE J1171 and ISO 8846 standards. The switch features stainless steel hardware and high-temperature materials that withstand extreme conditions, making it ideal for demanding automotive and marine applications. The serrated flange lock nuts enhance resistance to cable terminal loosening in high-vibration settings, ensuring secure connections during operation. Flexible mounting options allow for various configurations, simplifying installation in tight or unconventional spaces. The switch supports a maximum voltage of 48 Vdc for single circuits and 32 Vdc for dual circuits, with a live switching rating of 25 amps, suitable for controlling high-current circuits. A stud size of 3/8-16 with a terminal stud torque of 120 in-lbs ensures solid electrical connections. Its compatibility with 3/8-inch (M10) ring terminals and mounting holes designed for #10 screws provide versatility for different wiring and mounting requirements. Overall, the Egis M-Series 300A Battery Switch offers a dependable solution for managing multiple battery circuits, providing safety, durability, and installation flexibility in challenging environments.

Features:

• Sealed design: Protects against dust and water intrusion for reliable long-term operation

• Ignition protected: Safe for installation in compartments with explosive gases

• Stainless steel hardware: Ensures durability in harsh environments

• Serrated flange lock nuts: Prevent cable terminal loosening in high-vibration settings

• Flexible mounting options: Facilitate various installation configurations

• High-temperature materials: Withstand demanding operational conditions

• Maximum voltage (single circuit): 48 Vdc

• Maximum voltage (dual circuit): 32 Vdc

• Stud size and thread: 3/8-16

• Terminal stud torque: 120 in-lbs

• Ring terminal acceptance: 3/8 (M10)

• Live switching capacity: 25 Amps

• Mounting hole compatibility: #10 screw

• Mounting hole size: 2-5/8 and 2-3/16 inches

• Cable size compatibility: Up to 4/0 AWG
