Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
Total Continuous Current Amps: 500
Max MIDIAMI Fuse Value (Amps): 200
Ingress Protection Rating: IP67
Ignition Protected (SEA J1171) Yes
Output Stud Size: M6
Input Stud Size: M8

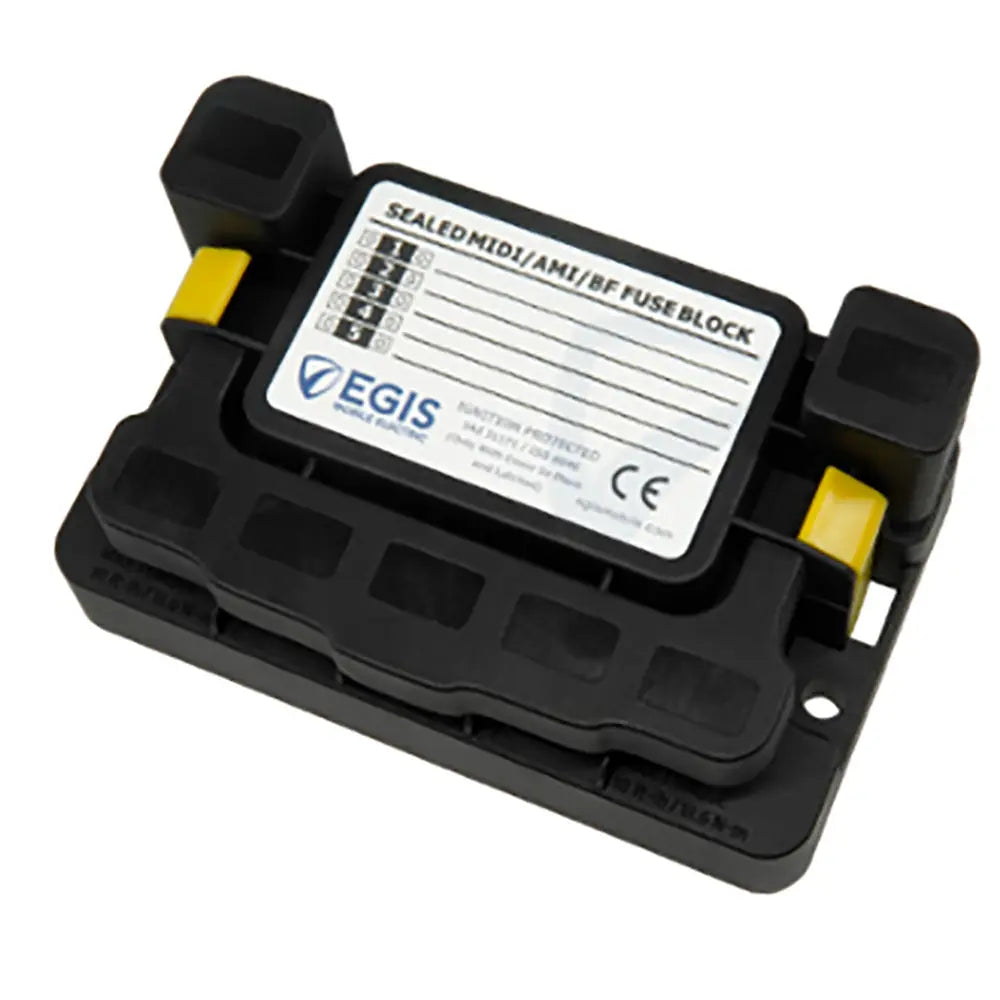

The Egis Mobile Electric MIDI 5x Fuse Block with Sealed Cover is designed for reliable protection in demanding marine and mobile power applications. Constructed with sealed marine-grade materials, this fuse block supports five MIDI/AMI/BF type fused outputs, providing an efficient solution for managing multiple circuits. Its robust construction ensures protection against environmental elements with an ingress protection rating of IP67, making it suitable for harsh conditions. The sealed cover stores two spare fuses and four screws, facilitating quick replacements and maintenance. An easy-to-operate latching mechanism secures the cover firmly during operation, preventing accidental dislodgement. The fuse block is expandable with dual, triple, and quad link busbars, allowing seamless integration with other Egis Mobile Electric power management devices for comprehensive switching and protection solutions. Its bullet-proof design features high-temperature resistant materials, Gore-Tex venting for safe mounting in any orientation, and stainless steel cable lug studs for durability. The large mounting holes accept standard 1/4-20 or M6 hardware, simplifying installation in various setups. It supports a total continuous current of 500 amps, with a maximum fuse rating of 200 amps per output, making it suitable for high-current applications. The input and output studs are M8 and M6 respectively, ensuring secure connections. This fuse block is ignition protected per SEA J1171 standards, providing added safety in engine and vehicle environments. Its compact size and high-performance features make it an essential component for marine, RV, and industrial power systems, offering dependable circuit protection with flexible expansion options for future upgrades.
Features:
Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
Protects circuits from accidental short circuits and overload events
Expandable with dual, triple, and quad link busbars for plug-and-play installation
High ingress protection rating of IP67 for durability in harsh environments
Constructed with high-temperature materials and Gore-Tex vent for versatile mounting
Includes sealed protective cover with spare fuses and screws for easy maintenance
Stainless steel cable lug studs and large mounting holes for secure and flexible installation
Supports a continuous current of 500 amps with a maximum fuse value of 200 amps per output
Ignition protected according to SEA J1171 standards for safety in engine applications
