High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features:
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 100
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

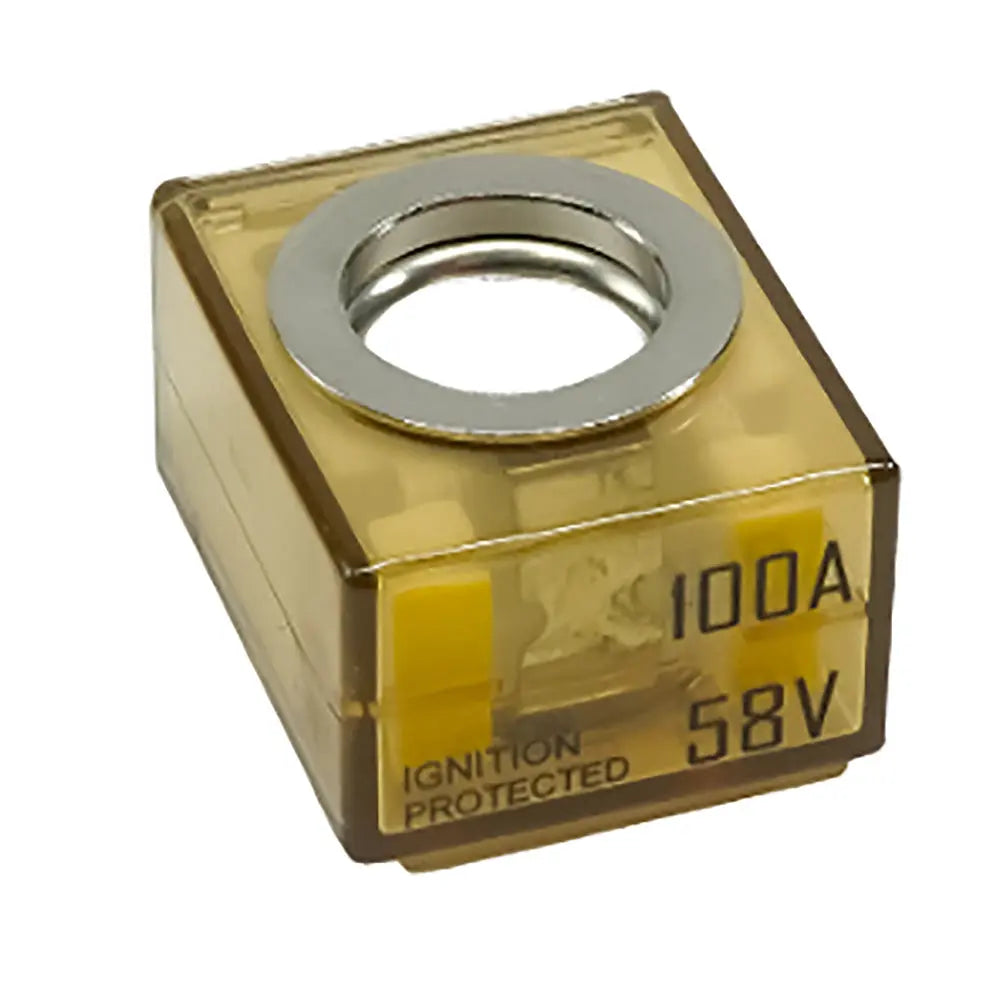

The Egis Mobile Electric MRBF Terminal Fuse with a 100 Amp rating offers reliable circuit protection for a wide range of electrical applications in marine, automotive, and heavy-duty vehicle systems. Designed with a transparent body, this fuse provides an easy visual indication of its status, allowing quick assessment without the need for removal. Its ignition-protected construction complies with SAE J1171 and ISO 8846 standards, making it safe for installation in enclosed compartments with potentially explosive gases. The fuse's high interrupt rating ensures it can safely handle large current surges, making it ideal for protecting circuits connected to substantial battery banks with significant available power. Its robust design includes shock and vibration resistance, ensuring durability in harsh environments, and the IP66 sealing protects against dust and water intrusion, maintaining reliable performance over time. Supporting nominal voltages from 12V to 48V, this fuse is suitable for a variety of DC systems, providing dependable circuit protection for over-current and short-circuit events, thereby preventing wire insulation damage and electrical fires. The Egis MRBF fuse is built to meet demanding standards and backed by a four-year warranty, giving confidence in its long-term reliability and safety. Whether used in marine, automotive, or off-road electrical systems, this fuse combines safety, visibility, and durability in a compact package that simplifies maintenance and enhances system reliability.
Features:
Transparent design allows quick visual inspection of fuse status
Ignition-protected SAE J1171 and ISO 8846 compliance ensures safe installation in hazardous environments
High interrupt rating satisfies ABYC requirements for DC main circuit protection on large battery banks
Color-coded for easy identification of amperage ratings
Protects electrical circuits from short circuits and over-current loads, preventing wire insulation overheating
High interrupt current safely manages large power surges in battery banks
Harsh environment design with shock and vibration resistance ideal for marine and vehicle systems
Sealed against dust and water ingress with an IP66 rating for reliable long-term operation
Supports nominal voltages from 12V to 48V DC, suitable for various applications
Four-year warranty ensures product reliability and customer satisfaction
