High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 200
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

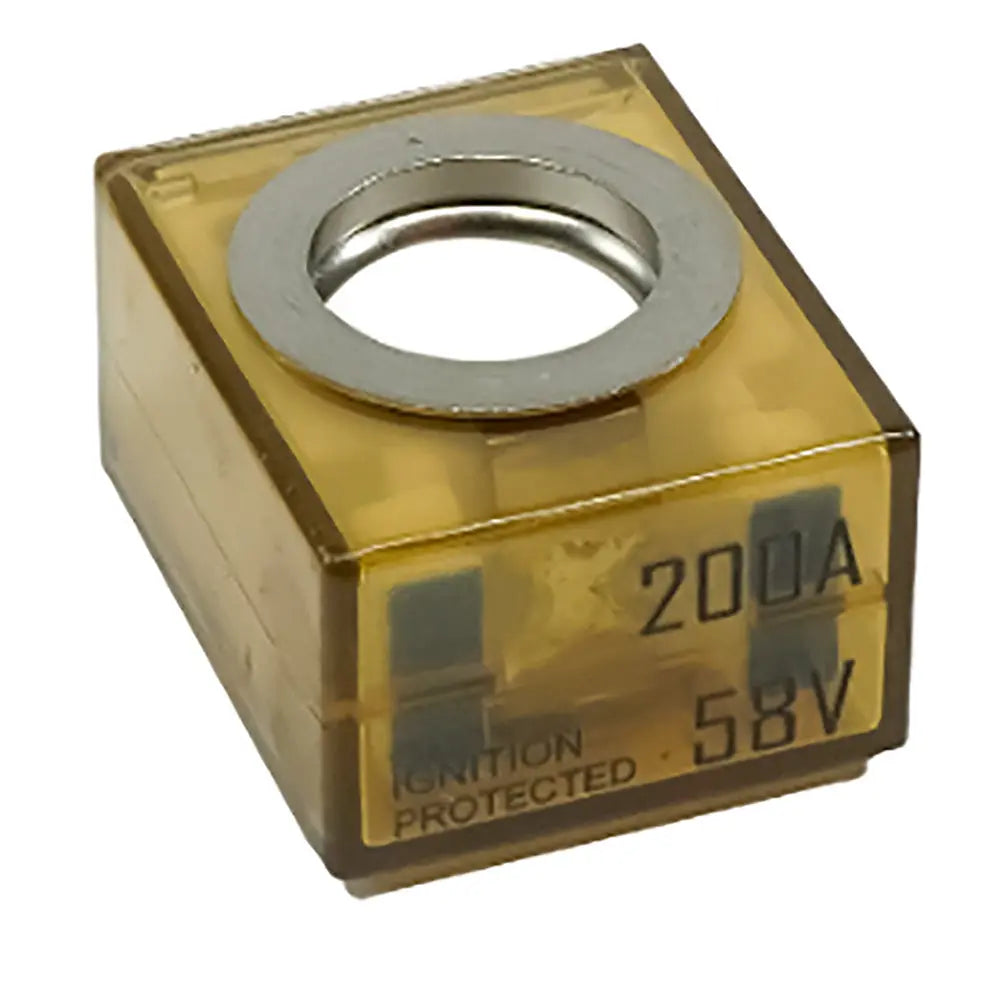

The Egis Mobile Electric MRBF Terminal Fuse, part number 3603-200, offers robust circuit protection designed for demanding marine and vehicle applications. With a continuous current capacity of 200 amps and a maximum voltage rating of 58 VDC, this fuse ensures reliable performance across a wide range of electrical systems. Its high interrupt rating of up to 10,000 amps at 14 VDC provides peace of mind when managing large battery banks and high-current loads. The fuse's transparent casing allows for quick and easy visual inspection of its status, enabling prompt maintenance when needed. Color-coded for easy identification, it simplifies installation and troubleshooting processes, saving time and reducing errors. The fuse is ignition-protected, making it safe for installation in enclosed compartments with potentially explosive gases, and it is engineered to withstand harsh environments, including shock and vibration, making it ideal for marine environments and off-road vehicles. Its sealed design protects against dust and water intrusion, ensuring long-term reliability and consistent circuit protection. The Egis MRBF fuse is designed to safeguard electrical circuits from short circuits and over-current events, preventing wire insulation damage and potential fires. Its high interrupt current rating is especially critical for circuits connected to large, paralleled battery banks, where significant available power necessitates durable and reliable protection. The fuse's durable build and IP66 ingress protection rating ensure it can handle challenging conditions and extended service life. Backed by a 4-year warranty, this fuse reflects Egis Mobile Electric's commitment to quality and performance, providing peace of mind for demanding applications. Whether used in marine, automotive, or heavy-duty electrical systems, this fuse is engineered to meet the rigorous safety and performance standards required for critical circuit protection.
Features:
Provides visual indication of fuse status through a transparent casing
Ignition-protected design safe for installation in enclosed compartments with explosive gases
High interrupt rating of up to 10,000 amps at 14 VDC for large battery bank protection
Color-coded for quick and easy identification of amperage rating
Sealed against dust and water intrusion for reliable long-term performance
Designed to withstand harsh environments with shock and vibration resistance
Supports 12 to 48V nominal systems with a maximum voltage of 58 VDC
Reliable circuit protection against short circuits and over-current loads
Suitable for marine, automotive, and heavy-duty electrical systems
Backed by a 4-year warranty ensuring product durability and dependability
