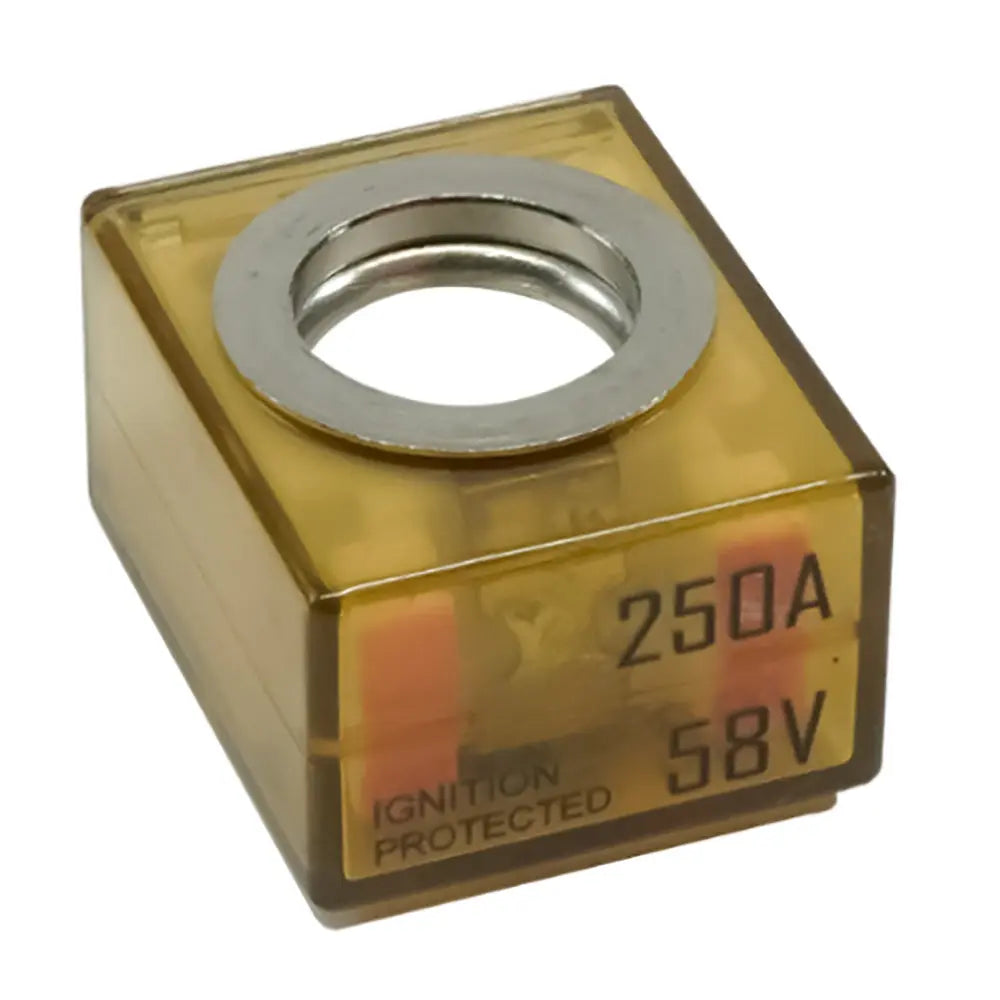

Egis Mobile Electric MRBF Terminal Fuse - 250 Amp for Marine and Vehicle Electrical Systems

MRBF Terminal Fuse - 250 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 250
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse with a 250 Amp rating offers reliable circuit protection for demanding marine and automotive applications. Designed with a transparent body, this fuse allows for quick visual inspection of the fuse status without removal, saving time during maintenance. It is ignition-protected and complies with SAE/J1171-ISO8846 standards, making it safe for installation in enclosed compartments with potentially explosive gases. The high interrupt rating ensures safe disconnection during short circuits or overloads, safeguarding large battery banks and electrical components. Its color-coded design simplifies amperage identification, reducing installation errors and streamlining system setup. Built to withstand harsh environments, the fuse features shock and vibration resistance, sealed against dust and water intrusion, and rated at IP66 for durability in marine and rugged vehicle settings. The 58 Vdc rating supports a wide range of nominal voltages from 12V to 48V, making it adaptable to various systems. With a maximum continuous current of 250 amps and interrupt ratings up to 10,000 amps at 14 VDC, this fuse exceeds typical circuit protection requirements, ensuring long-term reliability. Backed by a 4-year warranty, the Egis MRBF Terminal Fuse provides peace of mind with its proven performance and robust construction, ideal for high-power electrical systems where safety and durability are paramount.

Features:

• Provides visual indication of fuse status for easy monitoring

• Ignition protected design suitable for enclosed compartments with explosive gases

• High interrupt rating ensures safe disconnection during overloads or short circuits

• Color-coded for quick amperage identification to prevent installation errors

• Sealed against dust and water intrusion for reliable long-term operation

• Designed to withstand shock and vibration in harsh environments

• Supports nominal voltages from 12V to 48V with a 58 Vdc rating

• Maximum continuous current of 250 amps for high-power applications

• High interrupt current capacity up to 10,000 amps at 14 VDC

• Durable construction with IP66 ingress protection for marine and vehicle use

• Backed by a 4-year warranty for long-term reliability
