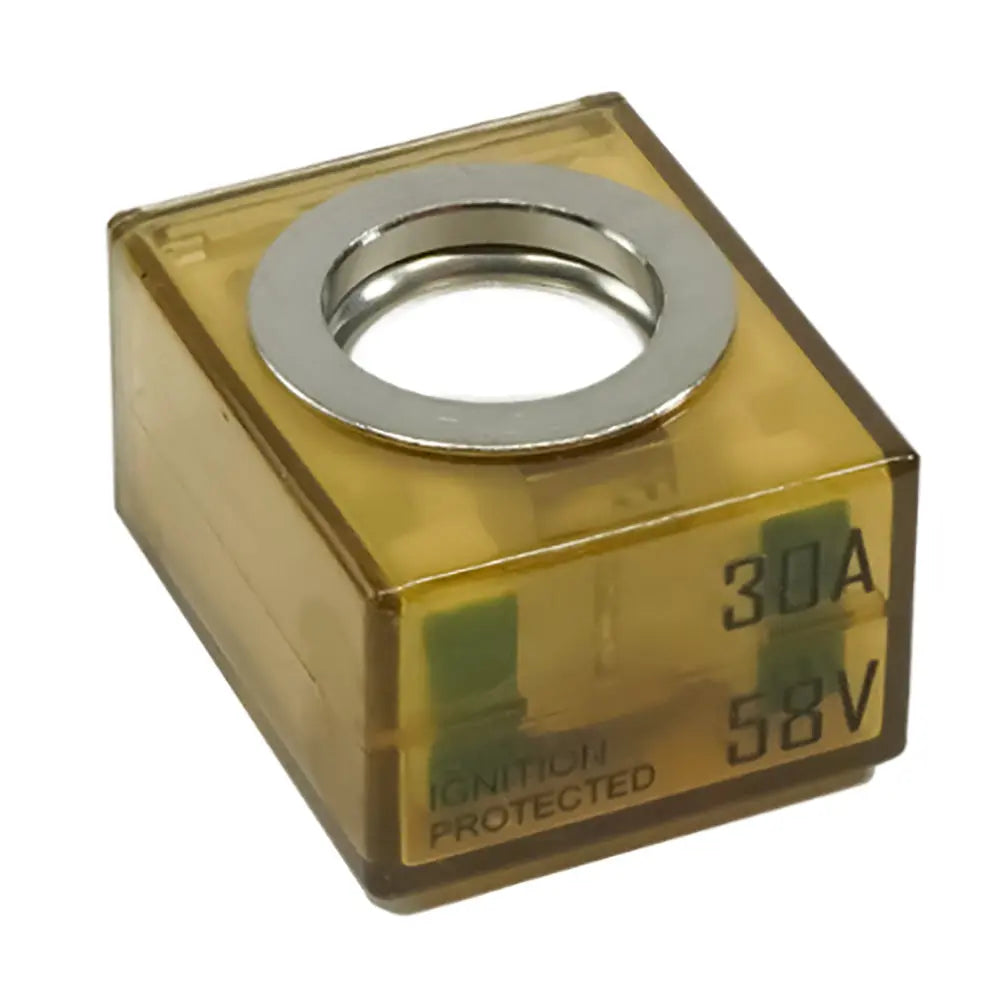

Egis Mobile Electric MRBF Terminal Fuse - 30 Amp for Marine and Vehicle Electrical Systems

MRBF Terminal Fuse - 30 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse with a 30 Amp rating offers reliable circuit protection for marine, automotive, and other vehicle electrical systems. Designed with a transparent casing, this fuse allows for quick visual inspection of its status, ensuring easy maintenance and troubleshooting. Its ignition-protected construction complies with SAE J1171 and ISO 8846 standards, making it safe for installation in closed compartments with potentially explosive gases. The fuse’s high interrupt rating effectively safeguards large battery banks and high-current circuits, preventing damage caused by short circuits or overloads. Its rugged design features resistance to shock and vibration, ideal for harsh environments encountered in marine and off-road applications. Additionally, the fuse is sealed against dust and water intrusion with an IP66 rating, ensuring long-term reliability even in demanding conditions. The Egis MRBF fuse supports nominal voltages from 12 to 48 volts DC, making it versatile across various electrical setups. A color-coded system simplifies amperage identification, streamlining installation and inspection processes. Backed by a four-year warranty, this fuse provides peace of mind that your electrical system remains protected over time. Whether used in large battery banks or critical circuits, the Egis Mobile Electric MRBF Terminal Fuse delivers high-performance circuit protection where reliability and safety are paramount. Its compact size and robust construction make it suitable for both marine and automotive applications, ensuring your electrical systems are safeguarded against faults effectively and efficiently.

Features:

• Transparent casing for easy visual fuse status inspection

• Ignition-protected design compliant with SAE J1171 and ISO 8846 standards

• High interrupt rating suitable for large battery banks and high-current circuits

• Color-coded for quick identification of amperage rating

• Sealed against dust and water with IP66 rating for enhanced durability

• Supports nominal voltages from 12 to 48 volts DC

• Resistant to shock and vibration for use in harsh environments

• Provides reliable protection against short circuits and overloads

• Four-year warranty ensuring long-term durability
