High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features:
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 50
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

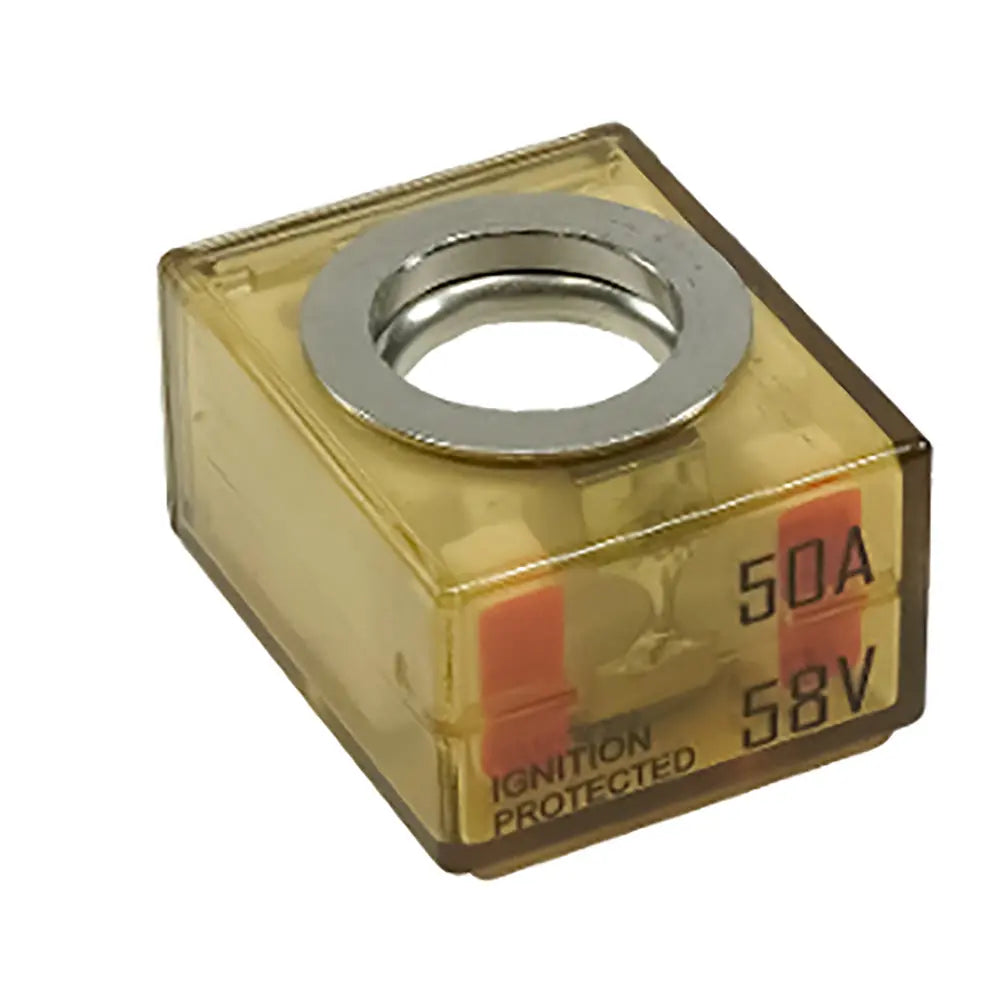

The Egis Mobile Electric MRBF Terminal Fuse is designed to provide reliable over-current protection for electrical circuits in marine and vehicle applications. With a 50 Amp continuous current rating and a maximum voltage of 58 VDC, this fuse is suitable for a wide range of 12 to 48-volt systems. Its transparent design allows for easy visual inspection of fuse status, ensuring quick troubleshooting and maintenance. The fuse is ignition-protected according to SAE/J1171-ISO8846 standards, making it safe for installation in closed compartments with potential explosive gases. Built with a rugged, shock and vibration-resistant construction, it is ideal for harsh environments, including marine, automotive, and off-road systems. Its sealed IP66 enclosure prevents dust and water intrusion, safeguarding the electrical system over time. The high interrupt rating—10,000 amps at 14 VDC, 5,000 amps at 48 VDC, and 2,000 amps at 58 VDC—ensures safe disconnection during over-current events, protecting large battery banks and wiring from damage. The color-coded design simplifies amperage identification, streamlining installation and maintenance processes. Backed by a 4-year warranty, the Egis MRBF Terminal Fuse combines durability, safety, and ease of use for demanding electrical systems.
Features:
Provides over-current protection for electrical circuits, preventing wire insulation overheating and damage.
High interrupt current safely disconnects circuits connected to large battery banks with significant available power.
Ignition protected design ensures safe installation in closed compartments with potentially explosive gases, compliant with SAE/J1171-ISO8846 standards.
Sealed IP66 enclosure offers dust and water resistance for long-term reliability in harsh environments.
Supports 12 to 48-volt nominal applications, rated up to 58 VDC.
Shock and vibration resistant construction suitable for marine and off-road applications.
Color-coded for easy identification of amperage ratings, simplifying maintenance.
Backed by a 4-year warranty for dependable performance.
