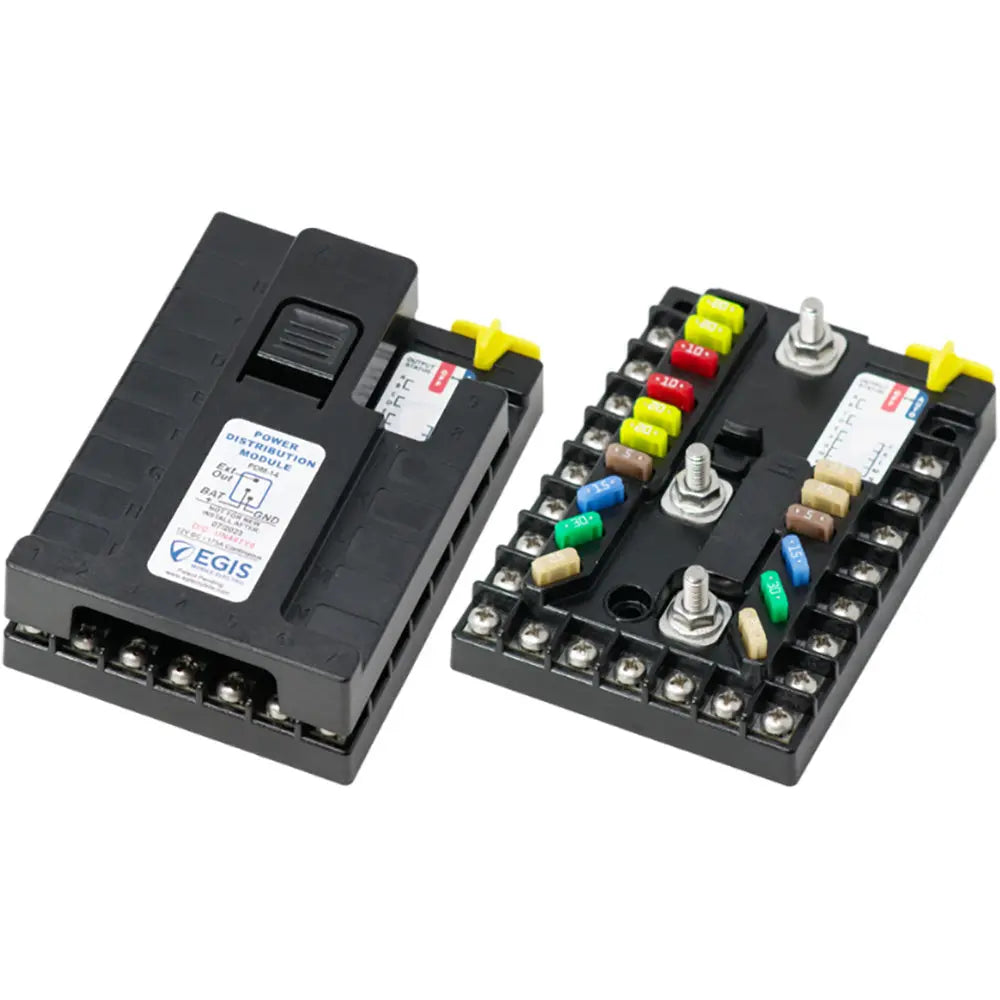

Egis Mobile Electric PDM 14 Circuit + Ground 175A 12V with Kill Switch

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:

• For 12-volt systems, the allowed voltage range is 8-18 VDC
• Total continuous output limit: 175 amps
• Three load groups with a continuous output of 75-115 amps
• Optional time delay 0-10 hrs
• Optional low voltage protection 11-12.2 volts
• Offload current draw 1.3 mA

The Egis Mobile Electric PDM 14 Circuit + Ground offers a comprehensive power management solution designed for professional automotive and marine installations. This compact device combines battery protection, power switching, and circuit protection within a single unit, making it ideal for complex electrical systems that require reliable control and safety features. The unit includes three high-power circuits rated at 45 amps each and three output groups that can be independently configured for continuous operation, ignition switch control, or time delay settings, providing flexibility for various applications.

Built for 12-volt systems with an operating voltage range of 8 to 18 volts, the PDM 14 Circuit can handle a continuous output of up to 175 amps. Its modular design allows expansion up to 31 fused outputs using RT or CT fuse blocks, accommodating additional circuits as system demands grow. The device features an optional time delay function adjustable from 0 to 10 hours, enabling controlled power distribution during startup or shutdown sequences. Additionally, low voltage protection can be enabled for voltage levels between 11 and 12.2 volts, safeguarding sensitive electronics from undervoltage conditions.

The unit's offload current draw is minimal at 1.3 milliamps, ensuring efficiency and reducing unnecessary battery drain when the system is inactive. An integral kill switch provides manual shutdown capability, offering an extra layer of safety and control during maintenance or emergency situations. Designed for ease of installation and reliable operation, this power distribution module is suitable for a range of professional vehicle and marine electrical systems, ensuring robust power management and circuit protection.

Features:

• For 12-volt systems, the allowed voltage range is 8-18 VDC

• Total continuous output limit of 175 amps

• Three load groups with a continuous output of 75-115 amps each

• Optional time delay feature adjustable from 0 to 10 hours

• Optional low voltage protection between 11 and 12.2 volts

• Offload current draw of 1.3 milliamps
