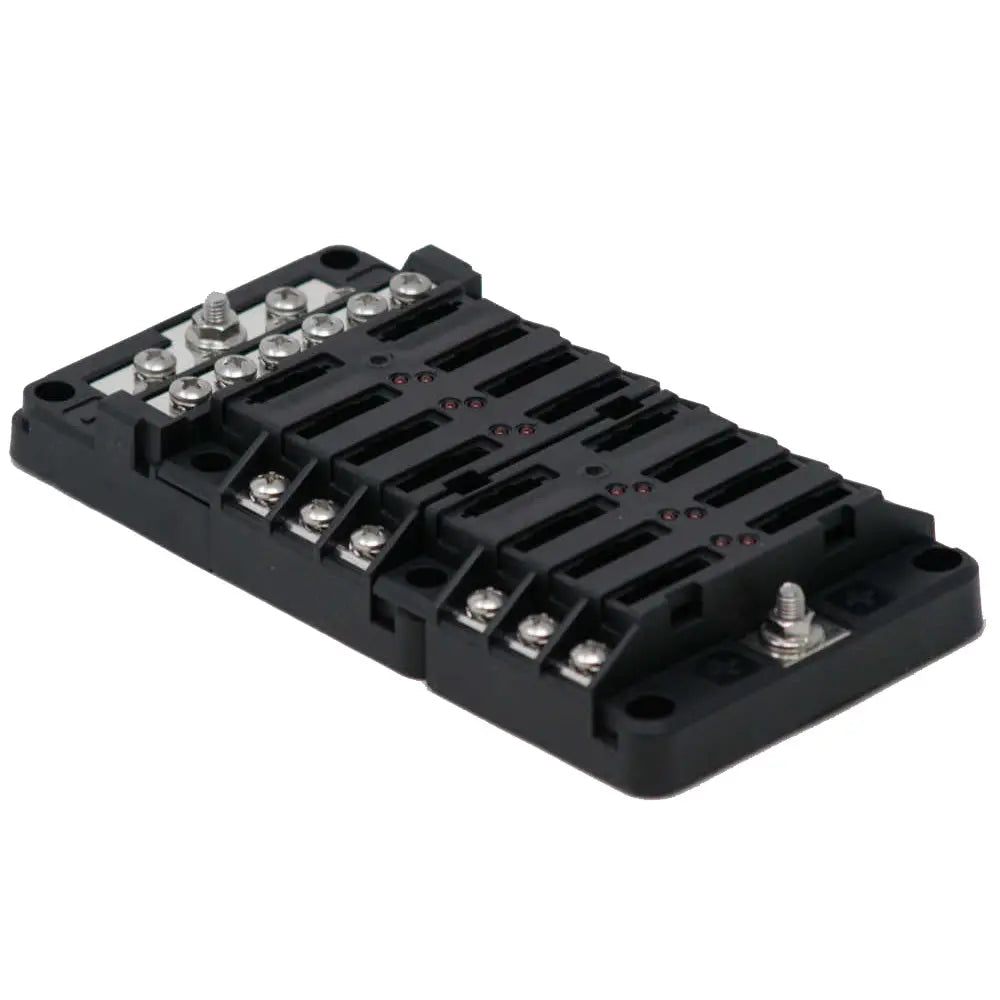

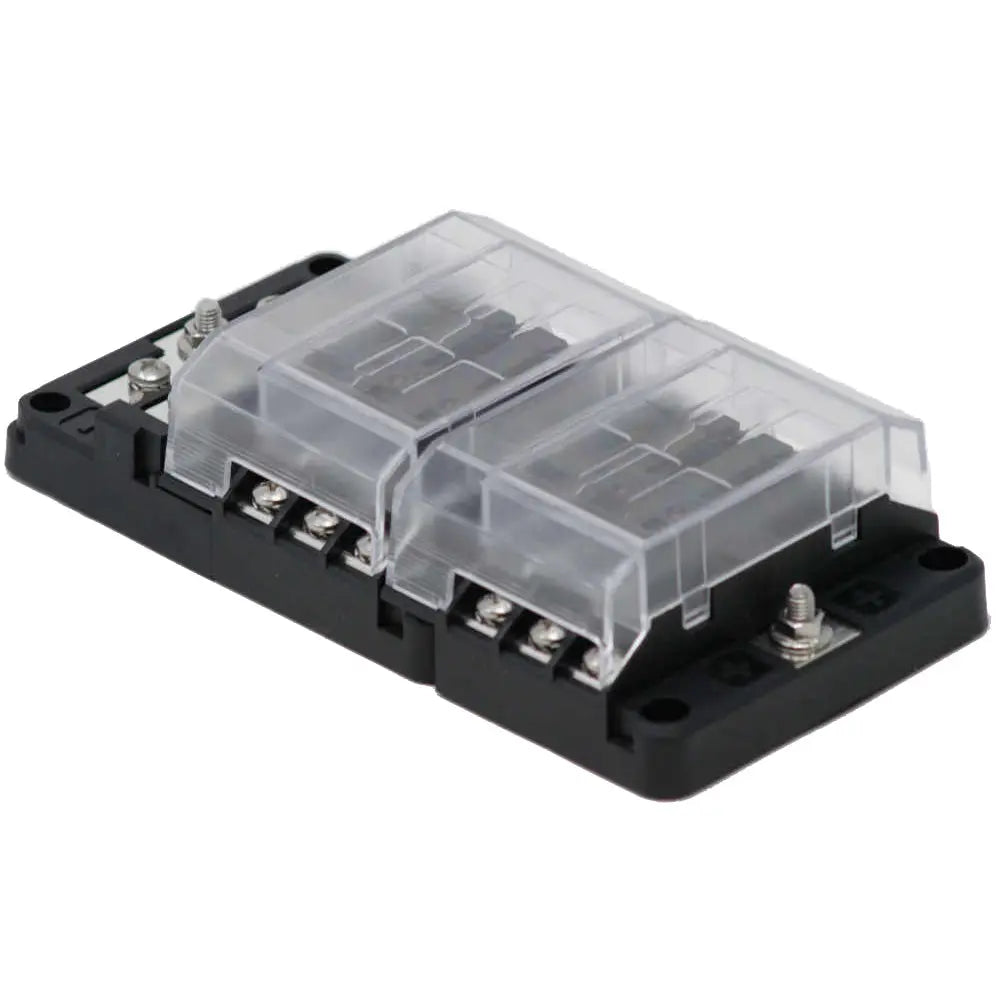

Egis Mobile Electric RT Fuse Block 12 Position with Ground and LED Indication

RT Fuse Block 12 Position with Ground LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 10
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block 12 Position with Ground and LED Indication offers a robust and versatile solution for electrical circuit protection in demanding environments. Designed with a modular architecture, this fuse block can be configured into seven unique setups using Egis models 8028 and 8030, simplifying inventory management and customization for various applications. Its construction features high-temperature, corrosion-resistant materials, including stainless steel self-locking hardware, allowing reliable mounting in any location on a vehicle or equipment. The fuse block supports ATO, ATC, and ATF fuse types up to 40 Amps, providing comprehensive circuit protection aligned with SAE standards for thermal and short-circuit events. Its maximum current capacity is 10 amps for the entire block and 30 amps per circuit, with support for wire sizes up to #10 AWG and voltage ranges from 0 to 36 VDC. The design includes 12 fuse positions, each with dedicated LED indicators that illuminate when a fuse blows, facilitating quick diagnostics and reducing downtime during fault troubleshooting. The fuse block also features spare fuse locations near each circuit for testing or additional protection, enhancing maintenance flexibility. Its cover and label recesses safeguard terminal studs and cable edges from accidental shorts, while the included ground block offers a multi-level terminal screw design for secure grounding. An optional separation feature allows the ground section to be detached from the fuse section, providing increased versatility for challenging installation environments. The product is suited for harsh conditions, with weather-proof labels available in standard or custom options, making it ideal for off-road, industrial, or vehicle applications. Please note that the product contains chemicals that may pose health risks, and additional safety information is available at P65Warnings.ca.gov.

Features:

• Modular design with seven configuration options for flexible installation

• High-temperature, corrosion-resistant construction with stainless steel hardware

• Supports ATO, ATC, and ATF fuses from 1 to 40 Amps for comprehensive circuit protection

• LED indicators for each circuit provide quick blown fuse diagnostics

• Includes a 12-position ground return block with multi-level terminal screws

• Optional separation of ground and fuse sections for installation versatility

• Spare fuse locations for testing and maintenance convenience

• Protective cover and label recesses prevent accidental shorts

• Weather-proof labels available for harsh environments
