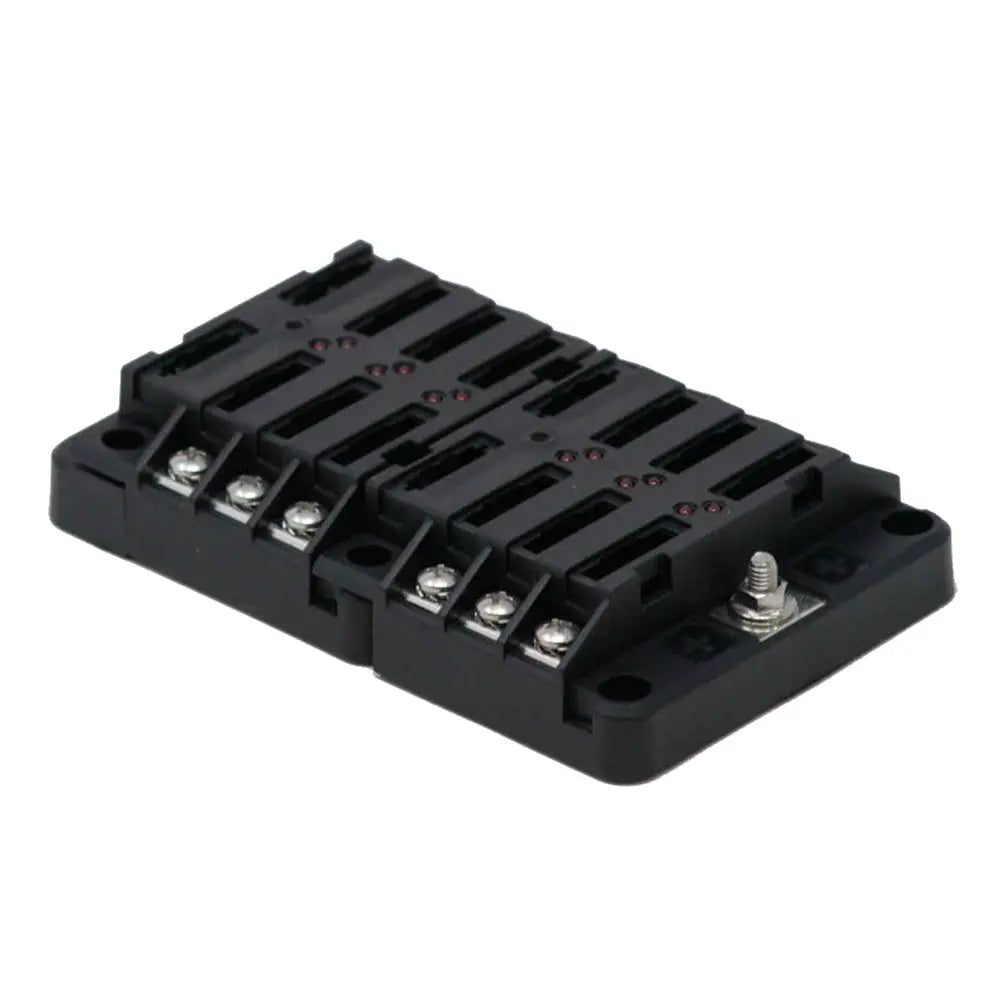

Egis Mobile Electric RT Fuse Block 12 Position with LED Indication

RT Fuse Block 12 Position with LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 12-24
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

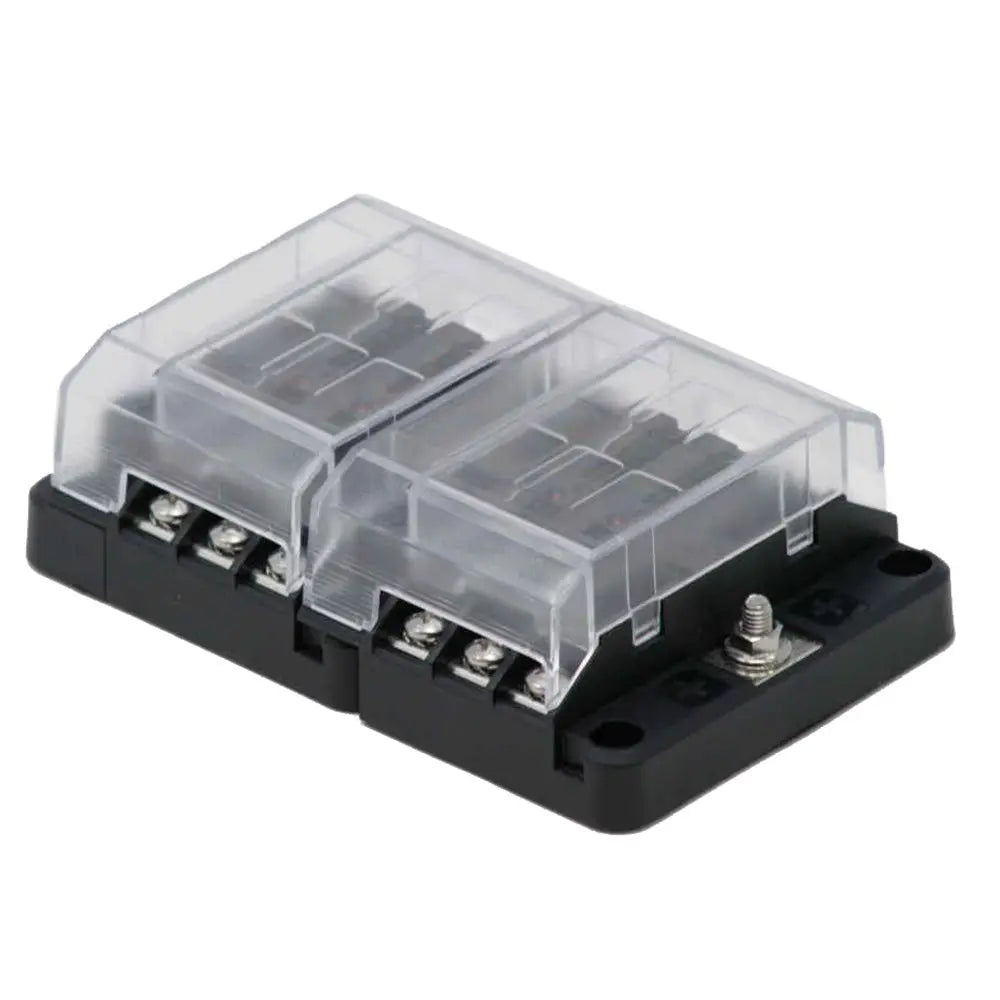

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block 12 Position with LED Indication is a durable and versatile solution designed for demanding vehicle applications. Its modular design allows for seven unique configurations using Egis 8028 and 8030 components, simplifying inventory management and assembly. The integrated LED indicators provide real-time diagnostics by clearly showing blown fuses, allowing for quick troubleshooting and minimizing downtime. Built with high-temperature materials and stainless steel self-locking hardware, this fuse block can be mounted virtually anywhere on a vehicle, even in harsh environments. It accepts ATO style fuses ranging from 1 to 40 amps, offering reliable branch circuit protection aligned with SAE standards for thermal and short circuit events. The fuse block's robust construction supports a maximum current of 100 amps for the entire unit and up to 30 amps per circuit, making it suitable for high-power systems. Its support for wire sizes up to #10 AWG ensures compatibility with a broad range of wiring setups. Additional features include spare fuse locations per six circuits for testing or redundancy, and protective cover and label recesses that shield terminal studs and cable edges from accidental shorts. The fuse block's stainless steel hardware ensures corrosion resistance and secure locking, even in the most challenging environments. Overall, the Egis RT Fuse Block 12 Position with LED indication offers a reliable, easy-to-diagnose, and flexible solution for vehicle electrical systems, combining safety, durability, and convenience in a single unit.

Features:

• Modular design with seven configurations for flexible installation

• LED fuse diagnostics for quick fault identification

• High-temperature materials and stainless steel hardware for durability

• Accepts ATO/ATC/ATF fuses from 1 to 40 amps

• Supports up to 100 amps maximum current for entire block

• Per circuit current rating of 30 amps for reliable protection

• Supports wire sizes up to #10 AWG

• Spare fuse locations per six circuits for testing or redundancy

• Protective cover and label recesses prevent accidental shorts

• Corrosion-resistant stainless steel hardware ensures long-term durability
