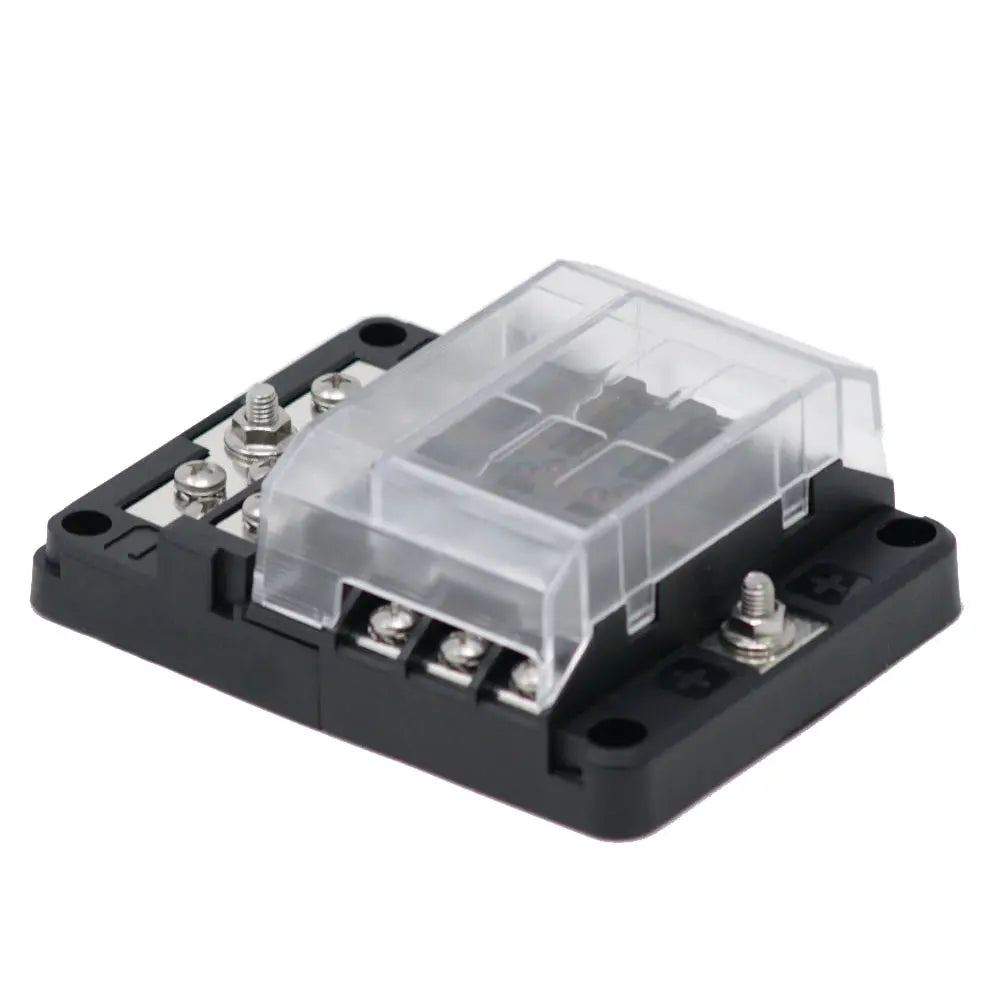

Egis Mobile Electric RT Fuse Block 6 Position with Ground and LED Indication

RT Fuse Block 6 Position with Ground LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

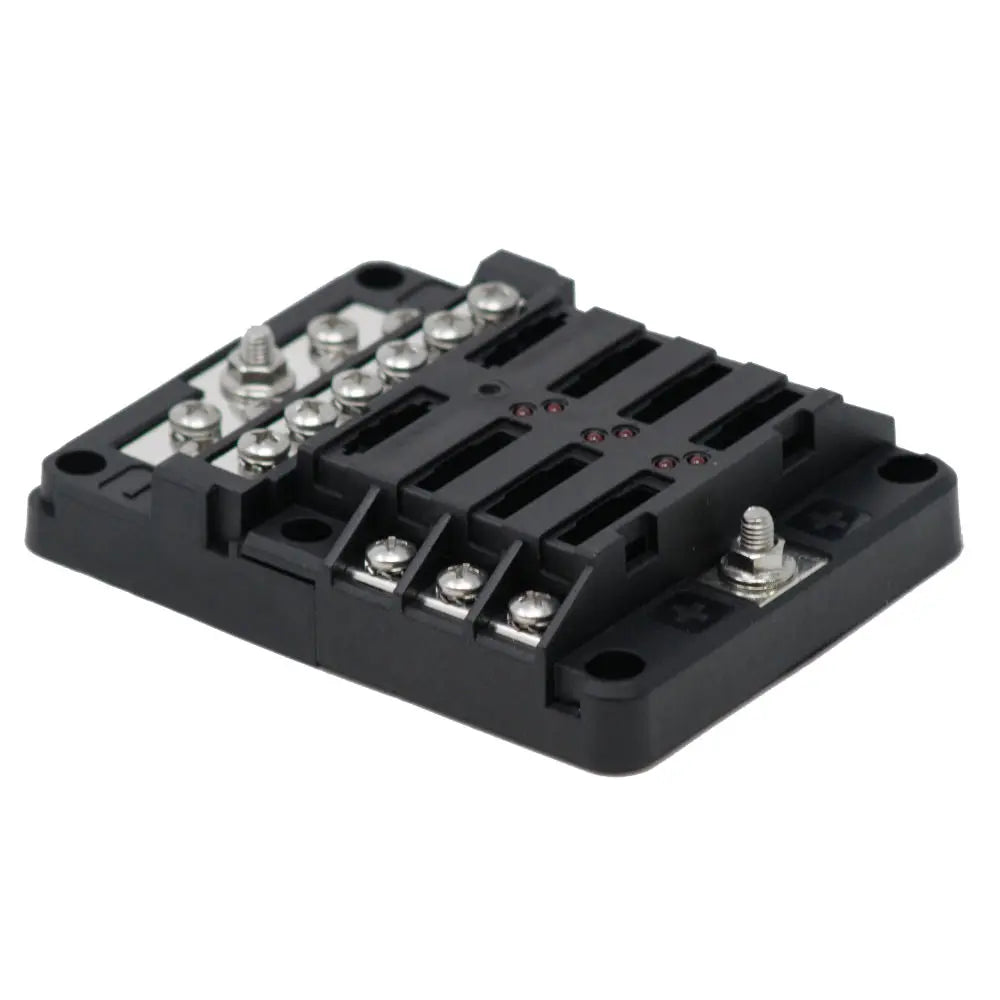

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block 6 Position with Ground and LED Indication offers a robust and versatile solution for managing electrical circuits in demanding environments. Crafted with high-temperature materials and stainless steel self-locking hardware, this fuse block is designed for durability and corrosion resistance, allowing reliable mounting anywhere on a vehicle or equipment. Its modular design supports seven unique configurations, reducing the need for multiple part numbers and streamlining inventory management. The fuse block accommodates ATO style fuses ranging from 1 to 40 Amps, providing comprehensive protection for branch circuits while supporting SAE standards for thermal and short circuit events. The maximum current capacity of 100 Amps for the entire block and 30 Amps per circuit ensures safe operation across various applications.

Features:

• Bullet-proof construction: Made with high-temperature and stainless steel hardware for durability in harsh environments

• Fuse compatibility: Supports ATO, ATC, and ATF style fuses from 1 to 40 Amps

• Circuit protection: Designed to meet SAE standards for thermal and short circuit protection

• LED fuse diagnostics: Individual blown fuse LEDs facilitate quick troubleshooting and remote fault detection

• Spare fuse locations: Two spare positions per circuit for testing or added protection

• Corrosion-resistant hardware: All attachment screws and nuts are self-locking and made from non-ferrous materials

• Grounding options: Includes a 12-position ground return block with multi-level low amp terminal screws

• Removable ground section: Optional separation of the ground block from the fuse section for flexible installation

• Protective cover and labels: Recessed covers safeguard terminal edges and studs from accidental shorts
