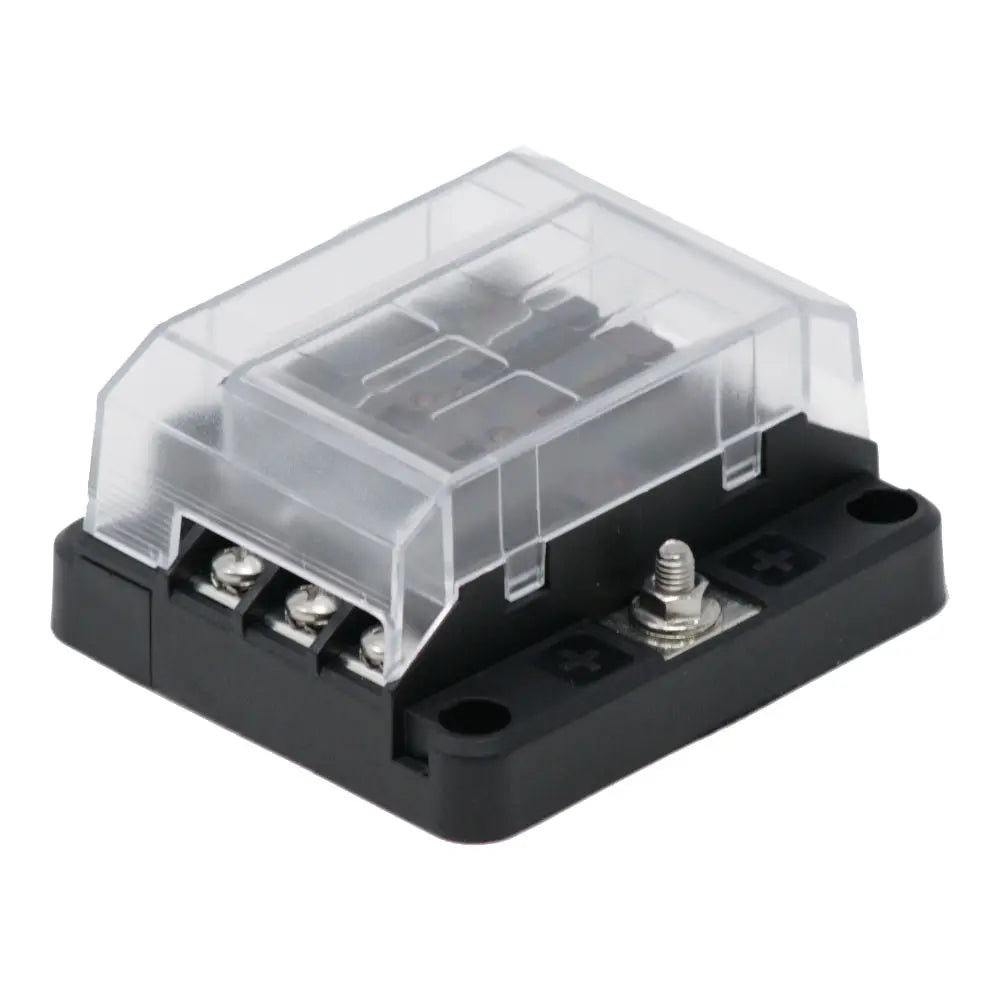

Egis Mobile Electric RT Fuse Block 6 Position with LED Indication – Durable Circuit Protection Solution

RT Fuse Block 6 Position with LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

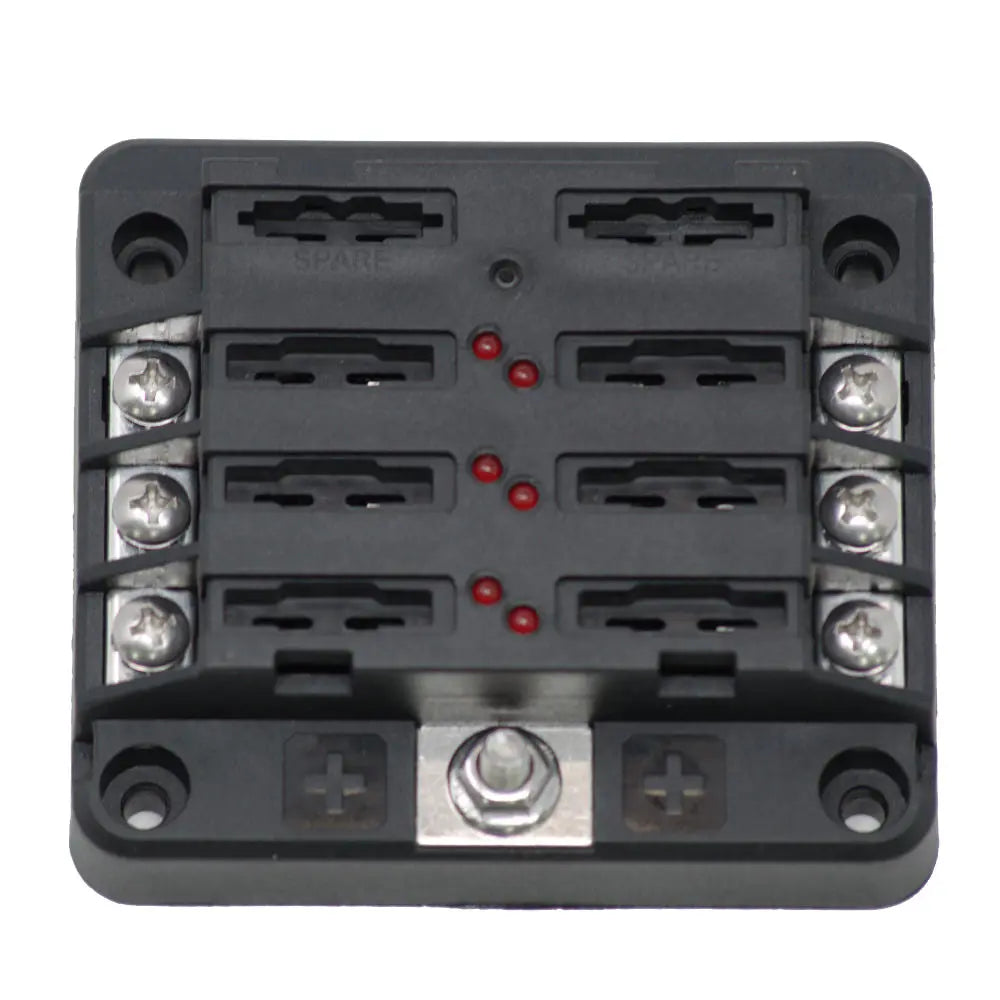

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block Part Number 8028 offers reliable and versatile circuit protection for vehicle applications. This 6-position fuse block features a modular design capable of forming seven unique configurations, simplifying inventory management and ensuring compatibility with various build requirements. Its robust construction includes high-temperature materials and stainless steel self-locking hardware, allowing secure mounting in any environment without corrosion concerns. Supporting ATO, ATC, and ATF fuse types from 1 to 40 amps, the fuse block ensures comprehensive branch circuit protection in demanding conditions. It handles a maximum current of 100 amps for the entire block and up to 30 amps per circuit, with compatibility for wire sizes up to #10 AWG and voltage ranges from 0 to 36 VDC. The fuse block's design adheres to SAE standards for thermal and short circuit protection, providing peace of mind during operation. An added benefit is the LED fuse diagnostics feature, with individual blown fuse indicators for each circuit, enabling quick remote troubleshooting and reducing vehicle downtime. Additionally, spare fuse locations are included, supporting testing and evaluation with resistor placements. The cover and label recesses protect terminal connections from accidental shorts and environmental damage, enhancing safety and longevity. Egis's emphasis on durability and ease of maintenance makes this fuse block an ideal choice for harsh vehicle environments, where reliability and quick diagnostics are essential. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and more information is available at P65Warnings.ca.gov.

Features:

• Modular design allows seven configuration options for flexible installation

• High-temperature, corrosion-resistant materials for durable mounting in harsh environments

• Accepts ATO, ATC, and ATF fuses from 1 to 40 amps for comprehensive circuit protection

• Supports up to 100 amps total current and 30 amps per circuit

• LED indicators for each circuit facilitate rapid diagnosis of blown fuses

• Includes spare fuse slots for testing and fault management

• Self-locking stainless steel hardware ensures secure mounting and corrosion resistance

• Protective cover and label recesses shield terminals from accidental shorts and environmental factors
