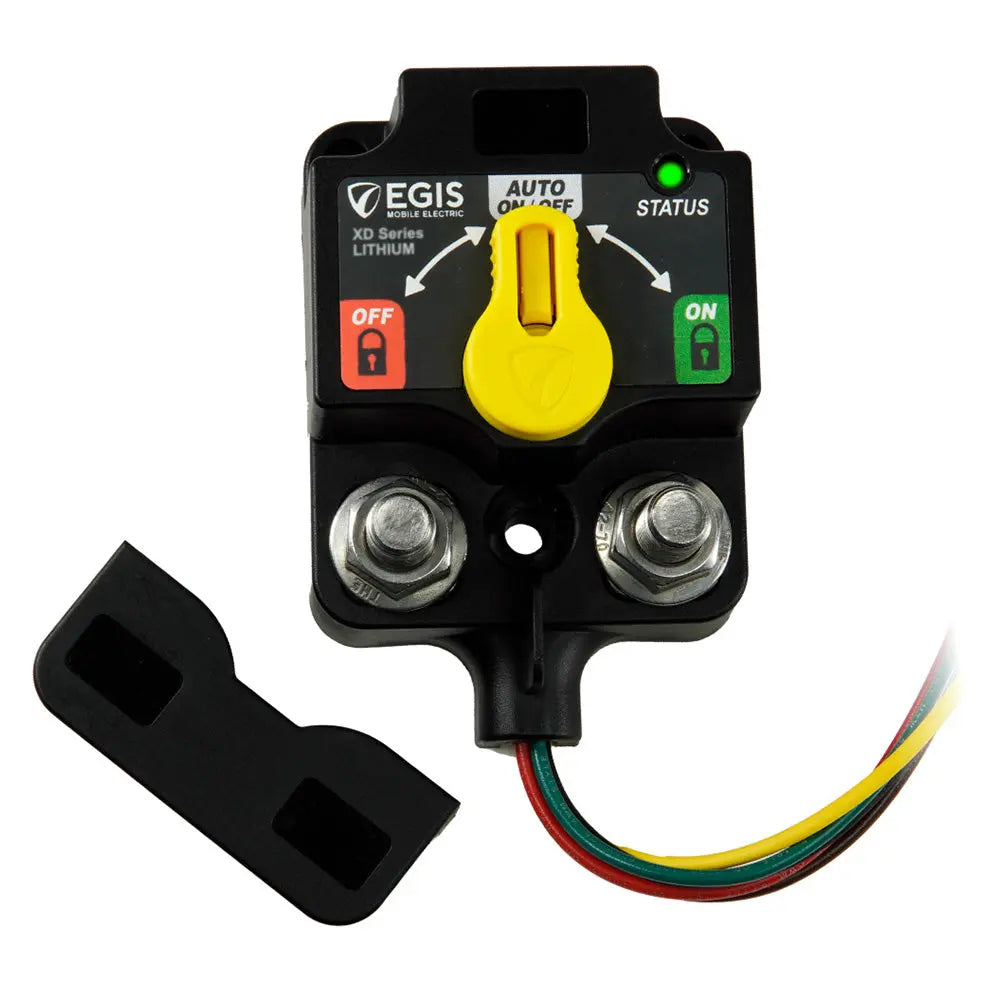

Egis Mobile Electric Single Flex L VSR/Relay with Knob - Tinned Wires

Single Flex L VSR/Relay with Knob - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric Part Number 8510-1300 is a versatile and robust single relay designed specifically for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate battery systems. Its high-current capability of 500 amps continuous makes it suitable for demanding applications where precise charge and discharge voltage settings are essential. This relay features a compact footprint that saves valuable space in your installation, making it ideal for tight automotive or industrial environments. The relay can be equipped with a manual override knob that is front-facing and intuitive, allowing operators to lock the relay in ON or OFF positions for maintenance or safety considerations, with locking functionality to prevent accidental operation during servicing. Additionally, the relay’s flexible functionality is enhanced through dip switches, enabling it to serve as a relay, battery disconnect, voltage sensing relay, or low voltage disconnect, adapting to various system requirements. Remote inputs for ON/OFF/Auto control further expand its usability, allowing automatic operation based on voltage sensing or manual activation from a remote location. Local and remote LED indicators provide real-time status updates, ensuring clear visual confirmation of relay states at all times. For simplified system management, the relay can also be configured with a mechanical-only battery switch option, suitable for single or multiple relay configurations, offering dependable manual control. The relay’s construction is sealed to IP67/IP6K9K standards, ensuring durability in harsh environments. Made from high-temperature electronics materials and stainless steel cable lug studs, it can be mounted anywhere without concern for environmental exposure. Its large mounting holes accept common hardware such as 1/4-20 or M6 bolts, facilitating straightforward installation. With an advanced bi-stable solenoid design and multiple assemblies, this relay achieves a 35-75% reduction in mounting space and weight compared to traditional solutions, making it an efficient choice for space-constrained systems. Compatibility with legacy products is maintained through plug-and-play design, with DTM/ATM connectors and pin-for-pin compatibility with ML Series bi-stable relays. Its energy efficiency is notable, consuming 90-95% less off-state current than comparable products, contributing to overall system efficiency. Backed by a four-year industry-leading warranty, the Egis Single Flex L VSR/Relay offers reliable, flexible, and space-saving power switching solutions for high-demand battery systems.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs for durability and versatile mounting options

• Intuitive manual control with locking capability for safe and easy operation during maintenance

• Simple dip switch programming provides flexible relay functions suitable for various system configurations

• Space and weight optimized with advanced bi-stable solenoid design, reducing installation footprint

• Plug-and-play compatibility with legacy systems, featuring DTM/ATM connectors and pin-for-pin design with ML Series relays

• Significantly reduced off-state current, enhancing overall system efficiency

• Local and remote LED indicators for real-time status monitoring

• Mechanical-only battery switch option for manual control in single or multiple relay setups

• Designed for demanding environments with high-temperature electronics and corrosion-resistant components

• Four-year industry-leading warranty ensures long-term reliability and support
