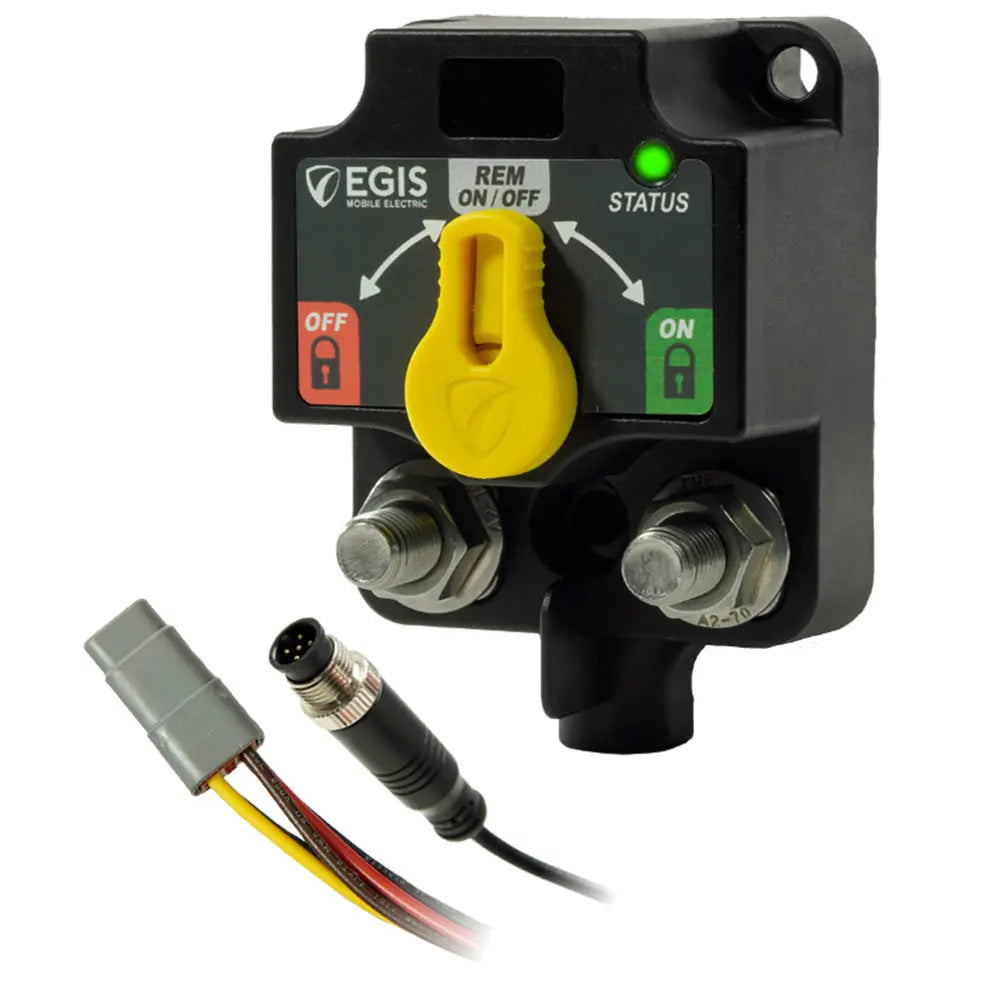

Egis Mobile Electric Single XD NMEA 2000 Automatic Circuit Relay with Knobs - 4 Position DT

Single XD - NMEA 2000 - ACR with Knobs - 4 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
• Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric Single XD NMEA 2000 automatic circuit relay offers robust performance and seamless integration for marine electrical systems. With its sealed IP67/IP69K construction, it is designed for harsh environments, ensuring reliable operation regardless of exposure to water, dust, or high temperatures. The relay features stainless steel cable lug studs and large mounting holes suitable for standard hardware, simplifying installation in various marine applications. Its high continuous current capacity of 500A and cranking support up to 1600A per switch make it suitable for managing demanding electrical loads on boats and vessels. The intuitive manual control feature provides easy operation and monitoring of manual override states, ensuring users can quickly assess whether the relay is locked on or off, a functionality not commonly found in competitive products. Programmability via simple dip switches allows OEMs and installers to tailor relay functions to specific needs, enhancing system flexibility. The Egis Single XD reduces off-state current by 90-95% compared to similar devices, improving overall energy efficiency and reducing power drain. Designed for seamless NMEA 2000 integration, it enables control switches, status monitoring, and battery voltage readings, streamlining electrical system management. Its flexible control options include both NMEA 2000 and discrete analog inputs, offering versatile operation suited for diverse setups. The advanced bi-stable solenoid design and multiple solenoid assemblies contribute to a 35-75% reduction in mounting space and weight, facilitating easier installation and space management. Additionally, the relay supports sharing charging between two batteries and isolates batteries when no charge sources are present, preventing dead start batteries. Expandability is another key feature, as the relay can be linked with busbars to support dual, triple, or single battery systems, making it adaptable for expanding or more complex systems. Please note, this product may contain chemicals known to cause reproductive harm, and further information is available at P65Warnings.gov.

Features:

• Bullet-proof construction: Sealed to IP67/IP69K with high-temperature electronics and stainless steel cable lug studs, suitable for harsh marine environments

• High current capacity: 500A continuous and support for 1600A cranking per switch, compatible with standard marine electrical systems

• Manual control: Intuitive feature to monitor and override relay states, ensuring easy operation and safety

• Simple programmability: Dip switches allow flexible customization of relay functions to meet various OEM and installer needs

• Energy efficient: Reduces off-state current by 90-95%, decreasing power drain and enhancing system efficiency

• NMEA 2000 integration: Controls switches, monitors switch status, and battery voltage for streamlined system management

• Versatile control options: Operates via NMEA 2000 or discrete analog inputs for added flexibility

• Space-saving design: Advanced bi-stable solenoid and multiple assemblies reduce mounting space and weight

• Battery management: Supports sharing charging between batteries and isolating batteries when no charge sources are active

• Expandable system: Compatible with Link and Cross-Link Busbars for additional dual, triple, or single battery configurations
