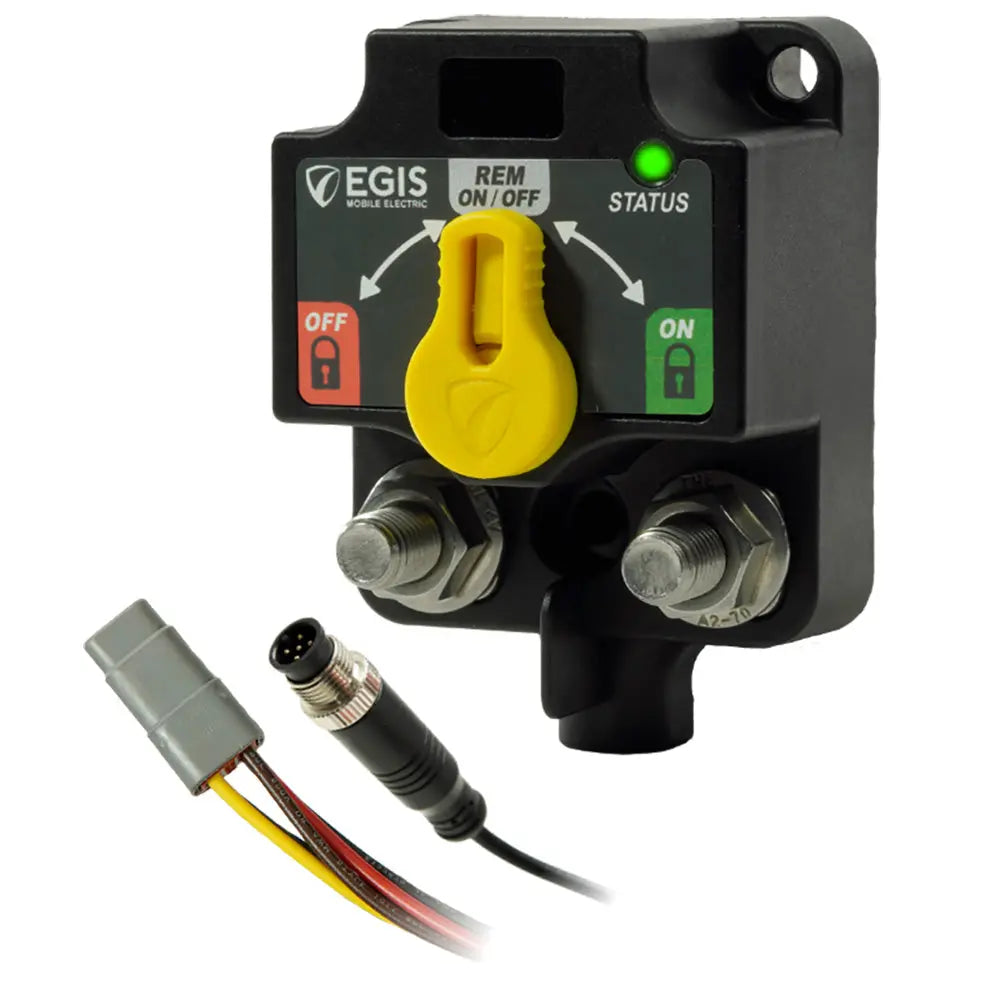

Egis Mobile Electric Single XD NMEA 2000 Relay with Knobs - 4 Position DT

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
• Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

The Egis Mobile Electric Single XD NMEA 2000 Relay with Knobs (Part Number: 9811-4500) offers a robust and reliable solution for marine electrical systems. Designed with high-temperature electronics and sealed to IP67/IP6K9K standards, this relay can be installed in harsh environments without concern for water or dust ingress. Its stainless steel cable lug studs and large mounting holes accommodate standard hardware such as 1/4-20 or M6, providing versatile installation options. This relay is rated for 500A continuous current and supports up to 1600A cranking current per switch, making it suitable for a wide range of marine power applications. The intuitive manual control feature allows operators to easily override automatic functions, enabling quick assessment and management of system states, which is particularly beneficial during troubleshooting or maintenance. Programmability via simple dip switches grants installers and OEMs the flexibility to customize relay functions to specific system needs, streamlining integration and reducing setup complexity. The Egis Single XD relay consumes 90-95% less off-state current compared to traditional solutions, contributing to overall system efficiency and power savings. Its advanced bi-stable solenoid design and multiple assemblies reduce mounting space and weight by 35-75%, allowing for more streamlined system layouts. Applications include seamless control and monitoring of NMEA 2000 networks, with support for control switches, status monitoring, and battery voltage readings. The relay can operate via NMEA 2000 or discrete analog inputs, offering versatile control options for complex marine electrical setups. Additionally, it facilitates battery sharing and isolation, preventing dead start batteries and supporting two or three battery systems through expandable busbar interconnects. This product is ideal for marine environments requiring durable, flexible, and efficient power management components. Its compact design, combined with high performance and ease of installation, makes it an essential addition to modern marine electrical systems.

Features:

• Bullet-proof construction sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs

• Supports 500A continuous current and 1600A cranking per switch, suitable for all standard marine electrical systems

• Intuitive manual control option for easy operation and system state awareness, including manual override

• Simple dip switch programmability providing significant flexibility for OEMs and installers

• Consumes 90-95% less off-state current compared to traditional solutions

• Supports seamless NMEA 2000 integration to control switches, monitor switch status, and battery voltage

• Operates via NMEA 2000 or discrete analog inputs for versatile control options

• Reduces mounting space and weight by 35-75% using advanced bi-stable solenoid design and multiple assemblies

• Facilitates battery sharing and isolation to prevent dead start batteries, supporting two or three battery systems with busbar interconnects
