SKU:108563

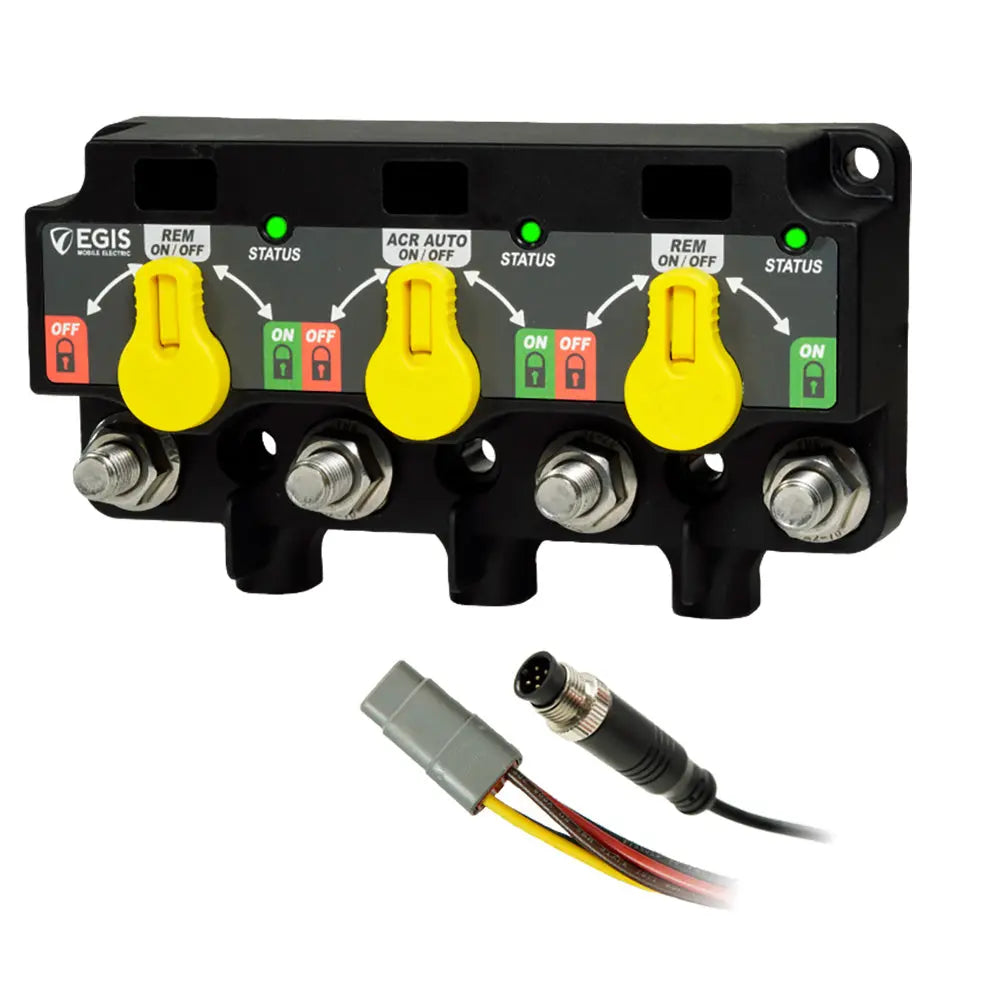

Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR with Knobs - 12 Position DT

Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR with Knobs - 12 Position DT

Regular price $279.99 USD
Sale price $279.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Triple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DT

Features:

  • Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
  • Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
  • Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
  • 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

  • Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
  • Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
  • 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
  • Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
  • Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

The Egis Mobile Electric Triple XD NMEA 2000 Relay/ACR with Knobs (Part Number 9831-2535) offers a robust solution for marine electrical systems, combining high-performance features with versatile control options. Designed for seamless integration with NMEA 2000 networks, this relay provides reliable switching capabilities with intuitive manual control, allowing operators to easily override system functions and monitor relay states. Its durable construction is sealed to IP67/IP6K9K standards, making it suitable for harsh marine environments while supporting high-temperature electronics and stainless steel cable lug studs for corrosion resistance. The product's large mounting holes accommodate common hardware, simplifying installation in tight spaces or on complex vessel layouts.

Features:

  • Bullet-proof Construction: Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs for durability in extreme conditions.
  • High Current Capacity: Supports 500A continuous and 1600A cranking per switch, compatible with all standard marine electrical systems.
  • Manual Control: Features an intuitive manual override with clear indication of lock-on or lock-off states, enhancing operational awareness (not available on competitive solutions).
  • Flexible Programmability: Easy-to-use dip switches enable configuration of relay functions, offering significant customization for OEMs and installers.
  • Low Off-State Current: Uses advanced bi-stable solenoid design to reduce off-state current by 90-95%, minimizing power consumption and system load.
  • NMEA 2000 Integration: Enables control switches, status monitoring, and battery voltage readings through seamless network connectivity.
  • Versatile Control Inputs: Operate via NMEA 2000 or discrete analog inputs, providing flexible control options to suit various system configurations.
  • Space and Weight Savings: Reduces mounting space by 35-75% with innovative design, while decreasing overall product weight for easier installation.
  • Battery Management: Eliminates dead start batteries by sharing charging across two batteries and isolating them when no charge sources are available.
  • Expandable System: Supports expansion with link and cross-link busbars for additional dual, triple, or single Egis XD relays, accommodating up to three battery systems.

Out of stock


View full details
