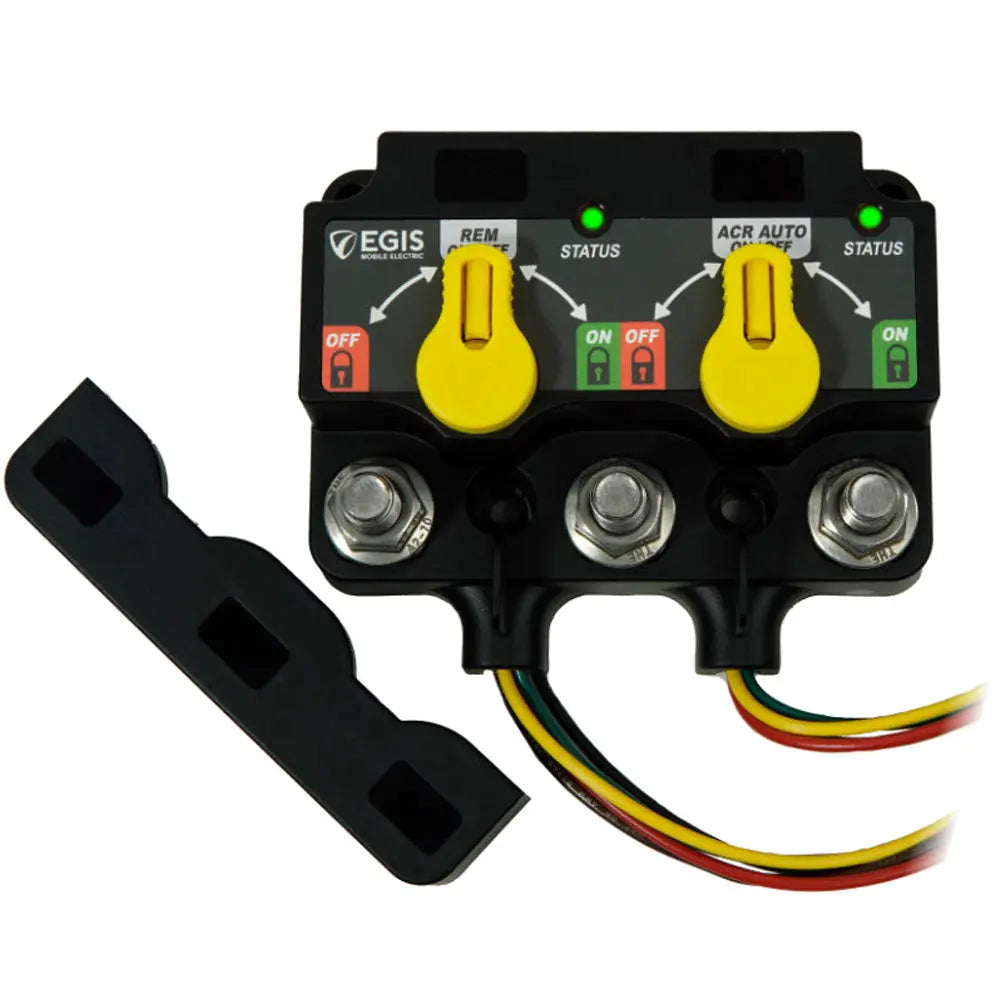

Egis Mobile Electric XD Dual Flex L ACR Relay with Knobs - Tinned Wires

XD Dual Flex L (ACR) -(Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Dual Flex L ACR Relay with Knobs is a high-performance electrical component designed for advanced battery management systems, including Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate configurations. This relay offers exceptional flexibility with higher charge and discharge voltage settings, making it suitable for demanding applications where standard settings are insufficient. Its robust design supports continuous operation at up to 500 amps per relay, ensuring reliable performance even in high-current scenarios. The compact footprint allows for efficient installation in tight spaces, ideal for both OEM installations and aftermarket upgrades. The relay features an intuitive front-facing manual override with locking capabilities, enabling technicians to lock the relay in ON or OFF positions during servicing or troubleshooting, thus enhancing safety and operational control. Flexible functionality is achieved through configurable dip switches, allowing the relay to serve as a disconnect, voltage sensing relay, or low voltage disconnect, providing versatile control options to meet diverse system requirements. Remote inputs for ON/OFF/Auto operation enable remote forced control, facilitating integration with existing vehicle or system control architectures. Local and remote LED indicators provide clear status updates, ensuring easy monitoring of relay states at a glance. An optional mechanical-only battery switch is available for one or multiple relay positions, offering a simple, reliable solution for battery isolation. Constructed to meet IP67/IP6K9K standards, the relay features sealed, waterproof housing with high-temperature electronics and stainless steel cable lug studs, suitable for harsh environments. Large mounting holes accommodate 1/4-20 or M6 hardware, simplifying installation. The Egis XD Dual Flex L relay is compatible with legacy products and offers plug-and-play integration with various relay configurations, reducing installation time and complexity. Its advanced bi-stable solenoid design reduces mounting space by up to 75%, lowering system weight and improving overall efficiency. Additionally, the relay consumes 90-95% less off-state current compared to similar products, contributing to lower system power consumption. Backed by a four-year industry-leading warranty, the Egis XD Dual Flex L ACR Relay assures durability and long-term reliability for demanding electrical systems.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs, suitable for harsh environments.

• Intuitive manual control with locking capability for safe servicing and operation awareness.

• Simple dip switch programming allows customizable relay functions for OEM and installer flexibility.

• Significant space and weight reduction through advanced bi-stable solenoid design, optimizing system layout.

• Plug-and-play compatibility with legacy relay products, including ML Series Bi-stable Relays, with pin-for-pin DTM/ATM connectors.

• Consumes 90-95% less off-state current compared to traditional relay solutions, improving energy efficiency.

• Remote control inputs for ON/OFF/Auto operation enable seamless integration with vehicle or system controls.

• Local and remote LED indicators provide clear status updates for quick monitoring and diagnostics.

• Optional mechanical-only battery switch for reliable battery isolation in single or multiple relay configurations.

• Supports higher voltage settings suitable for lithium-based battery systems, ensuring safe and efficient operation.
