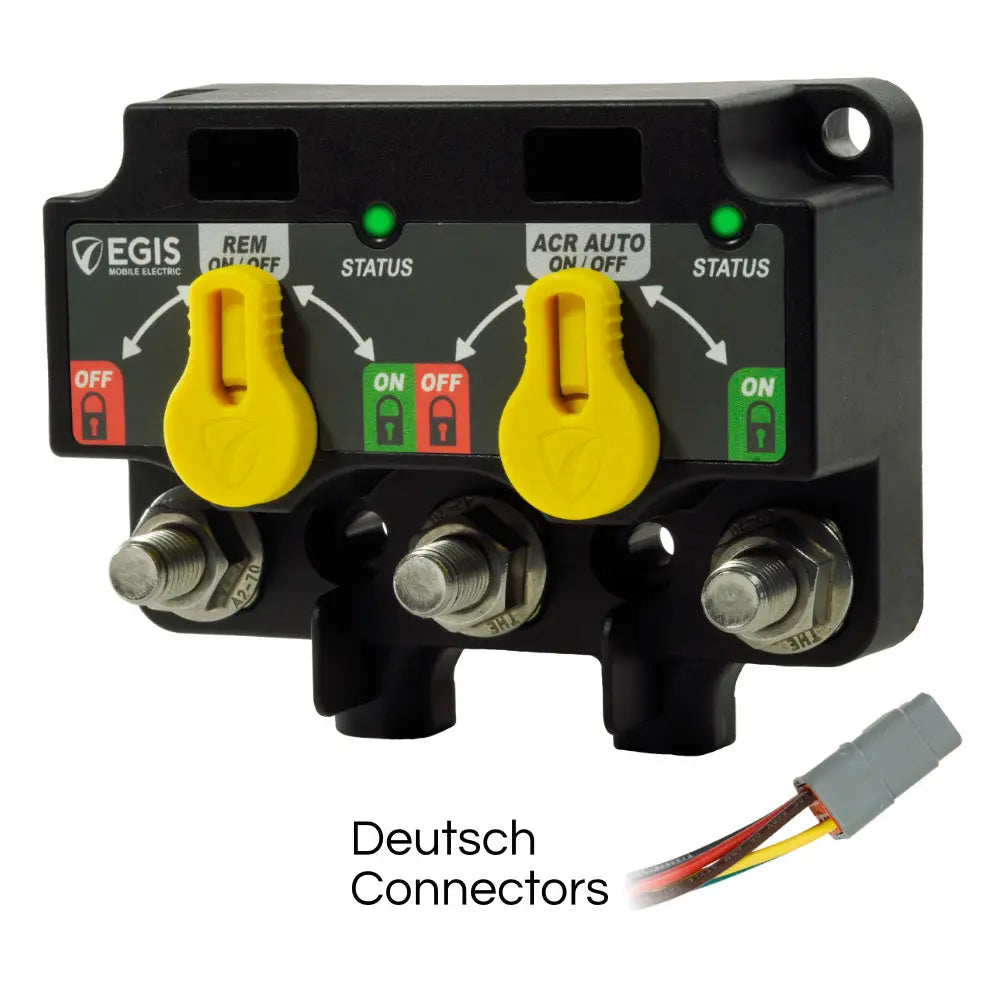

Egis Mobile Electric XD Flex 1 Dual Relay/Automatic Charging Relay with Knob - 6-Pin DTM Connector

XD Flex 1 Dual Relay/ACR with Knob - 6-Pin DTM Connector

Features:

• 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• Local and Remote LED Indicators for Each Relay

The Egis Mobile Electric XD Flex 1 Dual Relay/ACR with Knob is a versatile and high-capacity component designed for complex vehicle electrical systems. With a continuous capacity of 500 amps per relay, it delivers reliable performance even under demanding conditions. Its compact footprint makes installation straightforward in tight spaces, providing flexibility for various vehicle configurations. The relay features an intuitive front-facing manual override knob, which can be locked in the ON or OFF position for maintenance or safety purposes, ensuring easy control during servicing. The design supports multiple functional modes through dip switches, allowing it to serve as a relay, battery disconnect, automatic charging relay, or low voltage disconnect, adapting seamlessly to different electrical needs. It accommodates single or multiple engine setups with dual start and engine isolation inputs, facilitating sophisticated vehicle management. The remote control inputs enable forced open, close, or automatic operation based on voltage sensing, enhancing automation capabilities. Local and remote LED indicators for each relay provide clear status updates, aiding troubleshooting and system monitoring. The Egis XD Flex 1 relay is an ideal solution for complex vehicle electrical systems requiring durability, flexibility, and precise control, making it suitable for a wide range of automotive, RV, and marine applications.

Features:

• 500 Amp continuous capability per relay with a compact footprint

• Available with or without front-facing manual override knob that can be locked in ON or OFF position

• Flexible functionality through dip switches for use as relay, battery disconnect, automatic charging relay, or low voltage disconnect

• Supports single or multiple engine installations with dual start and engine isolation inputs

• Remote ON/OFF/Auto inputs enable forced or automatic operation based on voltage sensing

• Local and remote LED indicators provide clear status updates for each relay
