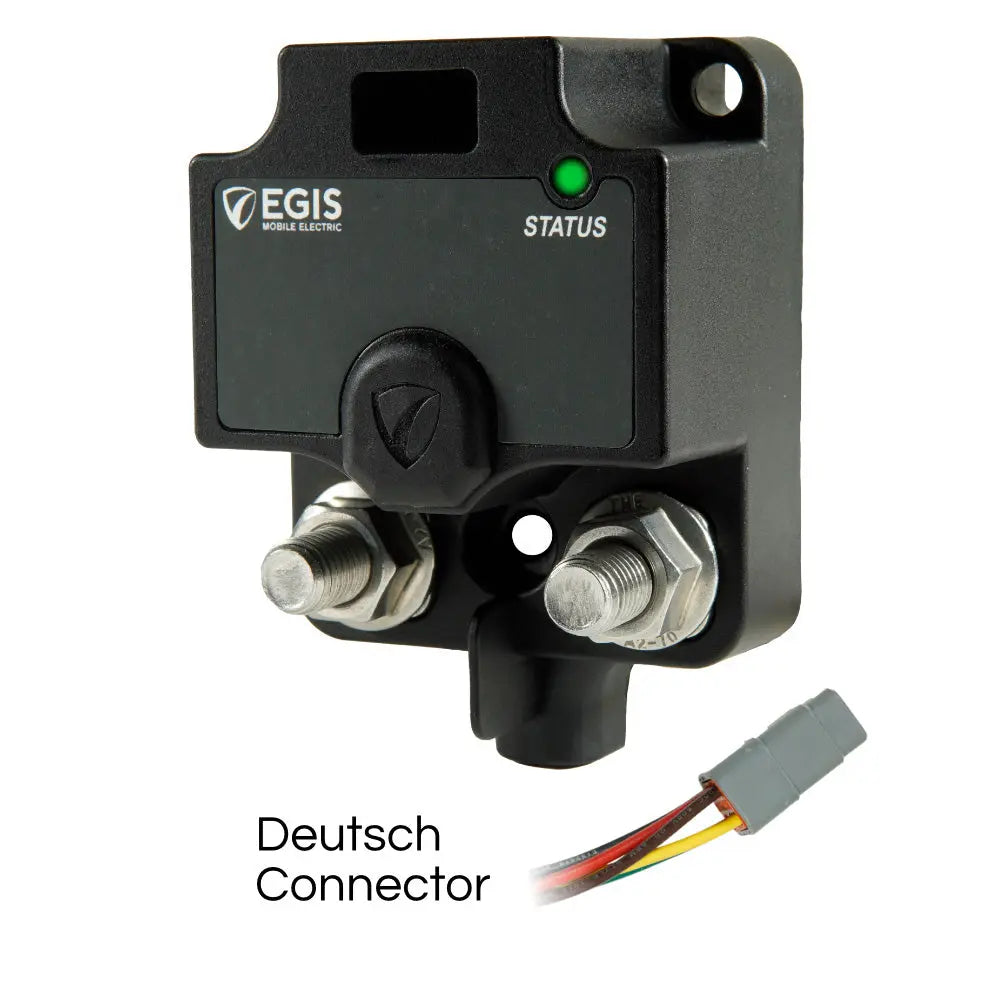

Egis Mobile Electric XD Flex 1 Single Relay/Automatic Charging Relay with 6-Pin DTM Connector

XD Flex 1 Single Relay/ACR without Knob - 6-Pin DTM Connector

Features:

• 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• Local and Remote LED Indicators for Each Relay

The Egis Mobile Electric XD Flex 1 Single Relay/ACR (Part Number 8810-1200) offers a robust solution for managing electrical systems in various vehicle applications. Designed with a compact footprint, this relay supports a continuous current capacity of up to 500 amps, making it suitable for high-demand automotive and marine setups. Its versatile design allows it to function as a relay, battery disconnect, automatic charging relay, or low voltage disconnect, configurable via internal dip switches for tailored operation.
The relay supports single or multiple engine installations with dual start and engine isolation inputs, providing flexibility for complex electrical configurations. Remote control capabilities include inputs for ON, OFF, or auto modes, enabling automatic operation based on voltage sensing or manual override. An optional front-facing manual override knob with lockable ON/OFF positions is available, facilitating service and safety procedures.
Local and remote LED indicators for each relay provide real-time status updates, ensuring reliable monitoring and troubleshooting. Its 6-pin DTM connector simplifies installation and integration into existing systems. The Egis XD Flex 1 is ideal for applications requiring high current handling, customizable operation modes, and remote control features, offering durability and flexibility for automotive, RV, and marine electrical systems.

Features:

• 500 Amp continuous current capacity per relay for high-demand applications

• Available with or without an intuitive front-facing manual override knob with lock function

• Flexible functionality via dip switches, supporting relay, battery disconnect, automatic charging, or low voltage disconnect modes

• Supports single/multiple engine installations with dual start and engine isolation inputs

• Remote ON/OFF/Auto inputs for forced or automatic operation based on voltage sensing

• Local and remote LED indicators for real-time status monitoring
