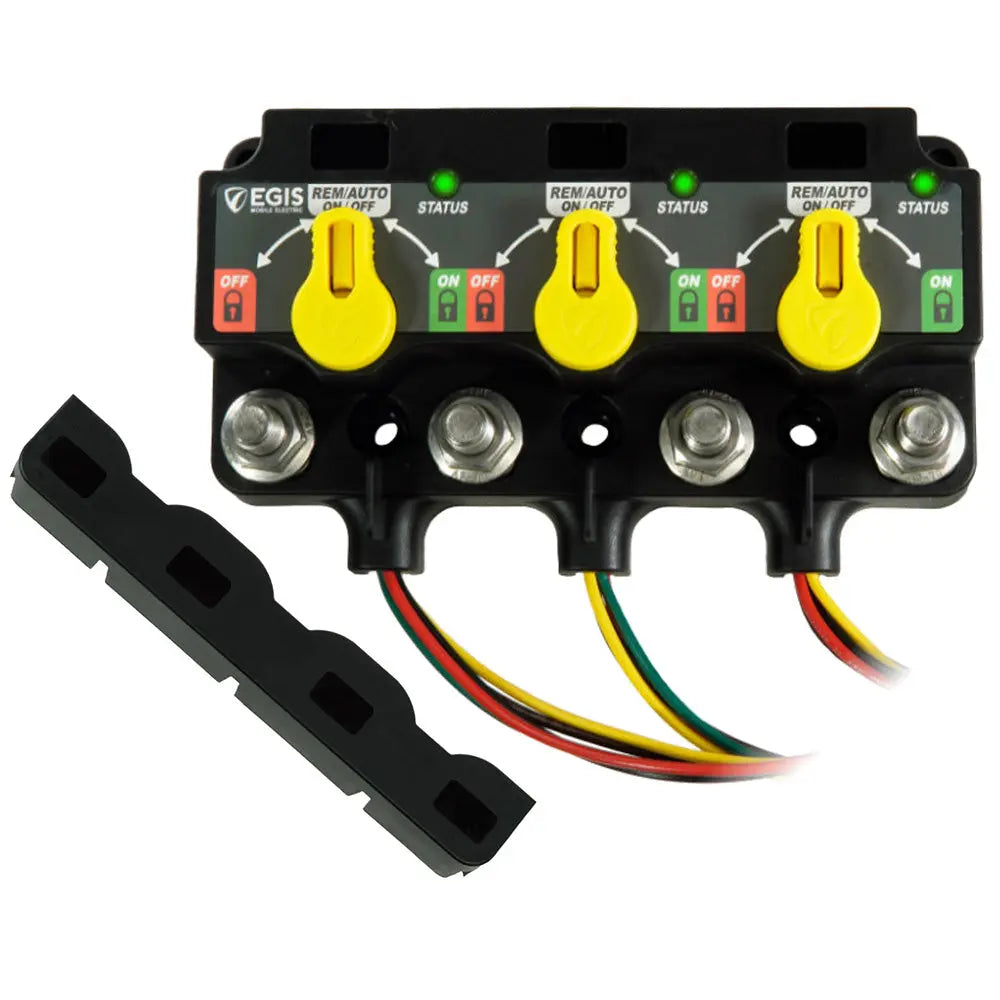

Egis Mobile Electric XD Flex L Triple Relay with Knobs - DTM (Part Number 8630-1535)

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
• Simple Robust Installation:Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
• Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
• Diagnostic Feedback:Via optional external LEDs control lines and on-board LEDs for each relay
• Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
• Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Flex L Triple relay is an advanced switching solution designed specifically for lithium-based battery systems including Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate. This relay provides higher charge and discharge voltage settings, making it suitable for demanding automotive and marine applications. Its compact footprint allows for easy installation in tight spaces, while its robust construction ensures durability and long-term reliability. The unit features three relays capable of handling up to 500 amps continuously per relay, providing ample power capacity for high-demand systems.
Each relay is equipped with optional intuitive front-facing manual override knobs that can be locked in the ON or OFF position for maintenance or safety purposes. The flexible functionality of the Egis XD Flex L allows configuration as a relay, battery disconnect, voltage sensing relay, or low voltage disconnect through simple dip switch settings. Remote control inputs enable automatic or manual operation, providing versatility in system management. Local and remote LED indicators for each relay facilitate quick status assessments, enhancing troubleshooting capabilities. The design includes a mechanical-only battery switch option for one or multiple relay positions, offering additional control and safety features.
Features such as ultra-low power draw at just 1.3 milliamps off-state current, sealed connectors like Deutsch/Amphenol DTM/ATM, and optional flying wire harnesses simplify installation and improve reliability. The unit’s high-temperature materials and integrated thermal overload protection allow mounting in challenging environments without risk. An external LED for diagnostics, along with onboard indicators, provides detailed feedback on relay status. The Egis XD Flex L is engineered to meet stringent OEM standards for electrical transient self-protection and includes a four-year industry-leading warranty, making it a dependable choice for complex battery management systems.

Features:

• Ultra-low power draw of only 1.3mA in the off state, reducing energy consumption

• Robust and sealed installation with Deutsch/Amphenol connectors; options for flying wire harnesses

• Versatile application as a remote battery disconnect, voltage sensing relay, or low voltage disconnect with external trigger options

• Diagnostic feedback through optional external LEDs and onboard indicators for each relay

• Durable sealed unit constructed with high-temperature materials, suitable for mounting in harsh environments

• Manual override knobs with lockable ON/OFF positions for safe servicing and backup operation

• Designed to meet OEM standards for electrical transient self-protection, ensuring system reliability

• Four-year industry-leading warranty providing long-term support and confidence
