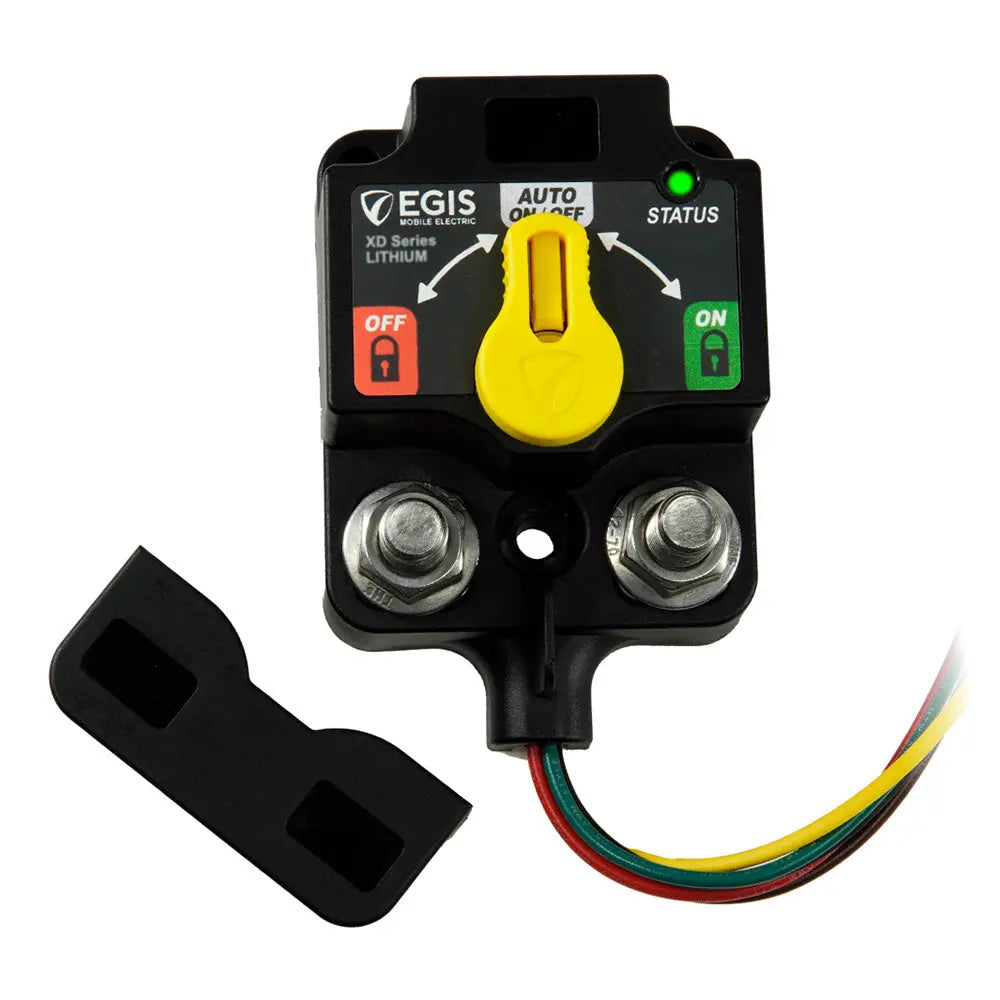

Egis Mobile Electric XD Flex L VSR with Knobs - 6-Pin DT Connector

XD Single Flex L VSR with Knobs - 6-Pin DT Connector

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Flex L VSR with Knobs (Part Number 8610-6300) is a versatile and robust relay system designed for high-performance battery management in demanding applications. Engineered to support Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate battery systems, this device allows for higher charge and discharge voltage settings, making it suitable for advanced energy storage solutions. Its 500 amp continuous current capacity per relay ensures reliable operation under heavy loads, while its compact footprint facilitates easy installation in constrained spaces. The unit features optional front-facing manual override knobs with locking capabilities, enabling precise control during maintenance or emergency scenarios, which is a distinct advantage over many competitive models. The flexible functionality is achieved through dip switches, allowing the relay to serve as a battery disconnect, voltage sensing relay, or low voltage disconnect, adaptable to various system requirements. Remote control inputs for ON/OFF/Auto modes enable seamless integration into automated systems, providing the ability to force relays into specific states or allow automatic operation based on voltage sensing. Local and remote LED indicators enhance operational awareness by providing real-time status updates for each relay, simplifying diagnostics and monitoring. Additionally, a mechanical-only battery switch option offers a straightforward solution for controlling one or multiple relay positions manually. Constructed with sealed IP67/IP6K9K-rated materials, the Egis XD Flex L VSR withstands harsh environmental conditions and high temperatures, ensuring durability and long-term reliability. It features stainless steel cable lug studs for secure connections and large mounting holes compatible with standard hardware, facilitating flexible installation options. The intuitive manual control feature simplifies operation, providing clear indication of manual override states, which is especially useful during troubleshooting or servicing. With simple dip switch programmability, each relay can be customized to meet specific OEM or installer needs, reducing setup complexity. Its advanced bi-stable solenoid design and multiple assemblies contribute to a 35-75% reduction in mounting space and weight compared to traditional systems, streamlining installation. The device is plug-and-play compatible with existing legacy products, including single, dual, and triple relay configurations with DTM/ATM connectors, ensuring seamless integration with current systems. Notably, the Egis XD Flex L VSR consumes 90-95% less off-state current than similar products, resulting in energy savings and reduced system load. Backed by a four-year industry-leading warranty, this relay system offers durability, flexibility, and efficiency for demanding battery management applications.

Features:

• Sealed to IP67/IP6K9K rating with high-temperature electronics and stainless steel cable lug studs for durability in harsh environments

• Intuitive manual control with locking override knobs for safe and straightforward operation during maintenance

• Simple dip switch programming for customizable relay functions, including disconnect, voltage sensing, and low voltage protection

• Compact design with 35-75% space and weight reduction thanks to advanced bi-stable solenoid technology

• Plug-and-play compatibility with legacy products, supporting single, dual, and triple relay configurations with DTM/ATM connectors

• Significantly reduced off-state current, consuming up to 95% less than comparable systems, enhancing energy efficiency

• Remote and local LED indicators for real-time status monitoring and diagnostics

• Mechanical-only battery switch option for manual control of one or multiple relays

• Supports higher charge/discharge voltage settings suitable for lithium-based battery systems

• Four-year industry-leading warranty ensuring reliable long-term performance
