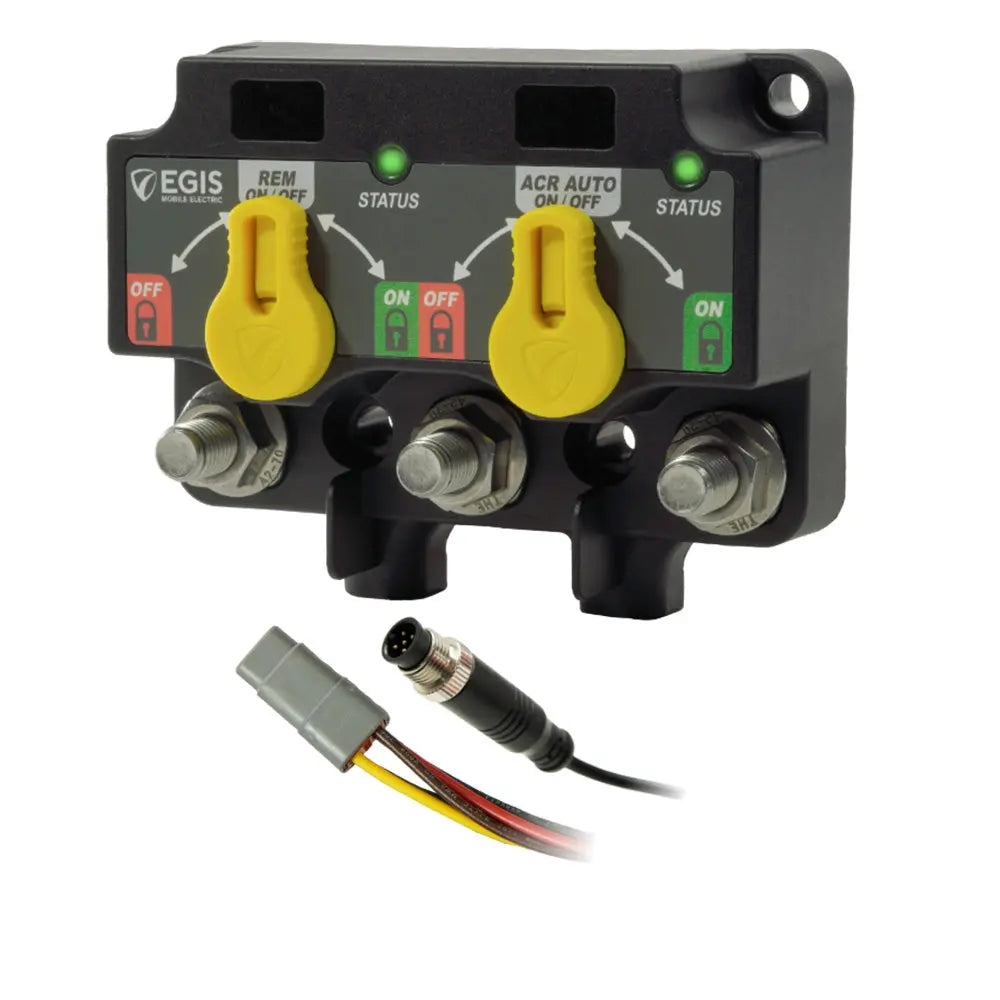

Egis Mobile Electric XD NMEA 2000 Dual Relay and Voltage Sensing Relay with Knobs, 8-Pin DT Connector

XD NMEA 2000 Dual Relay/VSR with Knobs 8-Pin DT Connector

XD NMEA 2000 Dual Relay/VSR with Knobs is a high-power, dual-circuit marine and vehicle electrical management device. It combines a remote battery switch and an Automatic Charging Relay (ACR) / Voltage Sensing Relay (VSR) into a single compact, programmable module.

Features:

• NMEA 2000 Integration: Allows seamless remote control and real-time monitoring of battery voltage and switch status directly from compatible Multi-Function Displays (MFDs).
• High Capacity: Supports continuous loads up to 500A and cranking loads up to 1600A per switch, making it suitable for heavy-duty marine or work truck systems.
• Manual Override Knobs: Includes intuitive 3-position local knobs that allow you to manually force relays Open or Closed and lock them in place.
• Smart Charge Management: Eliminates dead start batteries by automatically sharing charging sources (e.g., an alternator) and isolating batteries when no charging is present.
• Programmability: Easily configurable via built-in dip switches to customize voltage offsets and delay settings.
• Bulletproof Construction: Sealed to IP67/IP6K9K standards, featuring high-temperature electronics and corrosion-resistant stainless-steel hardware.

The Egis Mobile Electric XD NMEA 2000 Dual Relay/VSR with Knobs is a robust, high-capacity electrical management device designed for marine and vehicle applications. This compact module combines a remote battery switch with an Automatic Charging Relay (ACR) and Voltage Sensing Relay (VSR), providing efficient power control and battery management. Its seamless integration with NMEA 2000 protocol allows users to monitor battery voltage and switch status remotely through compatible Multi-Function Displays (MFDs), simplifying system oversight and diagnostics. With support for continuous loads up to 500 amps and cranking loads reaching 1600 amps per switch, this device is built for demanding environments such as heavy-duty trucks and marine vessels. The manual override knobs offer intuitive control, enabling users to manually open or close relays and lock their positions for safety and convenience. The smart charge management feature ensures batteries remain charged and ready by automatically sharing charging sources like alternators and isolating batteries when no charging is occurring. Programmability via built-in dip switches allows customization of voltage offsets and delay times, optimizing performance for various applications. Constructed to withstand harsh conditions, the Egis XD NMEA 2000 Dual Relay/VSR features sealed IP67/IP6K9K ratings, high-temperature electronics, and corrosion-resistant stainless-steel hardware, ensuring durability and reliability in demanding marine or industrial environments.

Features:

• NMEA 2000 Integration: Enables remote control and real-time monitoring of battery systems via compatible Multi-Function Displays (MFDs).

• High Capacity: Supports continuous loads up to 500 amps and cranking loads up to 1600 amps per switch for heavy-duty applications.

• Manual Override Knobs: Features three-position knobs for manual control to open or close relays and lock their positions.

• Smart Charge Management: Automatically shares charging sources like alternators and isolates batteries to prevent dead starts.

• Programmability: Allows customization of voltage offsets and delay settings through built-in dip switches.

• Bulletproof Construction: Sealed to IP67/IP6K9K standards with high-temperature electronics and corrosion-resistant stainless-steel hardware for durability.
