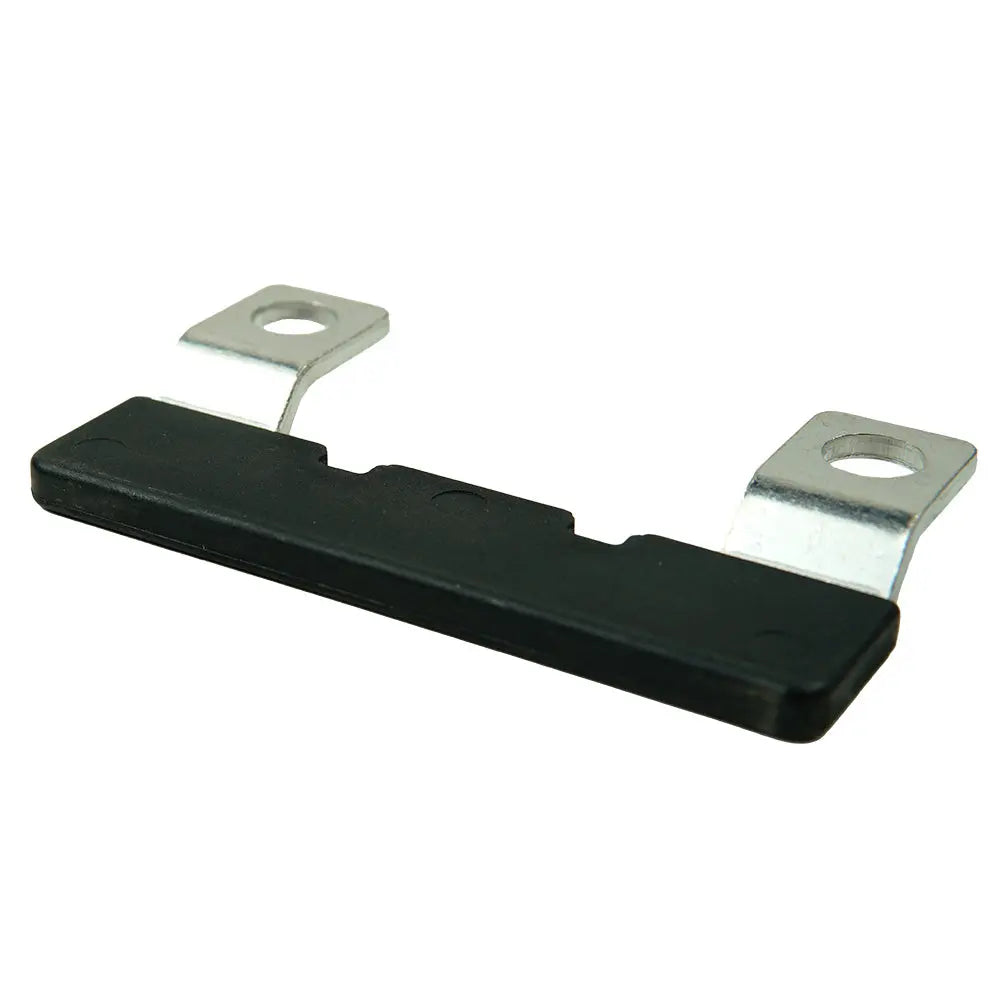

Egis Mobile Electric XD Relay Cross-Over Bus Bar Part 8791 – 500 Amp Capacity for Reliable Circuit Linking

XD Relay Cross-Over Bus Bar

The XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.

Features:

• Tin-plated copper ensures reliable circuit connectivity and anti-corrosive features keep it last long term.
• Robust Protective Insulation ensures no accidental contact shorts between XD relays.

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 90 x 47mm
• Thickness: 2.8mm (1/8)
• Terminal Stud Hole Size: 10.5mm (3/8)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Relay Cross-Over Bus Bar Part 8791 is designed to facilitate seamless connection among Egis XD Single, Dual, and Triple relays, as well as the Egis 8700 Mechanical Disconnect. Its versatile configuration capabilities enable compact installations and enhance circuit switching efficiency, making it ideal for battery management systems and complex relay arrangements. Constructed from durable, tin-plated copper, this bus bar ensures reliable electrical connectivity while resisting corrosion over long-term use. The robust protective insulation prevents accidental contact shorts between relays, promoting safety and operational stability. With a continuous current rating of 500 amps and a maximum voltage of 72 volts DC, this bus bar supports high-power applications in demanding environments. Its compact size allows easy integration into various electrical setups without occupying excessive space. The terminal stud hole size of 10.5 mm (3/8 inch) ensures secure connections, and the 2.8 mm (1/8 inch) thickness provides strength and durability. The Egis XD Relay Cross-Over Bus Bar is an essential component for technicians requiring reliable relay linkage and efficient circuit management in automotive, industrial, and renewable energy systems. Please note, this product contains chemicals known to the State of California to cause health hazards, and proper handling precautions are advised. For more safety information, visit P65Warnings.ca.gov.

Features:

• Tin-plated copper construction ensures reliable electrical connectivity and corrosion resistance.

• Robust protective insulation prevents accidental shorts between relays.

• Supports continuous current up to 500 amps and up to 72 volts DC, suitable for high-power applications.

• Compact design with secure terminal stud holes for easy installation.

• Compatible with Egis XD Single, Dual, Triple relays, and Egis 8700 Mechanical Disconnect for flexible circuit configurations.
