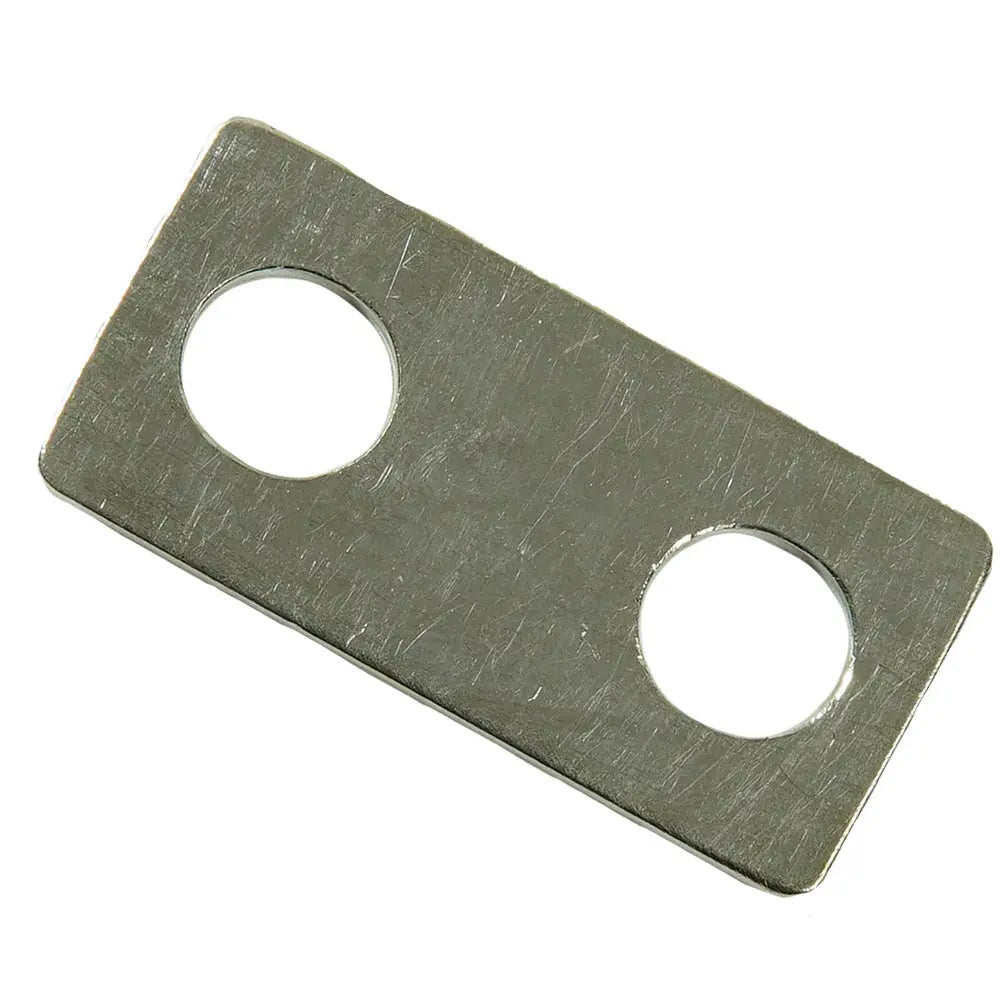

Egis Mobile Electric XD Relay Link Busbar Part 8790 for Reliable Circuit Connections

XD Relay Link Busbar

This tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.

Applications

Link Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.

Features:

• Great electrical conductivity with anti-corrosion tin plating keeps connections reliable
• This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening
• Save install space by linking XD Relays together for even more capability and maintain a professional-looking install

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 47.8mm x 22.8mm
• Thickness: 2.8mm (1/8)
• Terminal Stud Hole Size: 10.5mm (3/8)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Relay Link Busbar Part 8790 is a high-quality, tin-plated copper link designed to seamlessly connect XD single, dual, and triple relays, as well as the Egis 8700 Mechanical Disconnect. Its durable construction and corrosion-resistant finish ensure long-lasting, reliable performance in demanding electrical applications. This busbar enables compact installation configurations, reducing space while providing robust circuit switching and efficient battery management. Whether used in automotive, industrial, or power systems, it helps streamline wiring and improve system reliability.

Constructed from high-conductivity, tin-plated copper, the busbar features a sturdy build that withstands high amperage loads without deformation, even under tight nut installation. This toughness ensures consistent electrical performance and minimizes maintenance issues. The busbar's design allows for easy linking of multiple relays, facilitating complex circuit arrangements within a compact footprint. Its size and terminal stud hole accommodate standard connections, simplifying installation and maintenance processes.

Designed for maximum utility, this busbar supports continuous currents of up to 500 amps and a maximum voltage of 72VDC, making it suitable for a wide range of electrical systems. The 2.8mm thickness and 10.5mm terminal stud hole size further enhance its robustness and compatibility with various wiring setups. Its reliable performance and space-saving design make it an essential component for professional electrical installations that demand durability and efficiency.

Features:

• Great electrical conductivity with anti-corrosion tin plating keeps connections reliable

• Tough construction able to withstand high amperage loads and resist deformation from nut-tightening

• Helps save install space by linking multiple XD relays for enhanced capability and professional appearance
