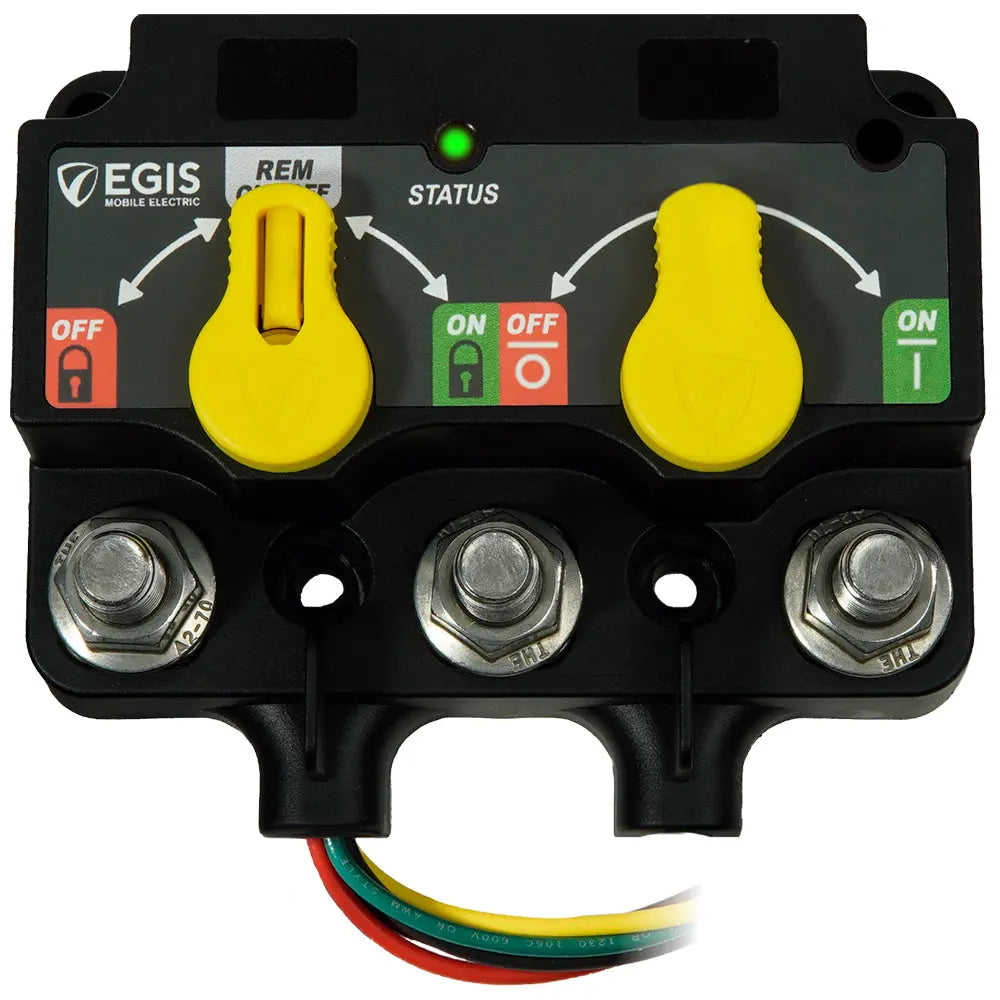

XD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying Wires

Features

• Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

LED Status Display

Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED

3-Position Manual Override

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

Programmable

Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

Integrated Vent

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

The Egis Mobile Electric XD Series Dual Flex 2 (ACR-Mech Only) with Knobs is a high-performance relay module designed for efficient battery and charge management in demanding applications. Replacing two individual high-current relays with a single compact unit, it significantly reduces installation space, simplifies wiring, and enhances operational clarity. Its integrated design eliminates external link cables, minimizing vibration-related connection issues and providing clear manual control indicators for effortless operation and troubleshooting. Crafted to replicate common multi-battery switching functions, this relay enables seamless switching between dual batteries and automatic charge sharing through a central automatic charging relay (ACR), making system setup and management straightforward and reliable.

This relay supports multiple automatic charging relays within one device, ideal for 2-3 battery systems requiring 1 or 2 ACRs. It offers substantial reductions in quiescent current, decreases space requirements, and reduces unnecessary interconnect cables, contributing to a cleaner and more efficient electrical setup. The Egis XD Series Dual Flex 2 is expandable with link and cross-link busbars, supporting configurations for dual, triple, or single battery systems. Its robust construction is sealed to IP67/IP6K9K standards, with high-temperature electronics and stainless steel cable lug studs, allowing installation in harsh environments without concern for corrosion or moisture ingress.

User-friendly features include an intuitive manual control with a three-position knob, enabling manual override to lock relays in open or closed positions. The device also offers simple dip switch programmability for customization to specific system needs. Its compact bi-stable solenoid design reduces overall size and weight, facilitating easier installation in tight spaces. The relay is plug-and-play compatible with legacy products, ensuring seamless integration into existing systems. Additionally, it boasts a remarkable 90-95% reduction in off-state current compared to comparable solutions, leading to energy savings and improved system efficiency. The integrated LED status indicator provides immediate visual feedback on device operation, while a weatherproof protective cover safeguards terminal connections. The included circuit label sheet aids in clear identification, and the high-quality stainless hardware ensures durability over extended use. Overall, the Egis XD Series Dual Flex 2 offers a reliable, space-efficient, and versatile solution for advanced battery management in automotive, RV, or industrial applications.
