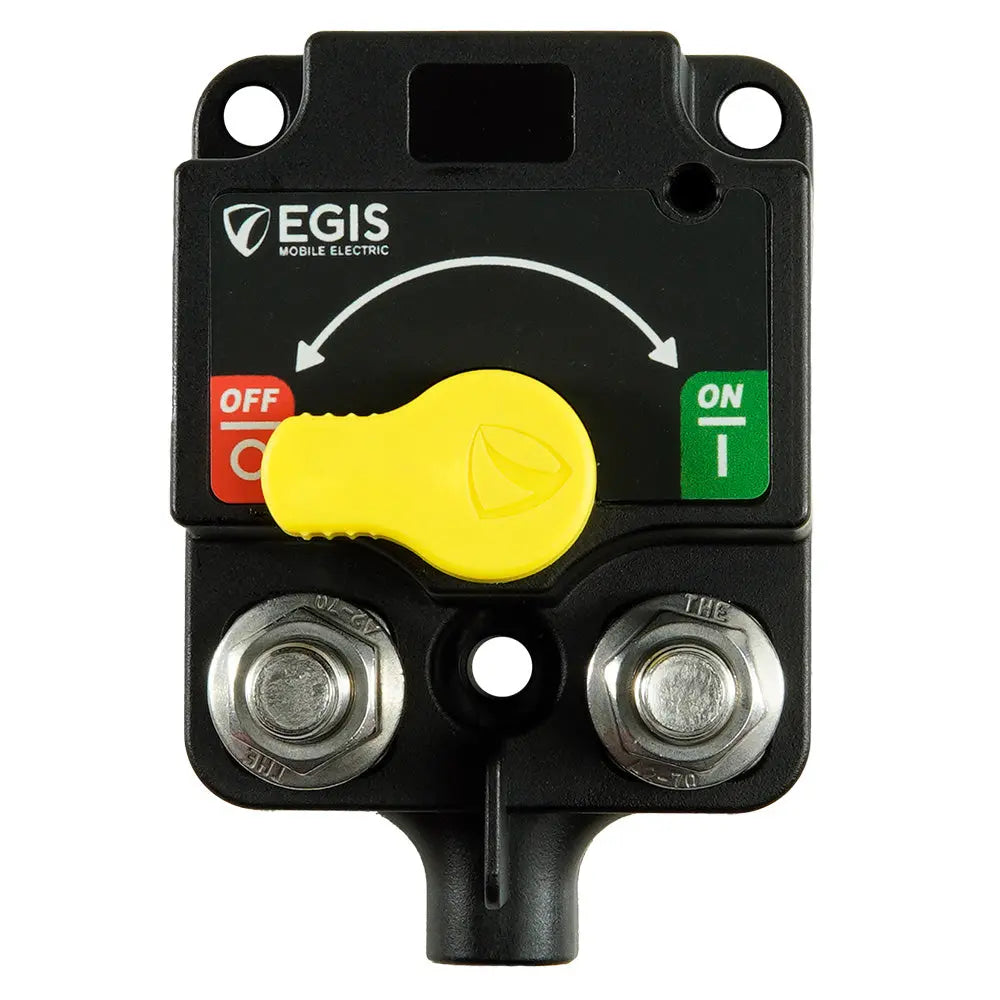

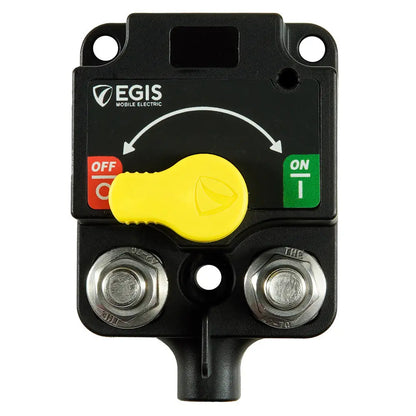

Egis Mobile Electric XD Series Single 500 Amp Heavy Duty Battery Switch and Mechanical Contactor

XD Series Single 500 Amp Heavy Duty Battery Switch/Mechanical Contactor

Features:

• Silver Alloy Contact Points support high ampere/full voltage switching capability versus legacy rotary style switches.
• Expandable: Integrate the 8700 XD Battery Disconnect easily with XD Series FLEX/ACR/LVD relays via using optional 8790 Link and 8791 Cross Link Busbars for easy integration with other Single, Dual, or Triple Circuit XD relays.
• Terminal Stud Protection: Included protective cover with convenient label recesses ensures no accidental shorts occur and allows for easy identification of circuits long term.
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control: Bright yellow knob and intuitively easy-to-read on/off label simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state.
• Ignition Protected: Safe for installation in gasoline-powered boats and other combustible installation environments.
• Sealed IP67 Construction keeps moisture out, and the integrated Gore-Tex pressure regulation vent increases its ability to operate reliably for long-term harsh environment operation.
• Compact Case Design allows for easy surface mount or rear panel installs, and the rectangular shape (narrower than competing products) makes finding a mounting location easy.

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Terminal Stud Size (mm): M10
• Voltage Range (VDC): 8-36
• Ingress Protection: IP67/IP6K 9K
• Contact Materials: Silver Alloy

Focal Features:

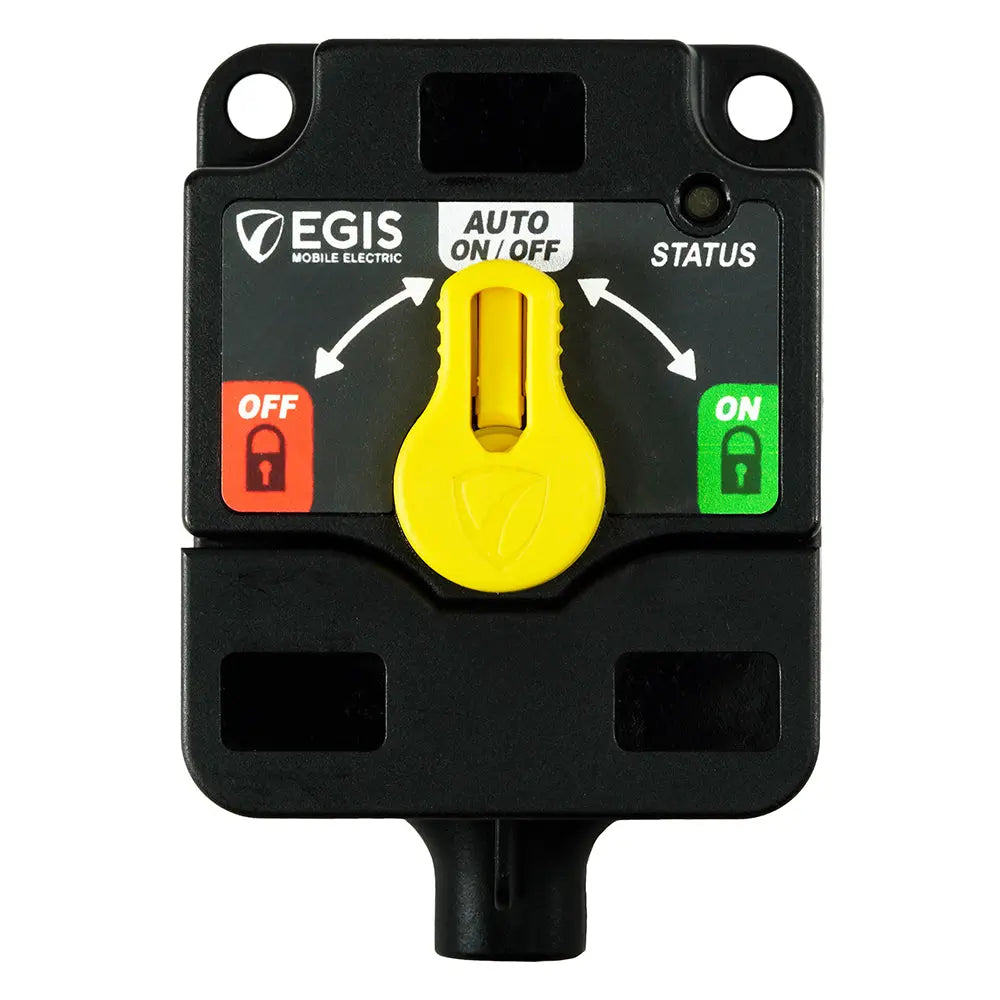

High Visibility Knob

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

Smaller Footprint

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

Integrated Vent

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

The Egis Mobile Electric XD Series Single 500 Amp Heavy Duty Battery Switch/Mechanical Contactor is designed for reliable high-current switching in demanding environments. Featuring silver alloy contact points, this switch supports high ampere and full voltage switching capabilities, outperforming traditional rotary switches. Its robust sealed IP67/IP6K9K construction ensures protection against dust and water ingress, making it suitable for harsh conditions, including marine and automotive applications. The device's high-temperature electronics and stainless steel cable lug studs allow for versatile mounting options, whether surface or rear panel, with a compact rectangular design that minimizes space requirements. The integrated Gore-Tex pressure regulation vent enhances long-term durability by preventing moisture buildup, ensuring reliable operation over time. The switch's intuitive bright yellow knob and easy-to-read on/off labels facilitate manual control, allowing operators to lock the relay in either the open or closed position for added safety and operational certainty. The included protective cover shields terminal studs from accidental shorts, while the 40 circuit label sheet simplifies circuit identification, supporting customization and maintenance. With a maximum cranking current of 1500 amps and a voltage range spanning 8V to 36V DC, this switch is ideal for vehicle, marine, or industrial applications where dependable power management is critical. The ability to integrate seamlessly with other XD Series relays using optional link and busbar accessories enhances its versatility for complex electrical systems. Constructed with durable stainless steel hardware and featuring a smaller footprint than competing products, the Egis XD Series 500 Amp Battery Switch offers a combination of power, durability, and ease of installation, making it a reliable choice for demanding electrical setups.

Features:

• Silver alloy contact points support high ampere/full voltage switching capabilities.

• Expandable design allows integration with XD Series FLEX/ACR/LVD relays via optional link and busbar accessories.

• Protective cover with label recesses ensures terminal stud safety and easy circuit identification.

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel hardware for durability.

• Bright yellow knob and clear labels enable intuitive manual control and locking functionality.

• Ignition protected, suitable for installation in gasoline-powered boats and combustible environments.

• IP67 sealed construction with Gore-Tex vent for long-term reliable operation in harsh environments.

• Compact rectangular case design facilitates easy surface or rear panel mounting with minimal space.
