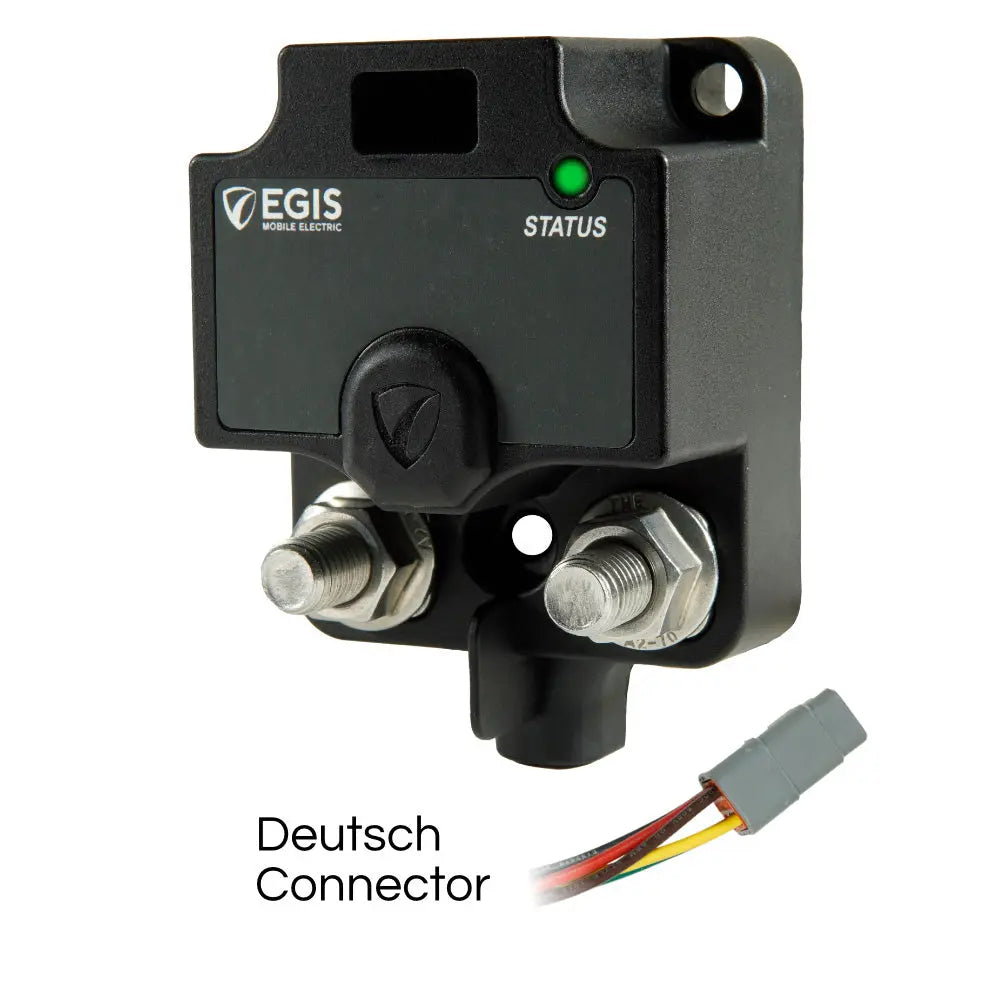

Egis Mobile Electric XD Series Single Flex 2 ACR-Relay with DTM Connector

XD Series Single Flex 2 ACR-Relay - DTM Connector

This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Applications:

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories

Features:

• Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware
• The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers
• Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual Override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis XD Series Single Flex 2 ACR-Relay is a high-performance bi-stable relay designed for versatile automotive and heavy-duty applications. Featuring advanced bi-stable solenoid technology, this relay reduces mounting space and weight by 35-75% compared to traditional relays, making it ideal for constrained installation environments. The relay supports multiple engine or independent charge systems by incorporating two separate start or engine isolation inputs, maximizing charging efficiency and system reliability. Its expandable design allows for seamless integration with link and cross-link busbars, supporting up to three battery systems with standard interconnect accessories, which enhances system flexibility and scalability.

Constructed to withstand harsh conditions, the relay is sealed to IP67/IP6K9K standards and built with high-temperature electronics and corrosion-resistant stainless steel cable lug studs. Its large mounting holes accommodate 1/4-20 or M6 hardware, facilitating easy installation in various orientations. The intuitive manual control feature simplifies operation, enabling users to lock or unlock the relay manually, providing critical system control and awareness—an advantage not commonly available on competitive products. Programmability via simple dip switches allows installers and OEMs to customize relay functions easily, ensuring compatibility with a broad range of systems.

The Egis XD Series relay is compatible with legacy products, featuring DTM/ATM connector pins for plug-and-play integration with ML Series bi-stable relays. It boasts an off-state current draw of only 1.3 mA—up to 95% less than comparable relays—reducing system power consumption significantly. The relay is rated for continuous currents up to 500 amps with a maximum cranking current of 1500 amps, offering durability with a mechanical switching life of 1,000,000 cycles. Its LED status indicator provides visual feedback on device operation, and a remote LED option ensures status monitoring from a distance.

Additional features include a protective cover to prevent shorts, weatherproof circuit labeling, stainless hardware for corrosion resistance, and integrated Gore-Tex vents that regulate internal pressure and prevent moisture ingress, ensuring long-term reliability in demanding environments. The compact footprint of the XD Series reduces installation space requirements while maintaining high amperage ratings, making it an efficient choice for complex electrical systems. Overall, this relay combines durability, flexibility, and ease of use, delivering reliable performance in critical automotive and industrial applications.

Features:

• Bi-stable solenoid design for space and weight reduction

• Supports multiple engine and charge systems with dual inputs

• Expandable with busbar accessories for multi-battery configurations

• Sealed to IP67/IP6K9K for harsh environment durability

• Stainless steel hardware for corrosion resistance

• Intuitive manual override with lock feature

• Simple dip switch programmability for customization

• Plug-and-play compatibility with legacy relay systems

• Ultra-low off-state current, up to 95% less than competitors

• High continuous current capacity with 1 million cycle lifespan

• Visual LED status indicators for easy monitoring

• Weatherproof circuit labels included for easy identification

• Protective cover to prevent accidental shorts

• Integrated Gore-Tex vents for moisture management

• Compact size reduces installation footprint
