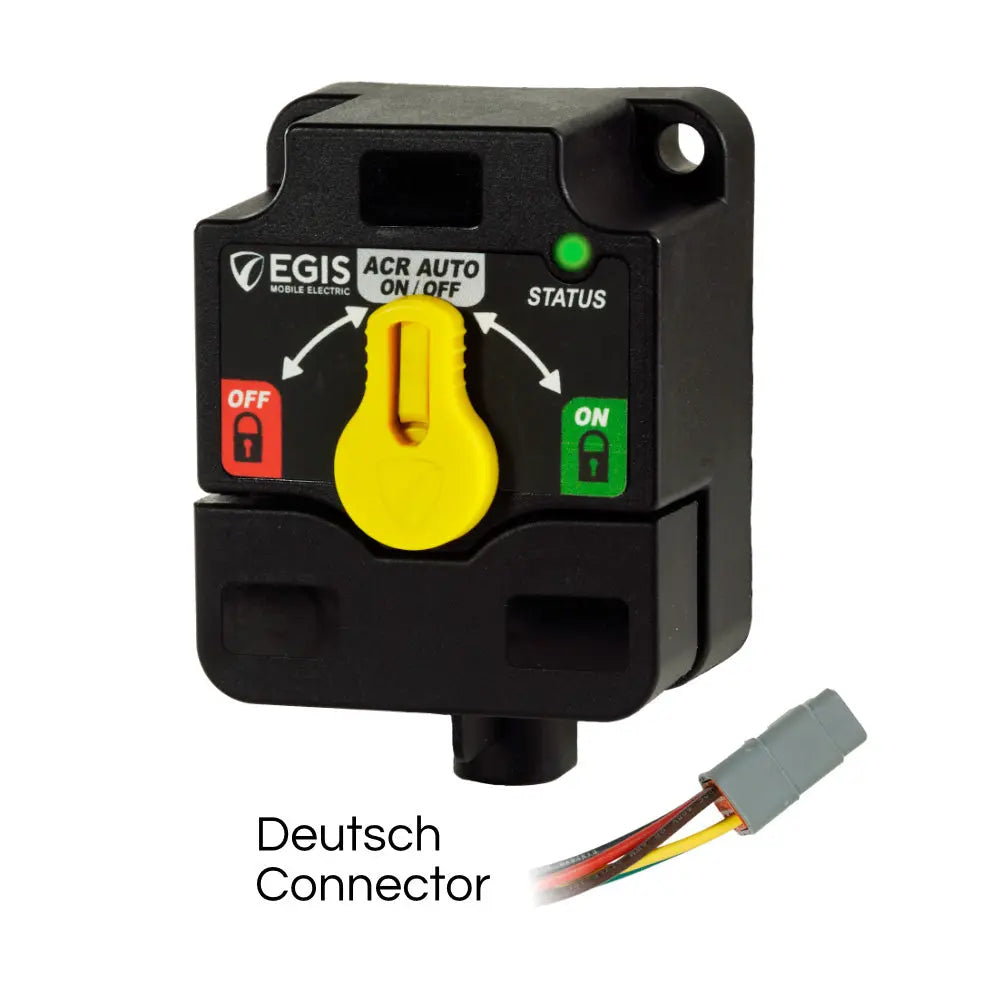

Egis Mobile Electric XD Series Single Flex 2 ACR-Relay with Knobs - DTM Connector

XD Series Single Flex 2 ACR-Relay with Knobs - DTM Conn

This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Applications:

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware
• The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers
• Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual Override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis XD Series Single Flex 2 ACR-Relay with Knobs is designed to optimize space and performance in automotive and industrial applications. Featuring a bi-stable solenoid design, this relay provides a 35-75% reduction in mounting space and weight compared to traditional relays. Its advanced construction supports multiple engine setups and independent charge systems, making it ideal for complex electrical configurations. The relay's ability to share charging between two batteries and isolate them when no charge sources are present enhances system reliability and efficiency.

Built for durability, the Egis relay is sealed to IP67/IP6K9K standards, with high-temperature electronics and stainless steel cable lug studs that allow mounting in harsh environments. The large mounting holes accommodate 1/4-20 or M6 hardware, simplifying installation. An intuitive manual control with a 3-position knob allows operators to override automatic functions easily, providing enhanced operational awareness and safety. The relay's simple dip switch programmability offers flexible configuration options, enabling customization for various OEM and installer needs.

Compatibility with Legacy products is seamless, with plug-and-play design using DTM/ATM connector pins, supporting single, dual, or triple configurations through busbar interconnect accessories. The Egis relay boasts a high continuous current capacity of 500 amps and can handle cranking currents up to 1500 amps, ensuring reliable startup performance. Its mechanical switching life exceeds 1 million cycles, promising long-term durability. The low off-state current draw of just 1.3 mA drastically reduces power consumption during standby, making it highly efficient.

Additional features include a front-facing LED status indicator and a remote LED for easy monitoring, a built-in weatherproof protective cover, and corrosion-resistant stainless hardware. The inclusion of a circuit label sheet and protective vents further enhances usability and longevity in demanding environments. The Egis XD Series relay combines compact size, high current capacity, and versatile features, making it an essential component for vehicle or system electrical management. Its robust design and flexible functionality support a wide range of applications, ensuring reliable performance in various operational conditions.

Features:

• Bi-stable solenoid design reduces mounting space and weight

• Supports multiple engine and charge system configurations

• Sealed to IP67/IP6K9K standards for harsh environment durability

• Large mounting holes for easy installation

• Intuitive manual override with lockable knob

• Simple dip switch programmability for customization

• Plug-and-play compatibility with legacy products

• High continuous current capacity of 500 amps

• Cranking current up to 1500 amps for reliable startups

• Mechanical switching life of over 1 million cycles

• Low off-state current draw at 1.3 mA

• Front-facing LED status indicator and remote LED

• Weatherproof protective cover included

• Corrosion-resistant stainless hardware

• Includes circuit label sheet for easy identification

• Integrated Gortex vent for moisture regulation
