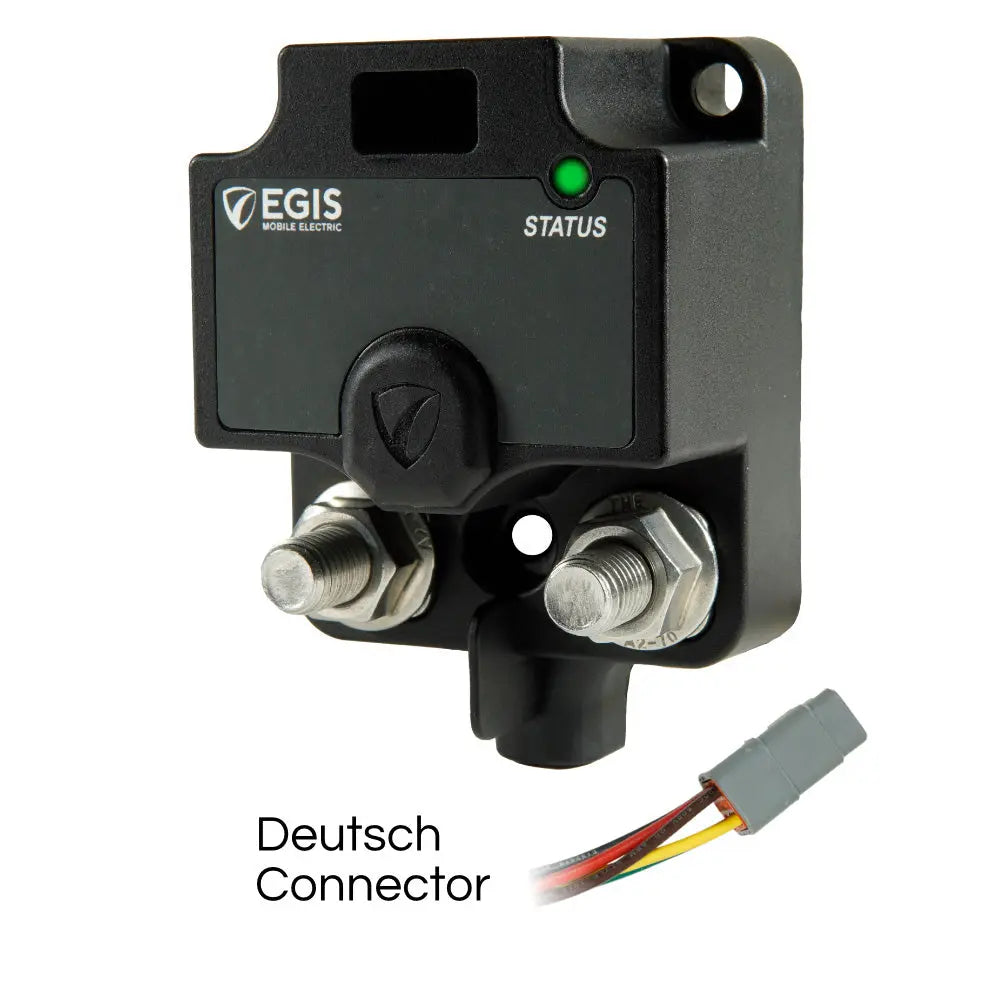

XD Series Single Flex 2 Relay-ACR - DTM Connector
This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.
Applications:
Features:
Specifications:
Focal Features:
Led Status Display
The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.
40 Circuit Label Sheet Included
Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.
Protective Cover Included
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Integrated Vent
High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
Stainless Hardware
Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.
Programmable
Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.
Smaller Footprint
XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR is designed to optimize space and weight in electrical systems with its advanced bi-stable solenoid technology. This relay provides a 35-75% reduction in mounting space and product weight, making it ideal for compact and high-performance applications. Its expandable architecture allows easy integration with link and cross-link busbars to connect with additional dual, triple, or single relays, supporting up to three battery systems with standard busbar interconnect accessories. This flexibility makes it suitable for a wide range of automotive, marine, and industrial uses, offering a reliable upgrade or replacement for legacy solenoids and remote battery switches.
Constructed with durability in mind, the Egis XD relay features a sealed IP67/IP6K9K enclosure and high-temperature electronics, enabling installation in harsh environments. Large mounting holes accommodate 1/4-20 or M6 hardware, and stainless steel cable lug studs ensure corrosion resistance. The relay's forward-facing input studs facilitate large wire landings, while a protective cover with integrated label recesses simplifies circuit identification and provides short protection. The included weatherproof label sheet and integrated venting system, utilizing Gortex vents, enhance long-term reliability by preventing moisture ingress and maintaining internal pressure balance.
Programmability via simple dip switches provides significant flexibility for OEMs and installers, allowing customized configurations without complex tools. The relay's LED status indicator offers clear, front-facing visual feedback, with a remote LED option for remote monitoring. The compact size of the Egis XD relay delivers high current capacity—up to 500 continuous amps and 1,500 cranking amps—within a footprint smaller than many competing solutions, reducing installation space requirements significantly. With a mechanical life of 1 million cycles and low off-state current draw, it ensures long-lasting performance and minimal power consumption. This product is compatible with legacy systems featuring DTM/ATM connector pins, ensuring seamless integration with existing setups and a straightforward upgrade path.
