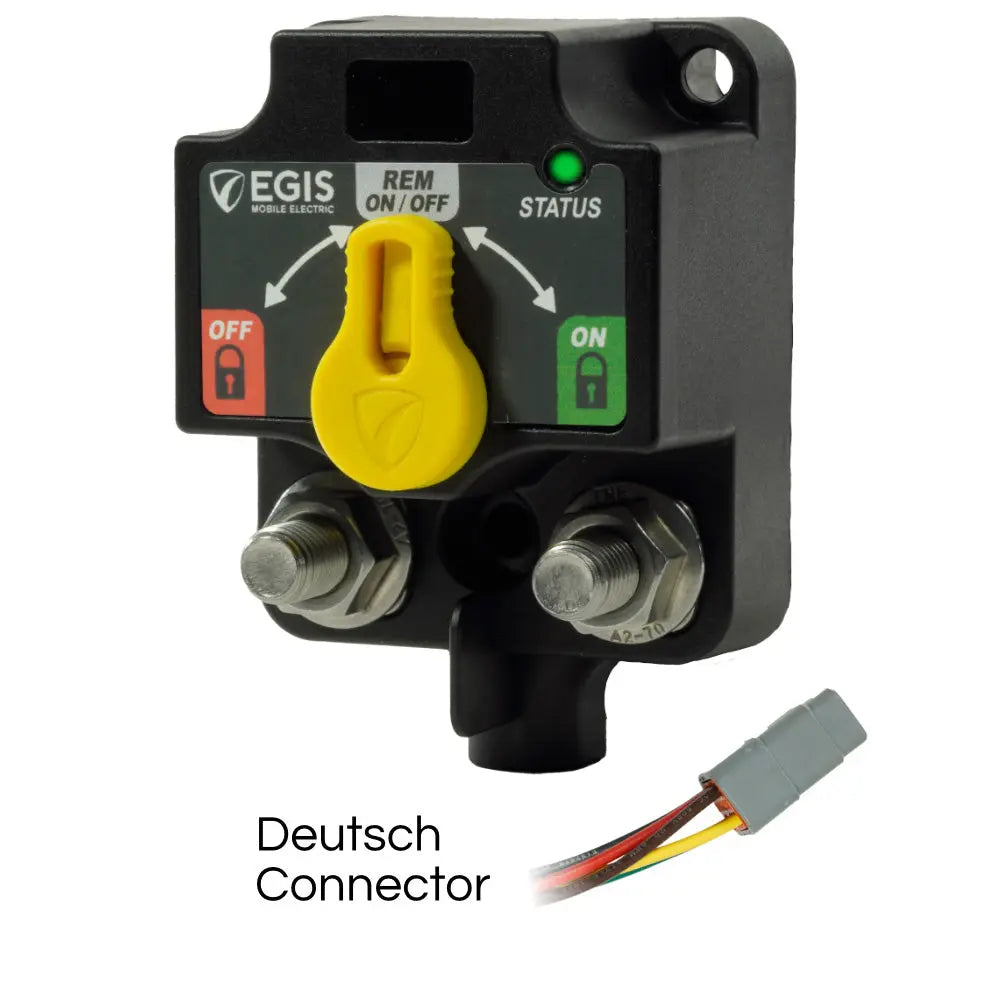

Egis Mobile Electric XD Series Single Flex 2 Relay-ACR with Knobs and DTM Connector

XD Series Single Flex 2 Relay-ACR with Knobs - DTM Connector

This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.

Applications:

• Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
• Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection

Features:

• Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware
• The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers
• Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual Override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR offers a compact and robust solution for modern electrical systems. Engineered with an advanced bi-stable solenoid design, this relay reduces mounting space and weight by up to 75%, making it ideal for applications where space efficiency is critical. Its expandable architecture allows seamless linking with additional relays through link and cross-link busbars, supporting configurations for 2 or 3 battery systems with standard busbar interconnects. This flexibility simplifies complex electrical installations, providing reliable performance across diverse vehicle and equipment setups. The relay's sealed IP67/IP6K9K construction ensures durability in harsh environments, with high-temperature electronics and stainless steel cable lug studs for corrosion resistance. The large mounting holes accommodate 1/4-20 or M6 hardware, facilitating versatile installation options. An intuitive manual control knob enables easy override, allowing operators to lock the relay in on or off positions, which enhances safety and operational awareness—an exclusive feature not commonly available on competing products. The relay is simple to program using dip switches, providing significant customization for OEMs and installers, and it maintains full plug-and-play compatibility with legacy products like Blue Sea ML series relays through DTM/ATM connectors. Its efficient design results in up to 95% less off-state current compared to similar solutions, reducing system power consumption. The device features a visible LED status indicator and a remote LED for real-time status monitoring, along with a protective cover that shields terminal studs and edges from accidental shorts. Included are a weatherproof circuit label sheet for easy identification and stainless hardware to withstand harsh conditions. The integrated Gortex vent ensures proper internal pressure regulation, preventing moisture ingress and prolonging device life. With a high continuous current capacity of 500 amps and a maximum cranking current of 1500 amps, this relay is suitable for demanding automotive and industrial applications. Its mechanical switching lifespan exceeds one million cycles, ensuring long-term reliability. Overall, the Egis XD Series Single Flex 2 Relay-ACR combines size efficiency, durability, and advanced features to meet the needs of modern electrical systems in challenging environments.

Features:

• Compact design reduces mounting space and weight by up to 75%

• Expandable architecture supports linking with additional relays for complex systems

• Sealed IP67/IP6K9K construction with high-temperature electronics for durability

• Stainless steel cable lug studs and hardware resist corrosion

• Intuitive manual override knob for easy operation and safety

• Simple dip switch programmability for versatile configurations

• Plug-and-play compatibility with Blue Sea ML series relays via DTM/ATM connectors

• High efficiency with up to 95% less off-state current

• Front-facing LED status indicator and remote LED for real-time monitoring

• Weatherproof circuit label sheet for easy identification

• Protective cover shields terminals from accidental shorts

• Integrated Gore-Tex vent prevents moisture ingress

• High continuous current capacity of 500 amps and 1500 amps cranking capacity

• Long mechanical lifespan exceeding one million cycles

• Designed for demanding automotive and industrial applications
