The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.

Applications:

• Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers.
• 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector)
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

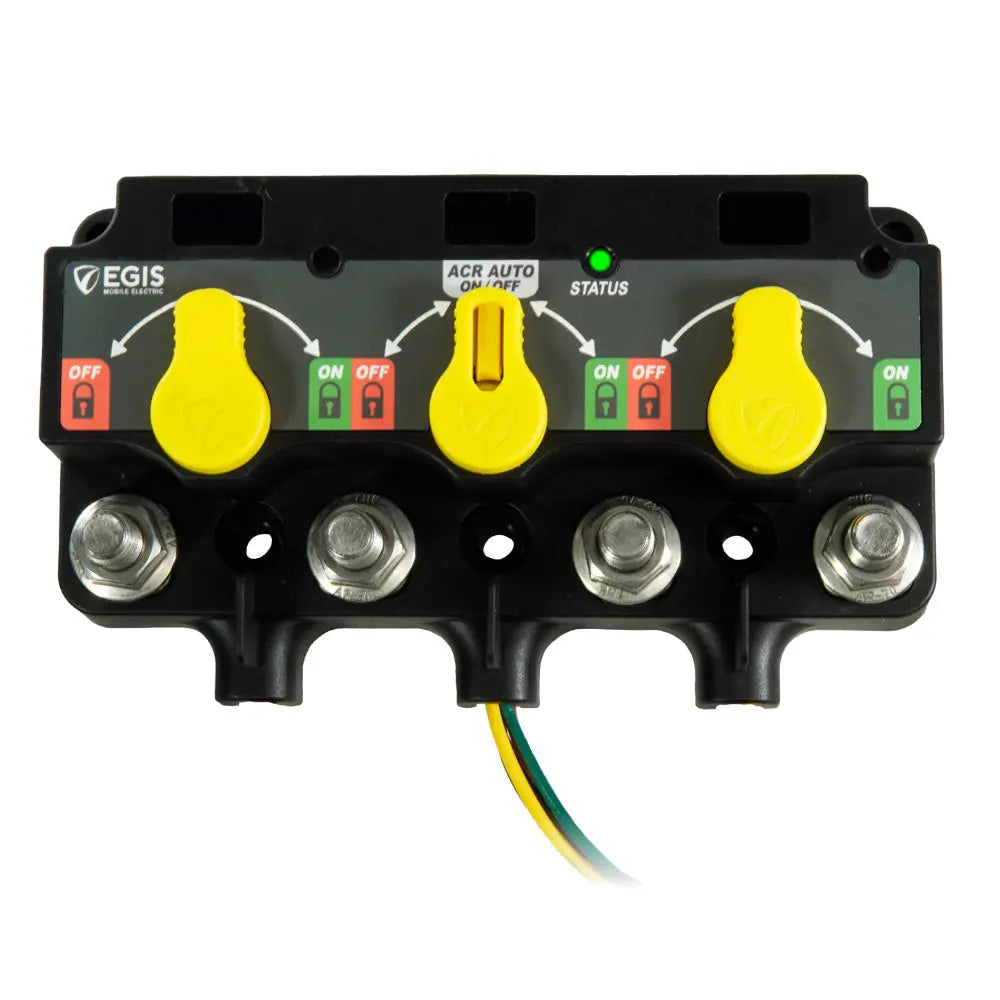

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis XD Series Triple Flex 2 Mechanical Switch (Part Number: 8830-1939) offers a compact and reliable solution for high-current switching applications. Designed to replace multiple relays, this module consolidates three high-amp relays into a single, space-saving unit, reducing installation complexity and eliminating the need for external link cables. Its sealed IP67/IP6K9K construction ensures durability in harsh environments, with high-temperature electronics and stainless steel cable lug studs that resist corrosion. The integrated Gortex vents help regulate internal pressure and prevent moisture ingress, ensuring long-term reliability.
This relay features an intuitive manual control with a three-position knob, allowing operators to easily override the system and lock relays in either the open or closed position. The front-facing LED indicator provides clear visual status updates, while a remote LED can replicate this signal for convenient monitoring. Programming is straightforward via dip switches, granting installers and OEMs flexibility to customize operation for specific applications. The relay supports expansion through link and cross-link busbars, accommodating up to four battery systems with standard interconnect accessories.
Offering a significant reduction in mounting space—up to 75%—and weight thanks to an advanced bi-stable solenoid design, the Egis XD Series Relay is ideal for space-constrained installations. It handles continuous currents up to 500 amps and can momentarily sustain cranking currents up to 1500 amps, making it suitable for demanding automotive and RV electrical systems. Its low off-state current draws just 1.3 mA, which is 90-95% less than comparable products, reducing power consumption and system load. Compatibility with legacy products via DTM connectors ensures seamless integration into existing systems, while the included circuit labels and protective cover enhance safety and ease of maintenance.
Overall, the Egis XD Series Triple Flex 2 Mechanical Switch combines rugged construction, flexible programming, and space-saving design to deliver a reliable, efficient, and user-friendly solution for complex battery and charge management systems in various vehicle applications.

Features:

• Bullet-proof construction with IP67/IP6K9K sealing for durability in harsh environments

• Intuitive manual override with a three-position knob for easy operation and lock-in control

• Front-facing LED status display with optional remote LED for real-time monitoring

• Simple programming via dip switches for flexible customization

• Compact design reduces mounting space and weight by up to 75% using advanced bi-stable solenoid technology

• Expandable with link and cross-link busbars supporting multi-battery systems

• High continuous current capacity of 500 amps and cranking surge up to 1500 amps

• Low off-state current draw of just 1.3 mA, significantly reducing system power consumption

• Compatible with legacy systems via DTM connector, supporting plug-and-play installation

• Includes weatherproof circuit labels and protective cover for safety and ease of maintenance

• Corrosion-resistant stainless steel hardware for long-term reliability

• Integrated Gortex vents to prevent moisture entry and regulate internal pressure
