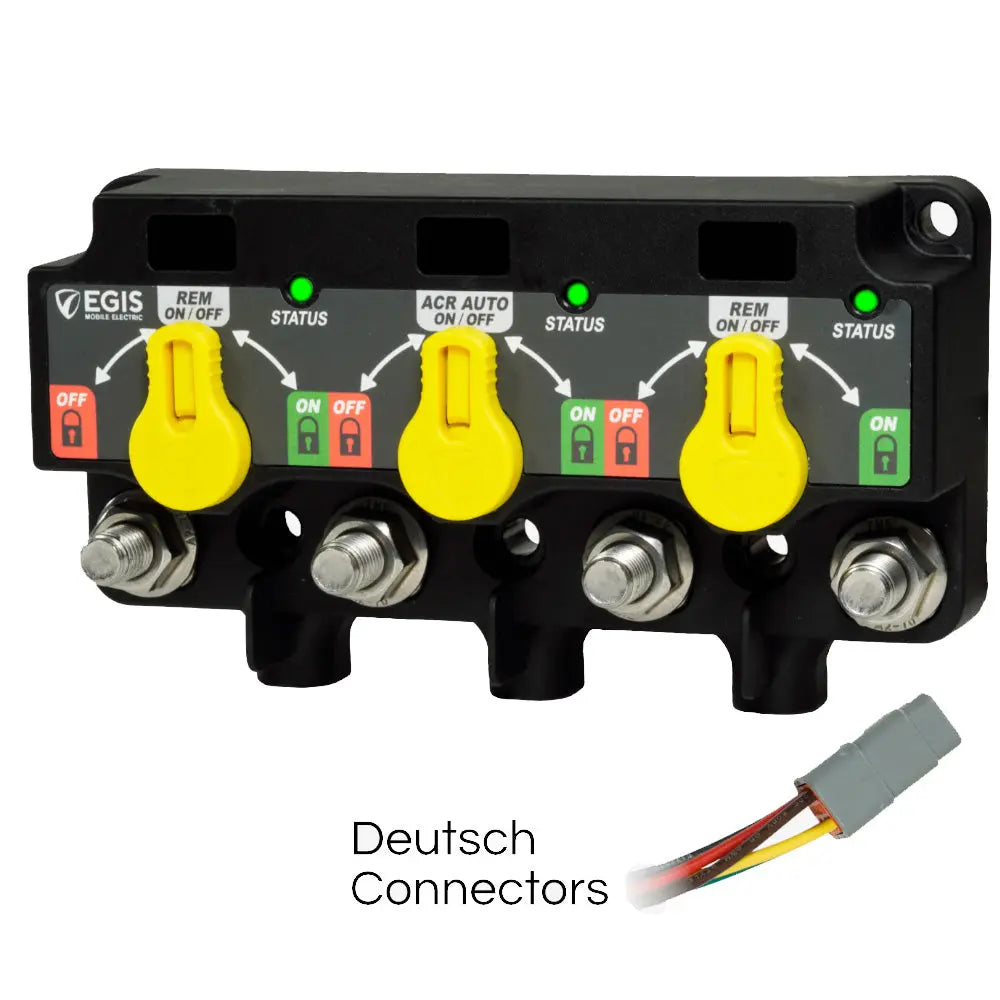

Egis Mobile Electric XD Series Triple Flex 2 Relay-ACR with Knobs and 3X DTM Connectors

XD Series Triple Flex 2 Relay-ACR-Relay with Knobs 3X DTM Connector

The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.

Applications:

• Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented
• Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories

Features:

• Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers.
• 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has 3x DTM connectors)
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis XD Series Triple Flex 2 Relay-ACR-Relay with Knobs and 3X DTM Connectors offers a compact and versatile solution for high-current switching and charge management in demanding applications. This innovative relay replaces three individual high-amp relays with a single, integrated module, significantly reducing installation space and simplifying wiring by eliminating external link cables. Its sealed construction, rated IP67/IP6K9K, allows for reliable operation in harsh environments, making it suitable for mounting in diverse locations without concern for moisture or dust ingress. The stainless steel cable lug studs and corrosion-resistant hardware ensure durability and long-term performance. The relay features a clear LED status display and a remote LED, providing real-time visual feedback on device status, while the intuitive three-position manual override allows users to lock relays in open or closed positions, enhancing operational control and safety. Programming via dip switches offers flexibility to customize relay functions, accommodating a wide range of OEM and installer requirements. The advanced bi-stable solenoid design reduces size and weight by 35-75%, freeing up valuable space within the vehicle or system. Compatibility with legacy products is seamless, with plug-and-play design supporting DTM connectors that match ML Series bi-stable relays. Its low off-state current, ranging from 1.3 mA to 3 A at 12-24 VDC, minimizes power draw when inactive, improving overall system efficiency. The relay supports a continuous current of 500 amps and a maximum cranking current of 1500 amps, making it suitable for heavy-duty applications. Additional features include a protective cover to prevent shorts, a comprehensive circuit label sheet for easy identification, and integrated Gortex vents to prevent moisture accumulation inside the enclosure. Designed to deliver reliable, high-performance switching in a compact footprint, the Egis XD Series Triple Flex 2 Relay is ideal for complex multi-battery systems, automatic charging, and load switching scenarios. Its rugged construction and flexible configuration options make it an essential component for professional vehicle, marine, and industrial power management systems.

Features:

• Sealed to IP67/IP6K9K for reliable operation in harsh environments

• Manual control with 3-position override for enhanced safety and operation

• Flexible programming via dip switches for custom applications

• Significant reduction in size and weight compared to traditional relays

• Plug-and-play compatibility with legacy systems and DTM connectors

• Low off-state current of 1.3 mA to 3 A at 12-24 VDC for system efficiency

• High continuous current rating of 500 amps and cranking up to 1500 amps

• Durable stainless steel hardware and corrosion-resistant components

• Integrated Gortex vents for moisture control and long-term reliability

• Visual LED status indicators for real-time device monitoring

• Includes protective cover and circuit label sheet for easy installation and maintenance
