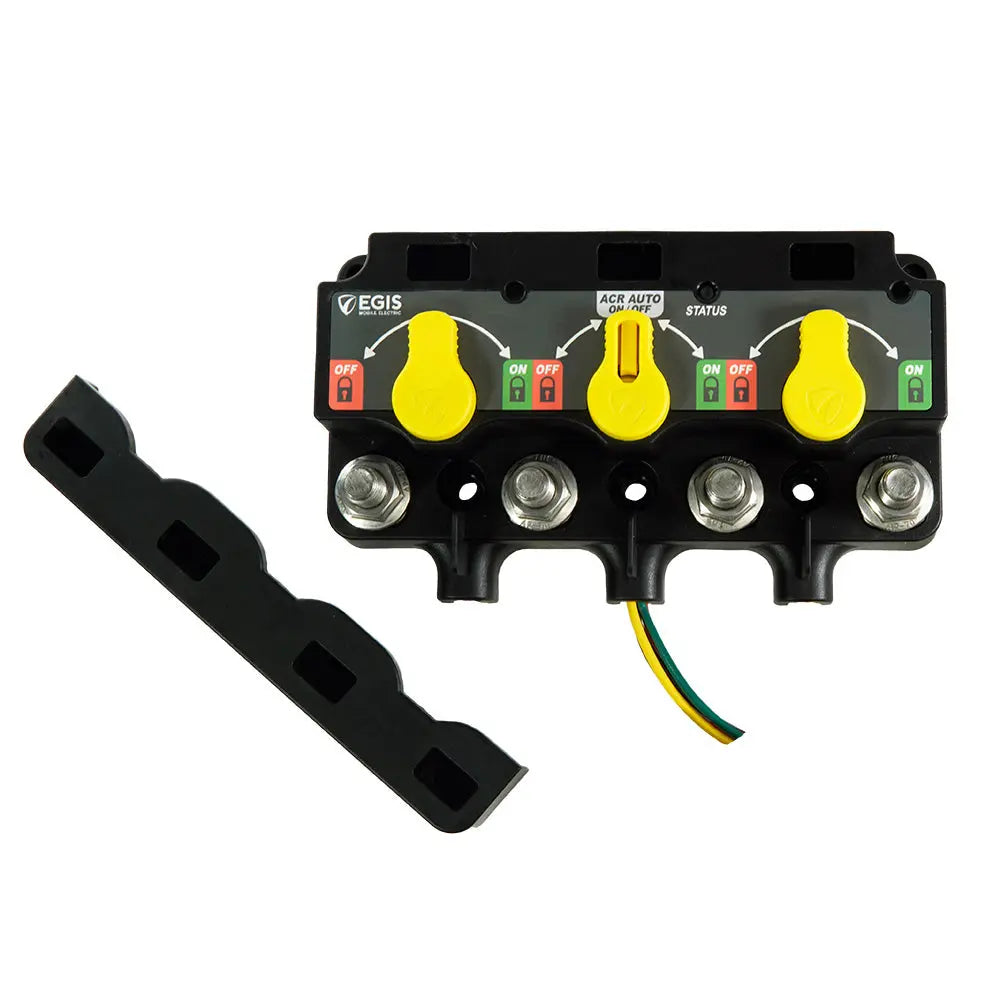

Egis Mobile Electric XD Series Triple Flex 2 Relay with Knobs - 12 P DT

XD Series Triple Flex 2 Relay/VSR/Relay with Knobs - 12 P DT

Applications/Problems This Solves

• Replaces three individual high-amp relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device:For 3-4 Battery Systems that require 2 or 3 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

The Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR/Relay with Knobs offers a compact, reliable solution for high-amp switching and battery management systems. Designed to replace three individual relays with a single, integrated module, it significantly reduces installation space, eliminates external link cable costs, and minimizes connection vibration risks. This module provides clear manual control operation, allowing users to easily override and monitor relay states, which enhances safety and operational clarity. Its robust construction, sealed to IP67/IP6K9K standards, ensures durability in harsh environments, with high-temperature electronics and stainless steel cable lug studs suitable for versatile mounting locations. The intuitive manual override feature, combined with simple dip switch programmability, allows for flexible configuration tailored to specific OEM or installer requirements, ensuring straightforward integration into existing systems. The advanced bi-stable solenoid design reduces mounting space by up to 75%, and the plug-and-play compatibility with legacy systems simplifies upgrades and replacements. The Egis XD Series supports expansion through link and cross-link busbars, enabling integration with additional dual, triple, or single relays for multi-battery systems involving 3 or 4 batteries. It also boasts a significant reduction in off-state current—up to 95% less than competing products—making it ideal for energy-efficient systems. Whether used for multi-battery switching, charge management, or automatic charging relay functions, this versatile module streamlines complex electrical setups into a single, manageable unit, improving system reliability and reducing overall complexity.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs for durability and versatile mounting.

• Intuitive manual control with clear indication of override and relay state, enhancing operational safety and awareness.

• Simple dip switch programmability offers flexible relay configuration for OEMs and installers.

• Advanced bi-stable solenoid design reduces mounting space by up to 75% and decreases product weight.

• Plug-and-play compatibility with legacy systems, including ML Series Bi-stable Relays, for seamless upgrades.

• Supports expansion via link and cross-link busbars for integrating additional relays in multi-battery systems.

• Reduces off-state current by up to 95%, improving energy efficiency in electronic systems.
