Egis Mobile Electric XD Series Triple Flex 2 Relay with Knobs and Tinned Wires – High-Current Multi-Battery Management System

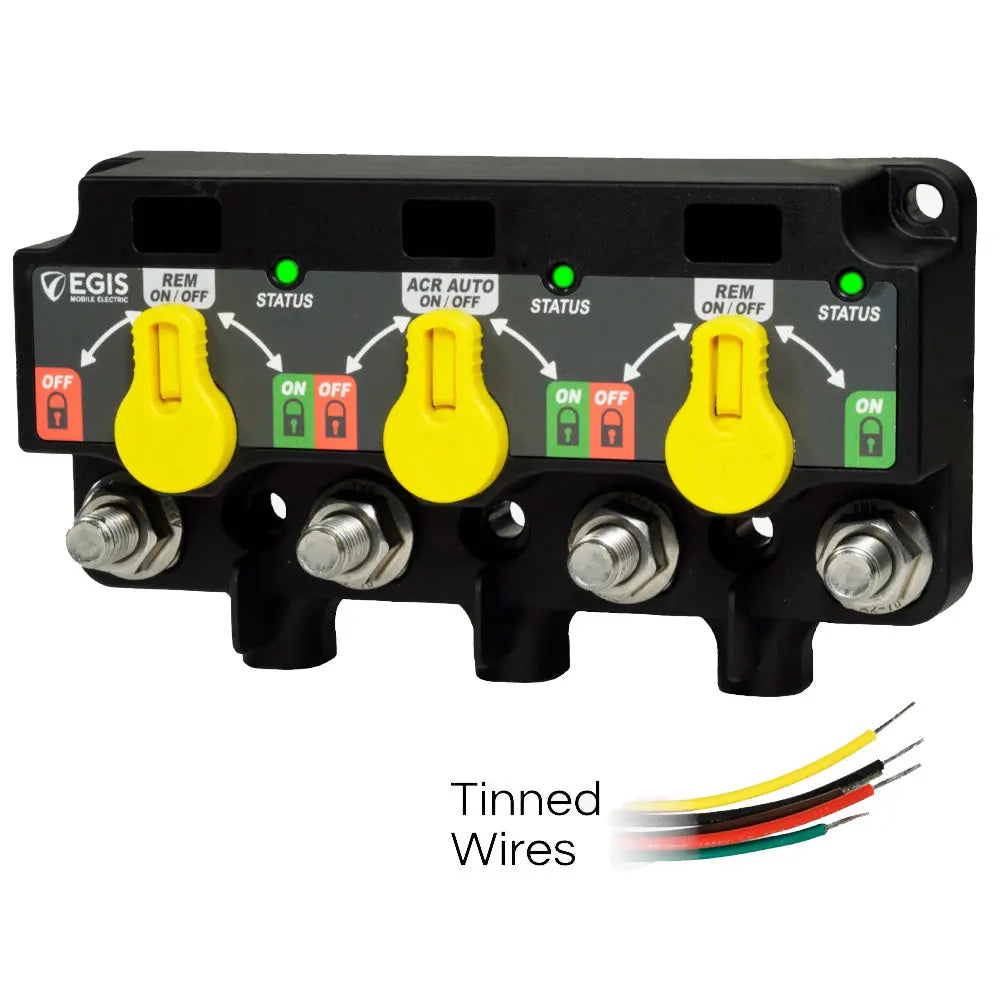

XD Series Triple Flex 2 Relay-ACR-Relay with Knobs Tinned Wires

The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.

Applications:

• Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented
• Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programming via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Series Triple Flex 2 Relay (Part Number 8730-1535) offers a compact, reliable solution for advanced multi-battery switching and charge management in demanding environments. This innovative relay combines three high-amp relays into a single, sealed module, significantly reducing installation space and eliminating the need for external link cables. Its robust construction is sealed to IP67/IP6K9K standards, allowing installation in harsh conditions without concern for moisture or dust ingress. Constructed with high-temperature electronics and stainless steel cable lug studs, the relay ensures durability and corrosion resistance. The design supports straightforward installation with large mounting holes accommodating 1/4-20 or M6 hardware while maintaining a lightweight profile, thanks to its advanced bi-stable solenoid design that reduces overall weight by up to 75%. The integrated vent featuring Gore-Tex technology helps regulate internal pressure and prevent moisture buildup, ensuring long-term reliable operation in extreme environments. The relay features an intuitive front-facing LED status indicator and a remote LED, providing clear visual status updates. Its 3-position manual override switch allows operators to lock relays in ON or OFF states or leave them unlocked for automatic operation, enhancing control and safety. Programming the device is simplified through dip switches located under a protective cover, offering OEMs and installers extensive flexibility to tailor functions to specific applications. The relay supports multiple expansion options with link and cross-link busbars, enabling seamless integration into 3- or 4-battery systems, including configurations requiring 2 or 3 automatic charge relays (ACRs). Designed for high-current applications, it handles continuous loads of up to 500 amps and cranking currents up to 1500 amps, with a mechanical switching lifespan exceeding one million cycles. The device's low off-state current draw of only 1.3 mA reduces parasitic loads, and its high-voltage capacity spans 8 to 36 VDC. The product includes a weatherproof circuit label sheet for easy identification and a protective cover to prevent accidental shorts. Compatible with legacy relays via DTM/ATM connector pins, the Egis XD Series Relay offers a space-efficient, durable, and flexible solution for complex battery management systems. Its features are ideal for off-road, marine, RV, and commercial vehicle applications where reliable, high-current switching and manual control are essential.

Features:

• Sealed to IP67/IP6K9K standards for durability in harsh environments

• Intuitive LED status indicators for easy monitoring

• 3-position manual override for reliable control and safety

• Includes weatherproof circuit label sheet for easy identification

• Corrosion-resistant stainless steel cable lug studs and hardware

• Programmable via dip switches for customized operation

• Compact design reduces space requirements by up to 75%

• Integrated Gore-Tex vent for moisture regulation

• Supports expansion with link and cross-link busbars for multi-battery systems

• High continuous current capacity of 500 amps and cranking up to 1500 amps

• Low power draw in off-state at just 1.3 mA

• High mechanical switch lifespan of over one million cycles

• Compatible with legacy relay systems using DTM/ATM connectors
