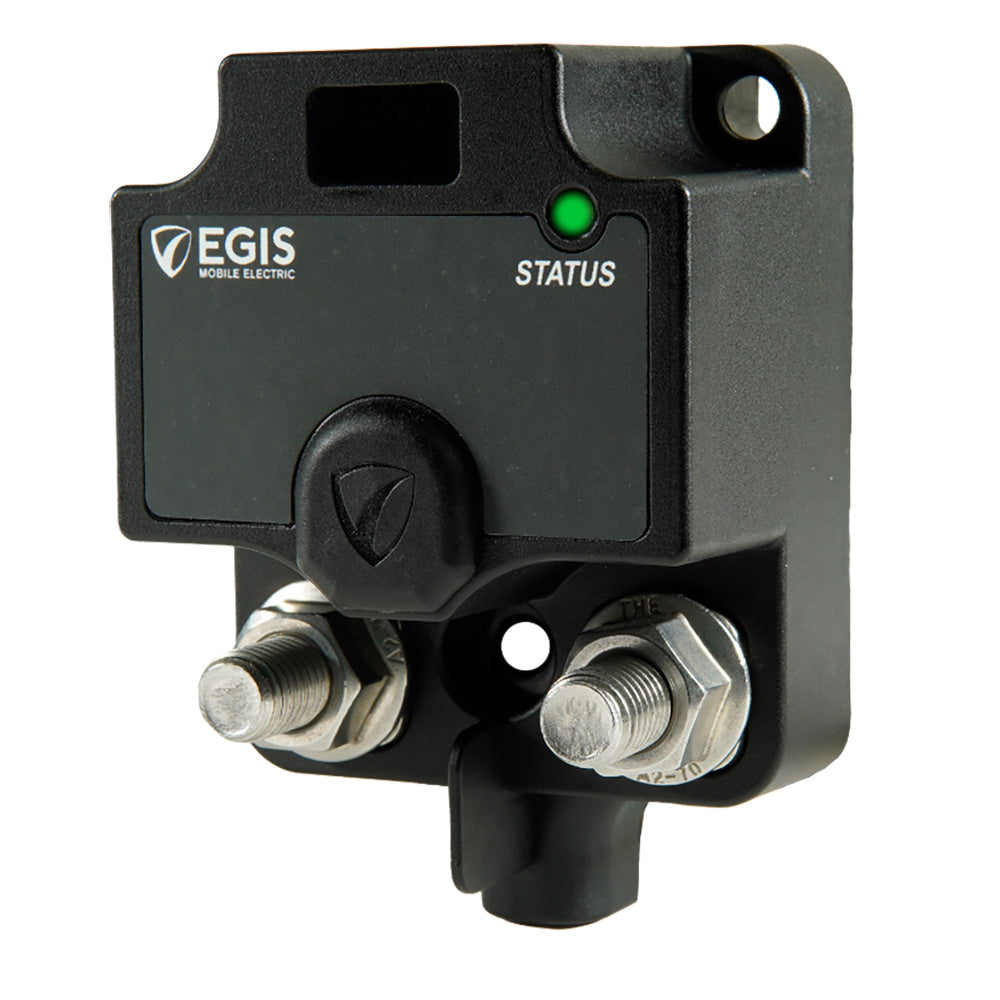

Egis Mobile Electric XD Single Low Voltage Disconnect without Knob - Tinned Wires

XD Single Low Voltage Disconnect without Knob - Tinned Wires

Features:

• Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay ON or OFF for Servicing
• Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal
• Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing
• LED Indicator Provides Helpful Diagnostics
• Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown

The Egis Mobile Electric XD Single Low Voltage Disconnect (Part Number 8710-1800) offers a reliable solution for protecting sensitive electrical systems from undervoltage conditions. Designed with a compact footprint, this relay supports continuous operation of up to 500 amps, making it suitable for high-current applications. Its tinned wire connections ensure excellent corrosion resistance and ease of installation, providing a durable interface for demanding environments. The disconnect features flexible functionality through dip switches, allowing customization of low voltage set points, delay off times, and voltage differential warnings to suit specific system requirements. It can be configured with or without an intuitive front-facing manual override knob, which can be locked in the ON or OFF position during servicing, enhancing safety and maintenance procedures. The inclusion of LED indicators offers real-time diagnostics, simplifying troubleshooting and system monitoring. Remote control inputs enable automatic or forced operation, allowing seamless integration with existing control systems. Additionally, a remote external warning alarm output alerts operators to impending voltage-based shutdowns, preventing unexpected system failures. Overall, the Egis XD Low Voltage Disconnect provides a versatile, high-capacity solution for managing voltage levels efficiently in various electrical applications, ensuring system safety and reliability.

Features:

• Supports up to 500 Amp continuous current per relay with a compact design.

• Available with or without a manual override knob that can be locked for safety during maintenance.

• Dip switch configurable settings for low voltage set-point, delay off time, and warning voltage differential.

• Remote inputs for ON/OFF/Auto control enable flexible system integration and automated operation.

• LED indicators provide clear diagnostics and status updates.

• Remote external warning alarm output signals impending voltage shutdown for proactive system management.
