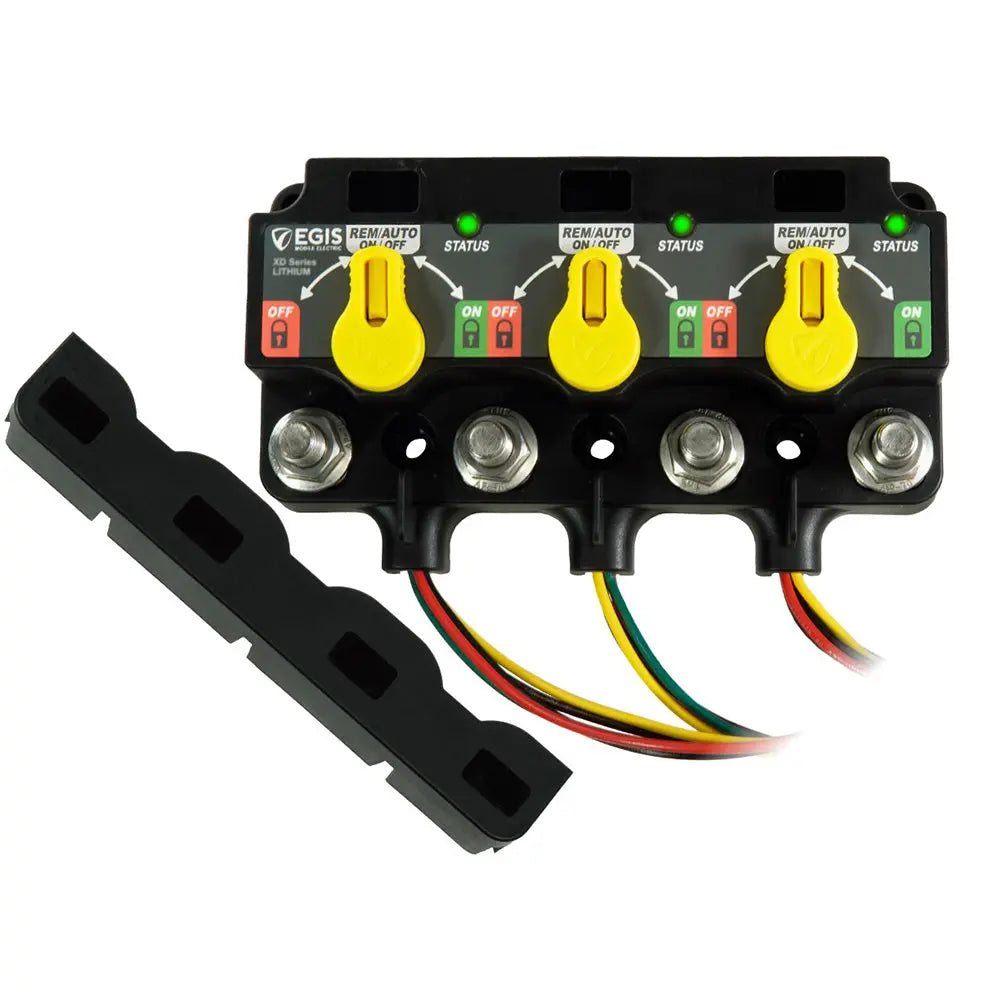

Egis Mobile Electric XD Triple Flex L Relay with Knobs and Tinned Wires - Part 8530-1535

XD Triple Flex L (Relay) - (ACR) - (Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Triple Flex L Relay (Part Number 8530-1535) is a high-performance switching device designed specifically for lithium-based battery systems including Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate. Its advanced features allow for precise charge and discharge voltage control, making it suitable for demanding applications where higher voltage settings are necessary. This relay offers a continuous current capacity of 500 amps per relay, ensuring reliable power management in critical systems while maintaining an extremely compact footprint for easy installation in space-constrained environments. The relay is available with or without manual override knobs, which provide intuitive control and the ability to lock the relay in ON or OFF positions for maintenance or safety purposes. Its flexible functionality is enabled through DIP switches, allowing the relay to serve as a Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect, adaptable to various system requirements. Remote control inputs for ON/OFF/Auto modes further enhance operational versatility, enabling automatic or forced relay states based on voltage sensing. Local and remote LED indicators give clear visual status updates, and a mechanical-only battery switch option supports simple control for one or multiple relay positions. Constructed with sealed, IP67/IP6K9K-rated materials, this relay is built to withstand harsh environments with high-temperature electronics and stainless steel cable lug studs. Larger mounting holes accommodate 1/4-20 or M6 hardware, facilitating secure installation. The intuitive manual control simplifies operation, providing clear feedback on manual override states, which is a feature not commonly available in competing products. Easy programming via DIP switches allows OEMs and installers to customize each relay's functionality efficiently, reducing setup time. The innovative bi-stable solenoid design and multiple solenoid assemblies enable a 35-75% reduction in mounting space and weight compared to traditional layouts, contributing to overall system compactness. Compatibility with legacy products ensures seamless integration with existing systems, offering plug-and-play options with DTM/ATM connectors and pin-for-pin compatibility with ML Series Bi-stable Relays. The Egis XD Triple Flex L relay also features an industry-leading 90-95% reduction in off-state current, optimizing energy efficiency. Backed by a four-year warranty, this relay provides durable, reliable performance for demanding electrical systems in various industrial and vehicle applications.

Features:

• Sealed to IP67/IP6K9K with high-temperature electronics and stainless steel cable lug studs for durability in harsh environments

• Manual override knobs with lockable ON/OFF positions for safety and maintenance, not available in competitive solutions

• Easy-to-program DIP switches enable flexible relay functions, ideal for OEM customization

• Compact design with 35-75% space and weight savings thanks to advanced bi-stable solenoid technology

• Plug-and-play compatibility with legacy systems using DTM/ATM connectors, ensuring seamless integration

• High efficiency with 90-95% less off-state current compared to similar products

• Local and remote LED indicators provide real-time status updates for reliable operation

• Mechanical-only battery switch option supports control of single or multiple relay positions

• Designed for lithium battery systems requiring higher charge/discharge voltage settings

• Industry-leading 4-year warranty guarantees long-term performance and reliability
