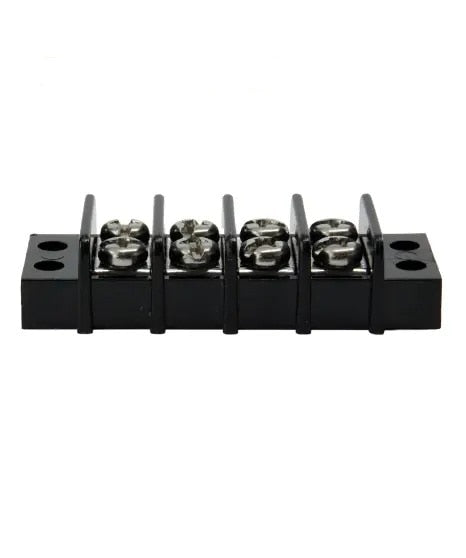

Egis Mobile Electronics EGIS Terminal Block 20A - 4 Circuit Retail Pack

The Egis Mobile Electronics EGIS Terminal Block 20A - 4 Circuit Retail Pack is designed for reliable electrical connections in various applications. This terminal block supports 125 Volt AC or DC systems, making it suitable for 12, 24, 36, and 48 VDC setups, as well as standard 120/240 VAC power systems. Its versatile voltage rating ensures compatibility across a wide range of electrical environments, provided all applicable safety standards are met. Built with marine-grade materials, this terminal block offers durability and resistance to harsh conditions, making it ideal for both commercial and recreational applications. The high temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware collectively ensure long-lasting performance and corrosion resistance. The unit's anti-rotation ribs on conductor strips help prevent wire terminal rotation, especially when strain relief distances are extended, enhancing installation security. The high insulation walls safeguard ring terminal splices from shorting to adjacent circuits or ground, providing an added layer of electrical safety. Featuring four pairs of screw terminal connection points, each with a dedicated input and output connected via copper alloy bus bars, this terminal block simplifies complex wiring configurations. Available in configurations with 2, 4, 6, 8, 10, or 12 connection pairs, it offers flexibility for different circuit requirements. The robust construction and marine-grade materials increase reliability in demanding environments, ensuring long-term operation. With a continuous current capacity of 20 amps and a maximum voltage of 240 volts, this terminal block meets essential electrical standards. The dielectric strength of 2000Vac and stainless steel hardware further enhance durability and safety. Egis Mobile Electronics backs this product with a four-year warranty, demonstrating confidence in its performance and longevity. This terminal block is an essential component for safely managing multiple electrical connections in both industrial and marine systems, offering a combination of versatility, durability, and safety features.

Features:

• Supports 125 Volt AC/DC systems, ideal for 12V to 48V DC and 120/240V AC applications

• Anti-rotation ribs on conductor strips reduce wire terminal rotation during installation

• High insulation walls protect ring terminal splices from short circuits or grounding issues

• Constructed with high temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware for durability

• Marine-grade materials ensure long-lasting reliability in harsh environments

• Four pairs of screw terminal connections with copper alloy bus bars for organized wiring

• Available in multiple configurations with 2, 4, 6, 8, 10, or 12 connection pairs

• Maximum voltage of 240V and continuous current of 20A for versatile electrical use

• Dielectric strength of 2000Vac and corrosion-resistant hardware enhance safety and longevity

• Covered by a four-year warranty, providing confidence in long-term performance
