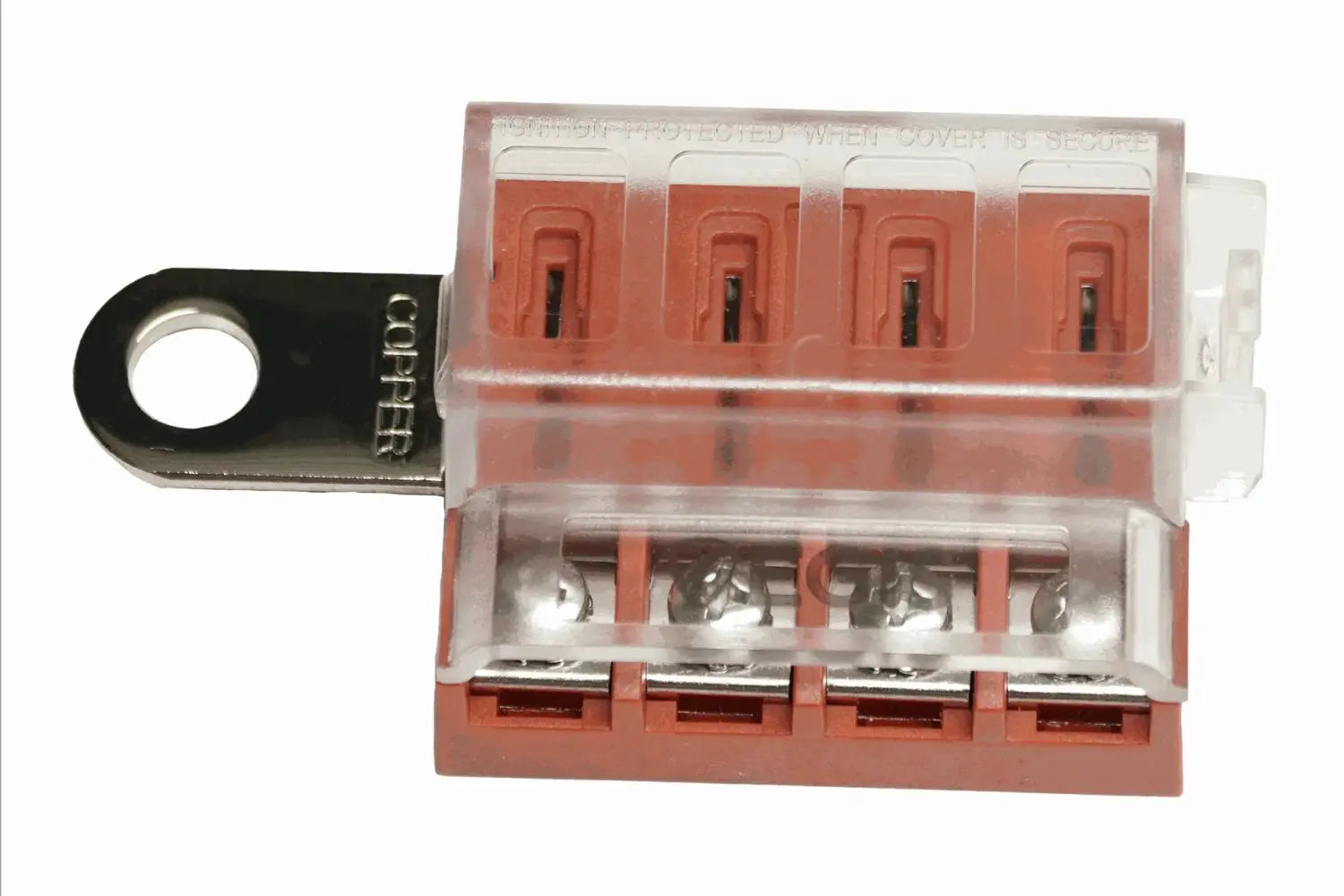

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

EGIS RT Battery Terminal Mount Fuse Block 4 Circuit

EGIS Marine RT battery Terminal Mount Fuse Block - 4 Circuit

• Compact battery terminal mount inline 4 position fuse block has single side wire entry for tight installations spaces.


• Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options


• Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.


• Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.


• Supports SAE Circuit Protection Standards for thermal/short circuit events.


• Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification


• Circuit identification labels included for easy circuit/fuse diagnosis.

CONTINUOUS CURRENT Per Circuit (AMPS)
30

Maximum Current (Entire Block) Amps
100

Nominal Voltage
12/24Vdc

MAX VOLTAGE (VDC)
60

Hardware Material
Stainless Steel

Input Terminal Size
M5-0.8

What's in the Box:

• 8023 4-Circuit Fuse Block


• Circuit identification labels
