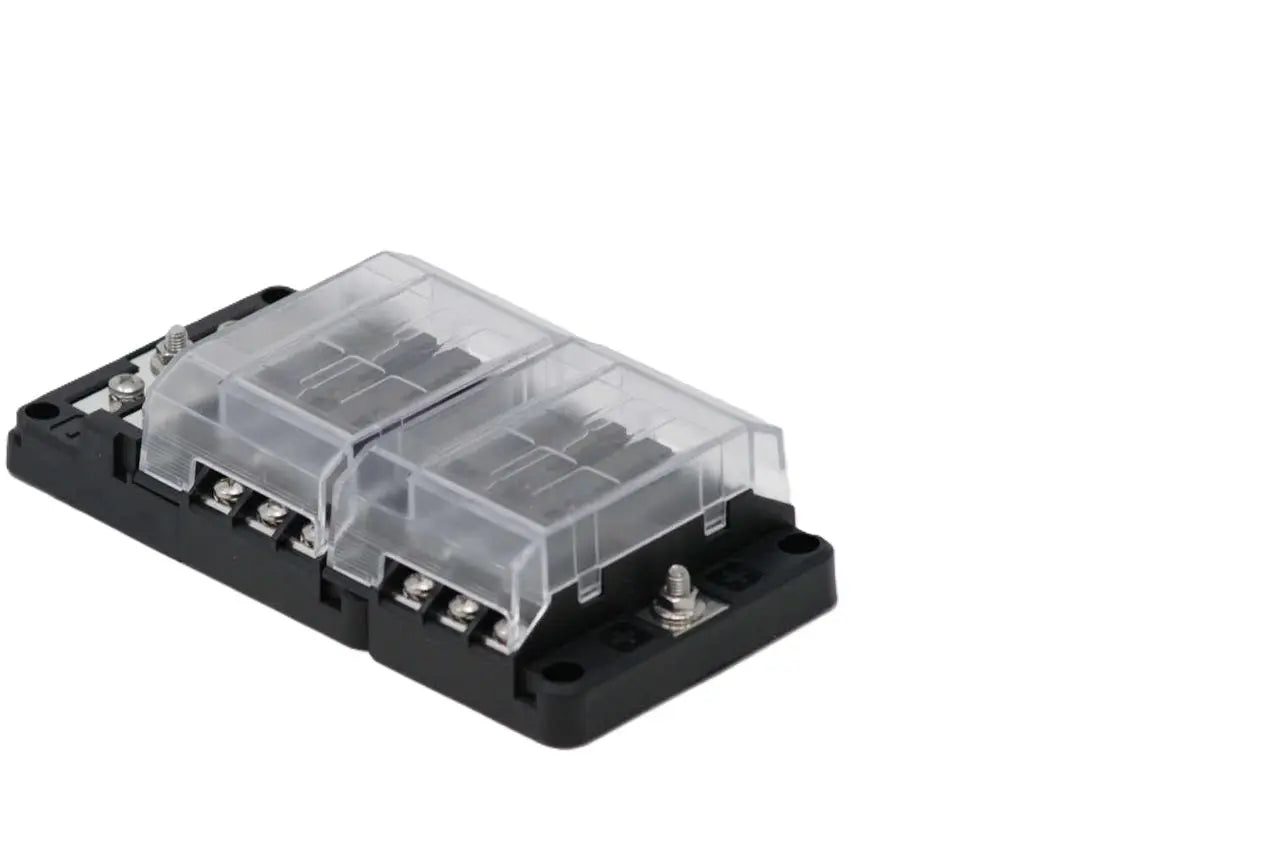

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication

Explore the Features of the EGIS RT Fuse Block 12 Circuit

EGIS RT Fuse Block 12 Circuit with Ground and LED Indication

Model: 8026

• Spare Fuse Locations Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.
• Stainless Steel Self-Locking Hardware 100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.
• LED Fuse Diagnostics Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.
• Cover/ Label Recesses Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• Ground Block Included Includes 12 position ground return block with multi level low amp terminal screws for improved mounting.
• Ground Block Separates Ground block section optionally separates from fuse block section affording increased deployment options for challenging installations.

Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

Supports SAE Circuit Protection Standards for thermal/short circuit events.

Specifications

Max Current - Entire Block (Amps)
10

MAX CURRENT - Per Circuit (AMPS)
30

MAx Output Wire Size
#10 AWG

VOLTAGE RANGE (V DC)
0-36

Number of Fuse Positions
12

Compatible Fuse Types
ATO / ATC / ATF

Reliable Circuit Protection with EGIS Technology

The EGIS RT Fuse Block is engineered to provide dependable circuit protection for systems requiring 12 circuits. Built with precision, the fuse block ensures each circuit is safely covered, preventing electrical failures and potential damage. The EGIS brand stands for quality and consistency, making this fuse block an ideal choice for automotive and industrial use. With solid construction and premium materials, it guarantees long-lasting performance even under demanding conditions.

Convenient Ground and LED Indication Features

This fuse block offers a practical grounded design that enables safe electrical connections and improves system stability. Additionally, the built-in LED indicators provide instant visual feedback on circuit status, making it easy to identify blown fuses without the need for complex diagnostics. The LEDs enhance troubleshooting efficiency, saving time and reducing downtime for maintenance tasks. These features reflect EGIS’s commitment to user-friendly and innovative electrical solutions.

Versatile Applications and Easy Installation

Designed for versatility, the EGIS RT Fuse Block suits various applications including automotive wiring, marine projects, and industrial equipment. Its compact and organized layout simplifies wiring management, while standard terminal connections allow quick installation without specialized tools. Whether for new builds or retrofits, this fuse block helps professionals maintain clean and safe electrical systems. The combination of practicality and quality makes the EGIS fuse block a reliable component for your electrical protection needs.
