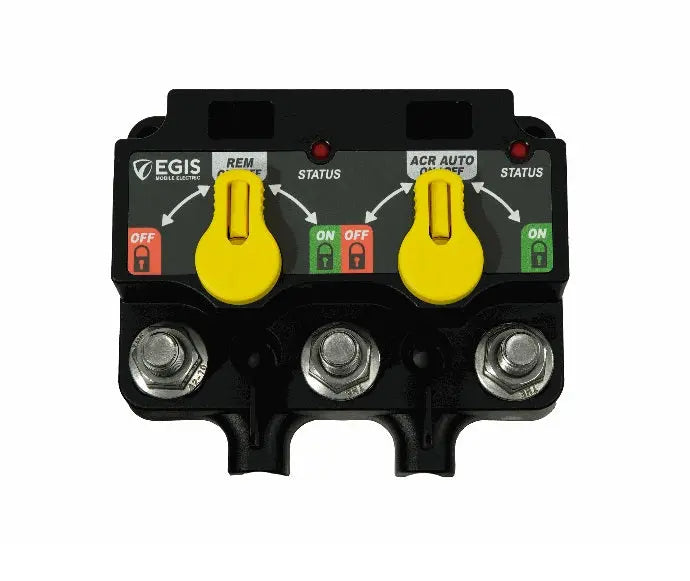

EGIS XD Dual Flex 2 Automatic Charging Relay with Knobs Tinned Wires

EGIS XD Dual Flex 2 Automatic Charging Relay: Efficient Battery Management

EGIS XD Dual Flex 2 Automatic Charging Relay with Knobs Tinned Wires

Model: 8720-1550

• LED STATUS DISPLAY: Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
• 3-POSITION MANUAL OVERRIDE: Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
• 40 CIRCUIT LABEL SHEET INCLUDED: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
• PROTECTIVE COVER INCLUDED: Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• STAINLESS HARDWARE: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
• PROGRAMMABLE: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
• SMALLER FOOTPRINT: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
• INTEGRATED VENT: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications

TOTAL CONTINUOUS CURRENT (AMPS)
500

MAX CRANKING CURRENT (AMPS)
1500

MECHANICAL SWITCHING LIFE
1,000,000 Cycles

VOLTAGE RANGE (V DC)
8 - 36

OFF-STATE CURRENT DRAW (mA)
1.3

STATE CHANGE CURRENT
5A @ 12 Vdc 3A @ 24 Vdc

Overview of EGIS XD Dual Flex 2 Relay

The EGIS XD Dual Flex 2 Automatic Charging Relay is designed to provide superior battery management capabilities for various applications. This relay automatically connects and disconnects batteries based on their voltage, ensuring efficient charging while preventing overcharging and deep discharge. Equipped with durable knobs and premium tinned wires, the relay offers ease of use and enhanced electrical conductivity. Its robust construction guarantees long-term reliability even in demanding environments, making the EGIS XD Dual Flex 2 an optimal choice for both professional and personal battery systems.

Key Features and Benefits

Featuring intuitive control knobs, the EGIS XD Dual Flex 2 offers straightforward adjustment and operation. The inclusion of tinned wires significantly improves resistance to corrosion, which is vital for maintaining consistent electrical performance over time. This automatic charging relay supports dual battery systems, providing seamless switching between batteries to optimize power availability. Additionally, its precise voltage sensing mechanism ensures batteries charge efficiently without unnecessary power loss, extending the lifespan of connected batteries and minimizing maintenance needs.

Applications and Use Cases

The EGIS XD Dual Flex 2 Automatic Charging Relay is ideal for marine, automotive, and renewable energy systems where reliable battery management is crucial. Its automatic operation reduces manual intervention, making it a preferred accessory for RVs, boats, and off-grid solar installations. By effectively balancing battery charge cycles, this relay enhances system stability and prevents damage caused by voltage imbalances. Users seeking a durable, easy-to-install, and efficient solution for maintaining battery health will find the EGIS XD Dual Flex 2 a valuable component for their power management setup.
