B200 Class B AIS Transceiver - 5W SOTDMA with Battery Backup
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
Click here to download form.

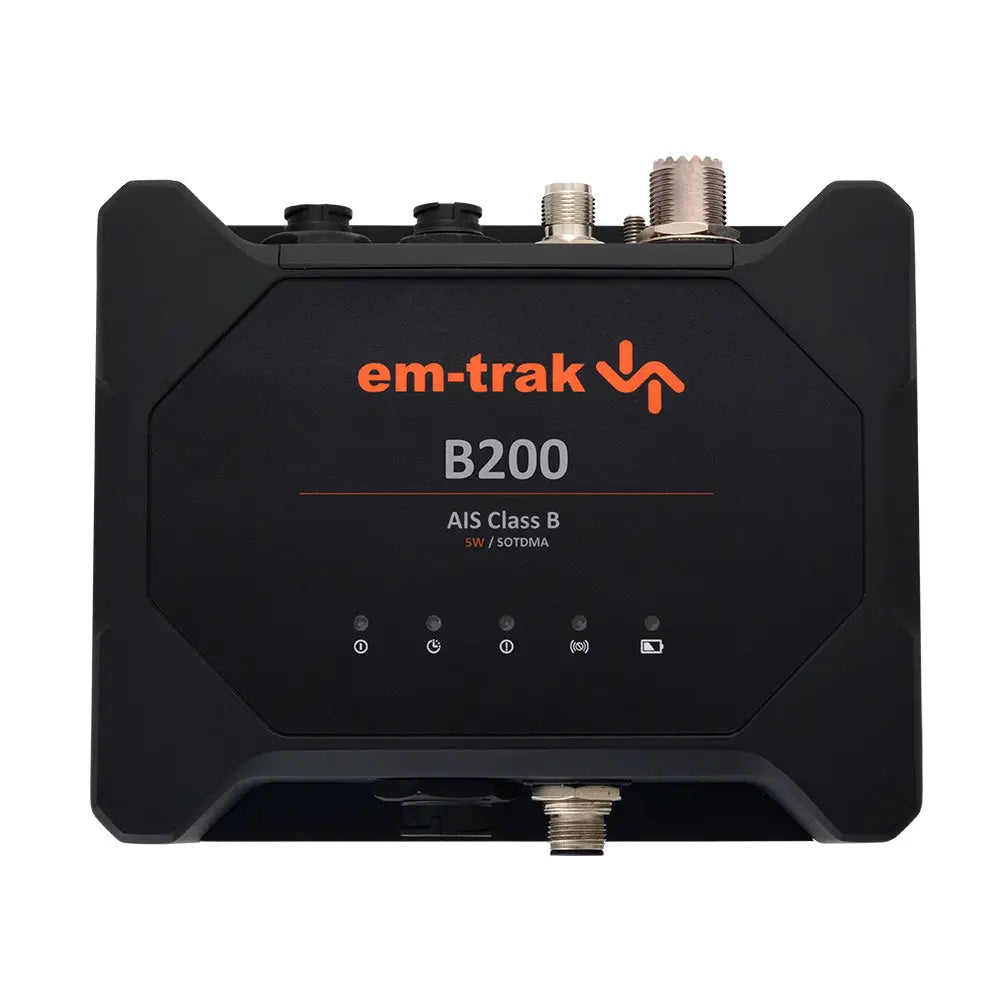

The em-trak B200 is a high transmit power (5W) priority AIS Class B transceiver specifically designed for serious ocean sailors, offering enhanced safety through maximum range and transmission priority.
The high-powered, advanced AIS engine provides the reliability you can depend on and the very best AIS performance in its class. Completely water and weatherproof (IPx6 IPx7 certified), and ruggedized to withstand shock and vibration, the B200 has been extensively tested in the most extreme marine environments and will provide years of maintenance-free operation. The dual NMEA2000 0183, coupled with serial ports, USB, Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.
Peace of mind is further enhanced with an internal battery that ensures continuous operation for up to 120 hours in the event of total power loss. The B200 also supports silent mode, where transmissions are switched off, but receiving continues, and can be enabled through the integrated switch.
Features:
- Certified AIS Class B 5W SOTDMA
- Ruggedized and impervious to extreme environments water (IPx6, IPx7), damp, shock, vibration, temperatures
- Internal battery back-up for up to 120hrs operation charge is automatically maintained by primary vessel power and automatically switches to the battery if lost
- Wi-Fi Bluetooth wireless connectivity
- High performance latest generation GPS
- NMEA0183 NMEA2000
- Low power consumption
- Anti-tamper protection
- Enhanced RF screening to protect against electromagnetic interference
- Built-in power surge protection
Physical Environmental Specifications:
- Size (w x h x d): 170 x 140 x 69mm
- Weight: 695g
- Operating temperature: 25C to +55C
- Storage temperature: -25C to +70C
- Ingress protection IPx6 and IPx7
Electrical Specifications:
- Supply voltage: 12V or 24V DC
- Supply voltage range: 9.6V 31.2V DC
- Average current (at 12V): 240mA (1.6A when battery charging)
- Peak current: 3.85A
- Average power consumption (at 12V): 2.9W (19.2W when battery charging)
- Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
- Battery Capacity: 4600mAh
- Battery Type: 3.7V Li-Ion rechargeable
- Battery life (default operating conditions): 48 hours

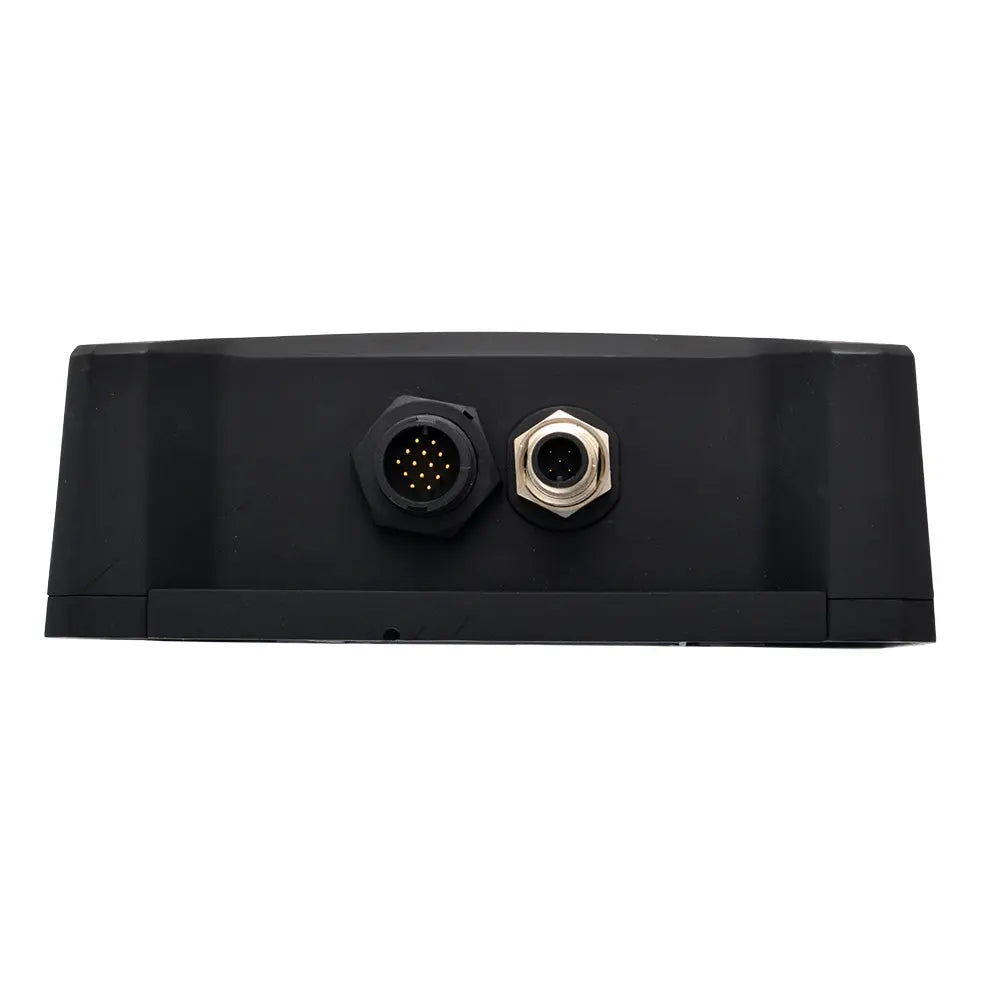

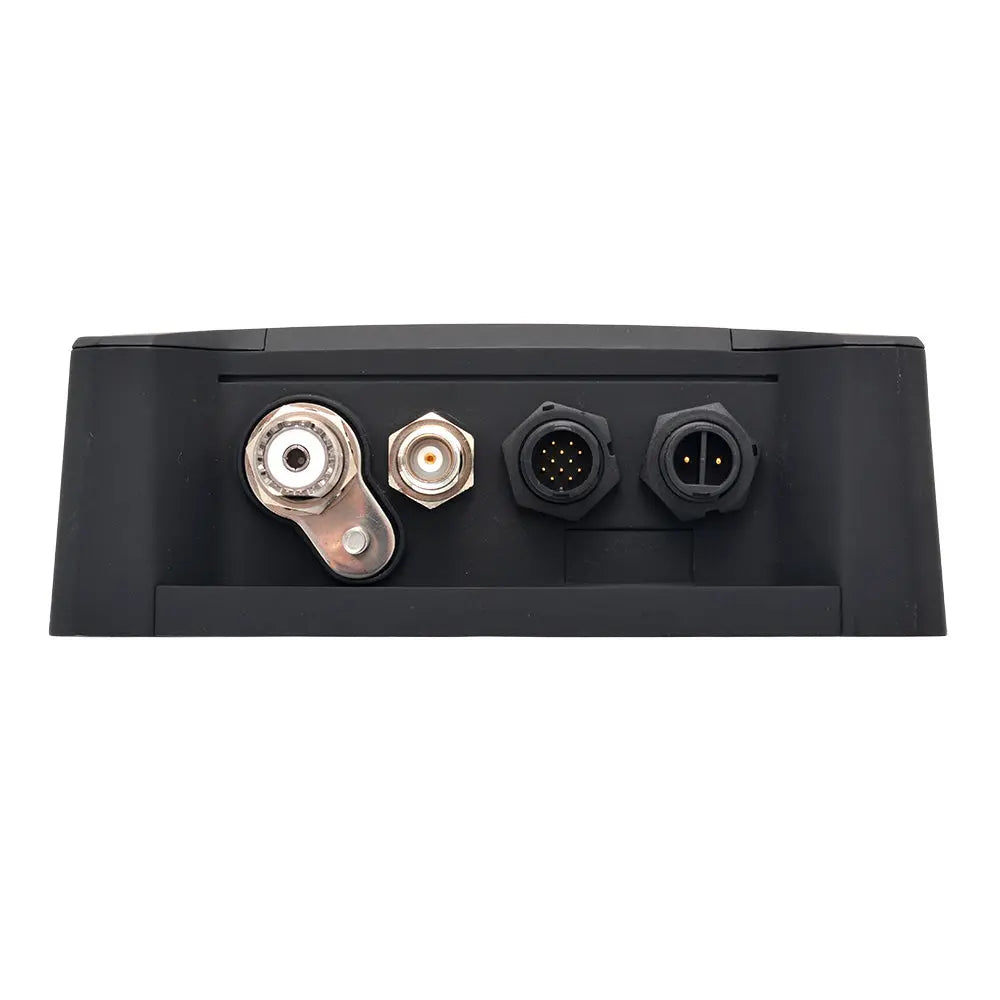

Connectors:
- VHF antenna: SO-239
- GNSS: TNC
- Power: 2-way circular multipole
- NMEA 0183/silent mode: 12-way circular multipole
- NMEA 2000: 5-way Micro-C connector
- USB: USB Micro-B
Data Interfaces:
- NMEA 0183: 2 x bi-directional ports
- NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
- USB: PC virtual com port for NMEA 0183 data
- Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
- Bluetooth: BT Classic 4.0, 7 concurrent connections
Standards Compliance:
- AIS standards: IEC 62287-2 Ed. 2. ITU-R M.1371.5
- Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
- Environmental standards: IEC 60945 Ed. 4
- Serial data interface standards: IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0
- NMEA 2000: NMEA 2000 Ed 3.101
- GNSS performance standards: IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0
GNSS:
- Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
- Channels: 72
- Internal/external antenna: External only
- Time to first fix from the cold start: 26s
VHF Transceiver:
- VDL access scheme: SOTDMA
- Operating frequency: 156.025MHz - 162.025MHz
- Channel bandwidth: 25kHz
- Receivers/transmitters: 2 x receivers, 1 x transmitter
- AIS receiver sensitivity (20% PER): -111dBm
- AIS transmitter power: 5W (+37dBm)
User Interface:
- Buttons: Integrated silent mode
- Indicators: Power, transmit timeout, error, silent mode
GNSS antenna
- Size: 85 x 70mm
- Weight: 470g
- Ingress Protection: IPx6 and IPx7
- Mounting: 1 inch 14 TPI pole mount required
- GNSS systems supported: GPS, GLONASS, Galileo, BeiDou
In the Box:
- 1 x AIS transceiver
- 2 x Anti-tamper locking plates
- 1 x Power cable (2M)
- 1 x Fixing pack
- 1 x Anti-tamper bracket
- 1 x Mounting template
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The em-trak B200 is a high-performance Class B AIS transceiver designed for serious ocean sailors and maritime professionals seeking maximum range and transmission priority. Featuring a powerful 5W SOTDMA transmitter, the B200 ensures reliable vessel identification and collision avoidance, even in challenging marine environments. Its advanced AIS engine delivers top-tier performance, making it an essential tool for safety-critical navigation. The device's ruggedized construction, with IPx6 and IPx7 water resistance ratings, along with shock and vibration resistance, guarantees durability in the most demanding conditions. Fully tested and certified, the B200 offers years of maintenance-free operation, providing peace of mind on extended voyages. Connectivity options include dual NMEA2000 and NMEA 0183 ports, USB, Wi-Fi, and Bluetooth, allowing seamless integration with various marine navigation and display systems. The internal rechargeable battery backup supports continuous operation for up to 120 hours during power outages, while silent mode enables receiving data without transmitting, enhancing operational flexibility. Designed with safety and convenience in mind, the B200 features anti-tamper protection, RF shielding against electromagnetic interference, and built-in power surge protection. Its comprehensive set of features, combined with robust environmental specifications, makes the em-trak B200 an ideal choice for professional and recreational mariners who demand reliability, connectivity, and durability in their AIS transceiver.
Features:
- Certified AIS Class B 5W SOTDMA for reliable vessel identification
- Ruggedized and weatherproof (IPx6, IPx7) to withstand extreme marine conditions
- Internal battery backup providing up to 120 hours of continuous operation during power loss
- Wireless connectivity via Wi-Fi and Bluetooth for easy integration with devices
- High-performance latest generation GPS for accurate positioning
- Multiple data interfaces including NMEA 0183, NMEA 2000, USB, and Wi-Fi
- Low power consumption for extended operation
- Anti-tamper protection to ensure device security
- Enhanced RF shielding to prevent electromagnetic interference
- Built-in power surge protection for added safety
