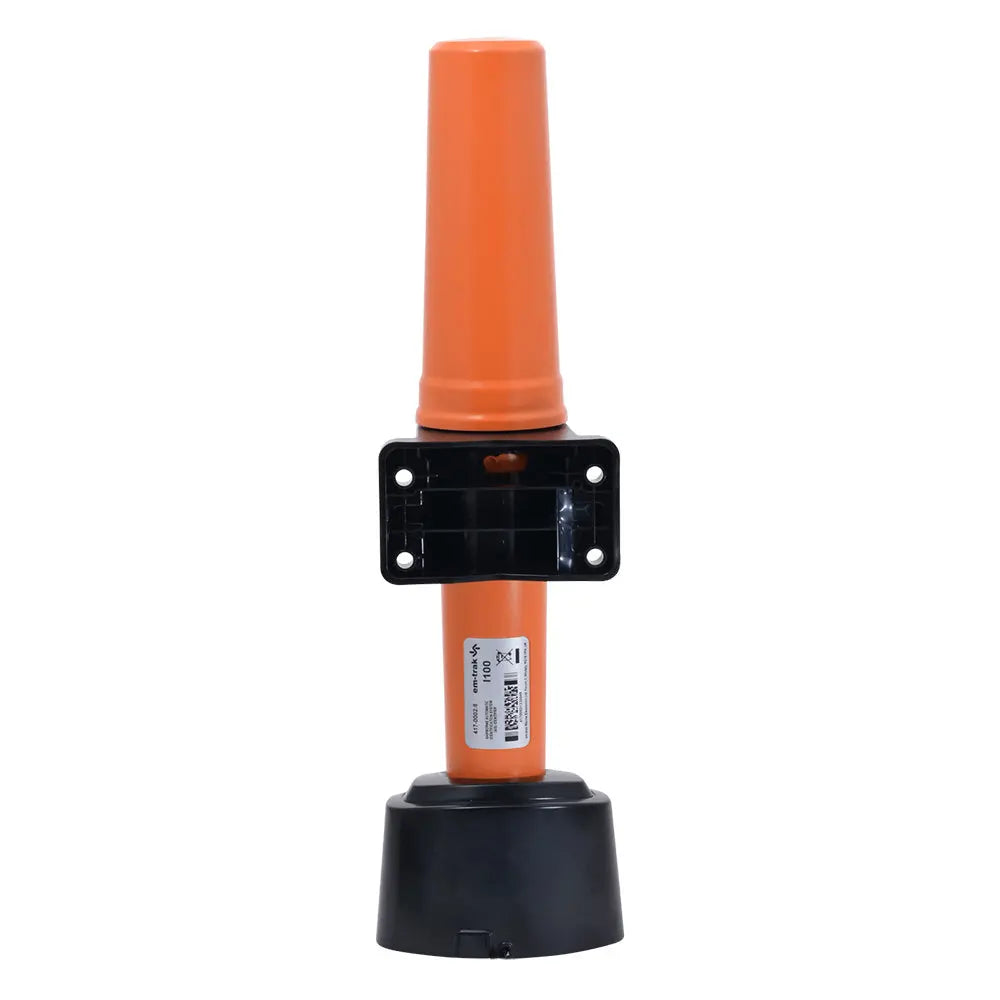

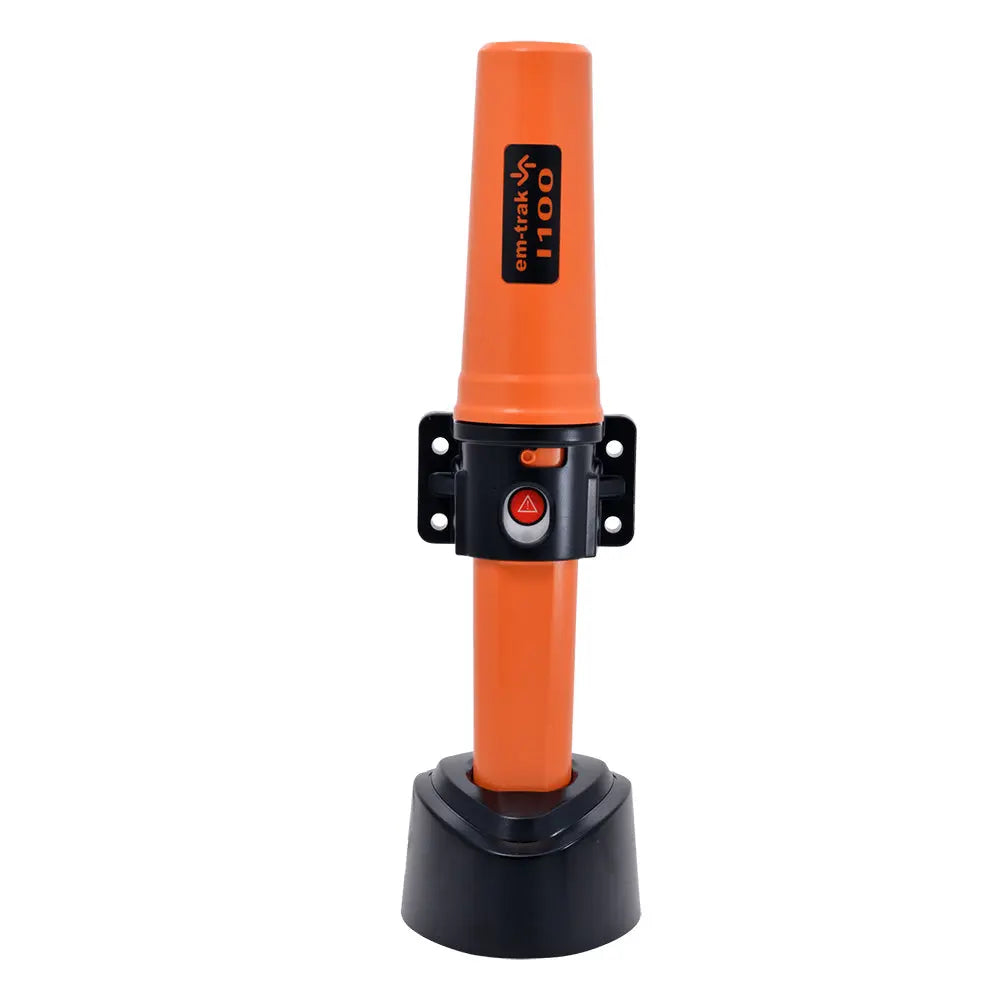

em-trak I100-X Small Vessel Tracker – Open Box, Never Programmed

I100-X Small Vessel Tracker - Open Box - Never Programmed

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owners signature on the completed programming form.**

Click here to download the form.

The Identifier I100-X is a rugged, fully self-contained AIS Class B vessel-tracking transponder, ideal for small-boat tracking and monitoring.

I100-X can power itself using its own internal rapid-recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source, such as an engine, battery, or solar, with the battery then acting as a backup.

I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

Features:

• Certified AIS Class B Transponder
• 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
• It takes only 5 hours to completely recharge
• Rugged IPX8 design ensures the operational performance

Physical Environmental Specifications:

• Size (H x W): 370 x 67 mm
• Weight: 355g
• Operating temperature: -25C to +55C
• Storage temperature: -25C to +70C
• Ingress protection: IPx8 (1.1m 30 mins)

Electrical Specifications:

• Battery Capacity: 2300mAh
• Battery Type: 3.7V Li-Ion rechargeable
• Battery Life (default operating conditions): 120 hours

Standards Compliance:

• AIS Standards: IEC 62287-1 Ed. 3. ITU-R M.1371.5
• Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• Environmental Standards: IEC 60945 Ed. 4
• GNSS Performance Standards: IEC 61108-1 Ed 2.0

GNSS:

• Systems Supported: GPS GLONASS
• Channels: 72
• Time to First Fix from Cold Start: 26s

VHF Transceiver:

• VDL Access Scheme: CSTDMA
• Operating Frequency: 156.025MHz 162.025MHz
• Channel Bandwidth: 25kHz
• Receivers / Transmitters: 1 x transmitter
• AIS Transmitter Power: 2W (33dBm radiated)

User Interface:

• Buttons: SOS
• Indicators: Status indicator

Charging Dock:

• Size (H x W x D): 110mm x 120mm x 78mm
• Weight: 360g
• Power Supply: 115V / 240V AC

Configuration Dock:

• Size (H x W x D): 110mm x 120mm x 78mm
• Weight: 360g
• Power Supply: 115V / 240V AC
• PC Interface: USB (cable supplied)

In the Box:

• 1 x Identifier
• 1 x Vessel Bracket and a Fixings Pack
• 1 x Charging Dock

*NOTE: You will also require a configuration dock product code: 417-0047. This is used to program the unit before deployment.

The em-trak I100-X is a rugged, self-contained AIS Class B vessel tracking transponder designed for small boats and maritime monitoring. This open-box unit has never been programmed and offers reliable performance in harsh environments, making it ideal for vessel owners seeking a durable tracking solution. It features a compact design with weatherproof (IPx8 certified) construction, ensuring operation in extreme heat, cold, humidity, and vibrations. The I100-X can power itself using an internal rechargeable battery providing over five days of continuous operation or connect directly to onboard power sources such as the engine, battery, or solar panels, with the internal battery serving as a backup. Included in the package are the transponder, mounting bracket, and a rapid charging dock, with additional accessories available for enhanced functionality.

Designed to meet strict standards, the I100-X complies with IEC 62287-1 Ed. 3, ITU-R M.1371.5, and EN60950-1 safety standards, ensuring regulatory adherence and safety in maritime environments. Its GNSS system supports both GPS and GLONASS signals, with a fast 26-second time-to-first-fix from a cold start, ensuring quick location updates. The VHF transceiver operates on frequencies of 156.025MHz and 162.025MHz, utilizing CSTDMA for VDL access, transmitting at 2W power for reliable communication. The device features easy-to-use buttons and status indicators for straightforward operation, making it suitable for vessel monitoring and safety.

The I100-X’s internal 2300mAh Li-Ion rechargeable battery allows up to 120 hours of operation on a single charge, with a quick five-hour recharge time. Its compact size and lightweight design make installation flexible, whether mounted on a small boat or integrated into larger vessel systems. The included charging and configuration docks facilitate maintenance and setup, with a USB interface for easy programming. The robust construction and high standards compliance make the I100-X a dependable choice for maritime tracking needs, providing peace of mind and vessel security in demanding environments.

Note that the unit must be programmed by a qualified technician using the provided configuration dock and form, which can be downloaded online. The package contains the transponder, vessel mounting bracket, and charging dock. Additional accessories such as power cables and alert indicators are available to customize your installation. For optimal performance and compliance, ensure the unit is programmed before deployment, and consult the manufacturer for support or further customization options.

Features:

• Certified AIS Class B transponder for vessel tracking

• Over five days of continuous operation from internal battery or connect to onboard power sources

• Rapid recharge time of approximately 5 hours

• Weatherproof (IPx8) rugged design suitable for harsh maritime environments
